Скачать или смотреть California Air Tools 4 HP 20 Gallon Ultra Quiet and Oil-Free Air Compressor

The California Air Tools 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in a Soundproof Cabinet is designed to be one of the quietest 4 HP air compressors in the industry having only 65 decibels of sound. The Powerful (2) 2 HP motors operate at only 1,680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase the duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040DSPCADC Air Compressor has an oil-free dual piston pump designed to have a life cycle before wear of 3,000+ hours compared to other comparable air compressors with life cycles of 1,500 hours or less. The oil-free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air. The sturdy steel soundproof cabinet has a large 20 gal. steel air tank and caster wheels that make it easy to move. The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the air compressor's noise and vibration. The 2 latching door handles allow for easy access to the air compressor. The 4 exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor. The air dryer is specially designed to remove up to 98 percent of water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20 degrees Fahrenheit to -51 degrees Fahrenheit). Air quality: ISO 8573 - Class 2.3.1. To dry the air from the air compressor an aftercooler and dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the air dryer. The easy-to-replace "spin-on" air dryer cartridge has a regenerating high-temperature molecular sieve desiccant to dry the air. This cartridge dryer has a life of 2 years before replacement. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for power, dry air, airflow, and less service with at least 30 percent less noise!

Ultra quiet - Only 65 decibels
Oil-free pump (Class 1) - Cleaner air for better tool operation
Less maintenance and costs
0.01 micron prefilters (2 total)
5.0 micron (Class 2) air filter regulator
2 pressure control gauges
2 - female industrial "push to connect" quick connectors
Condor pressure switch
Thermal overload protector
130 PSI maximum pressure
220V/60 Hz/Single Phase - (No 208V - if necessary, obtain 208V to 220V voltage booster)
Low Amp draw - 14 Amps
Time to fill tank from empty to full - 150 seconds
Recovery time from 100 PSI to 130 PSI - 40 seconds
Duty cycle - 70/30
Maximum continuous running 30-60 minutes (depending PSI and CFM)
20 gal. steel AirTank
L (31 in.) x W/D (46 in.) x H (39 in.)
375 lbs.
Non-ASME air tank
Air dryer cartridge uses a high-temperature molecular sieve desiccant
Easy to remove (spin-off) and replace every 2 years

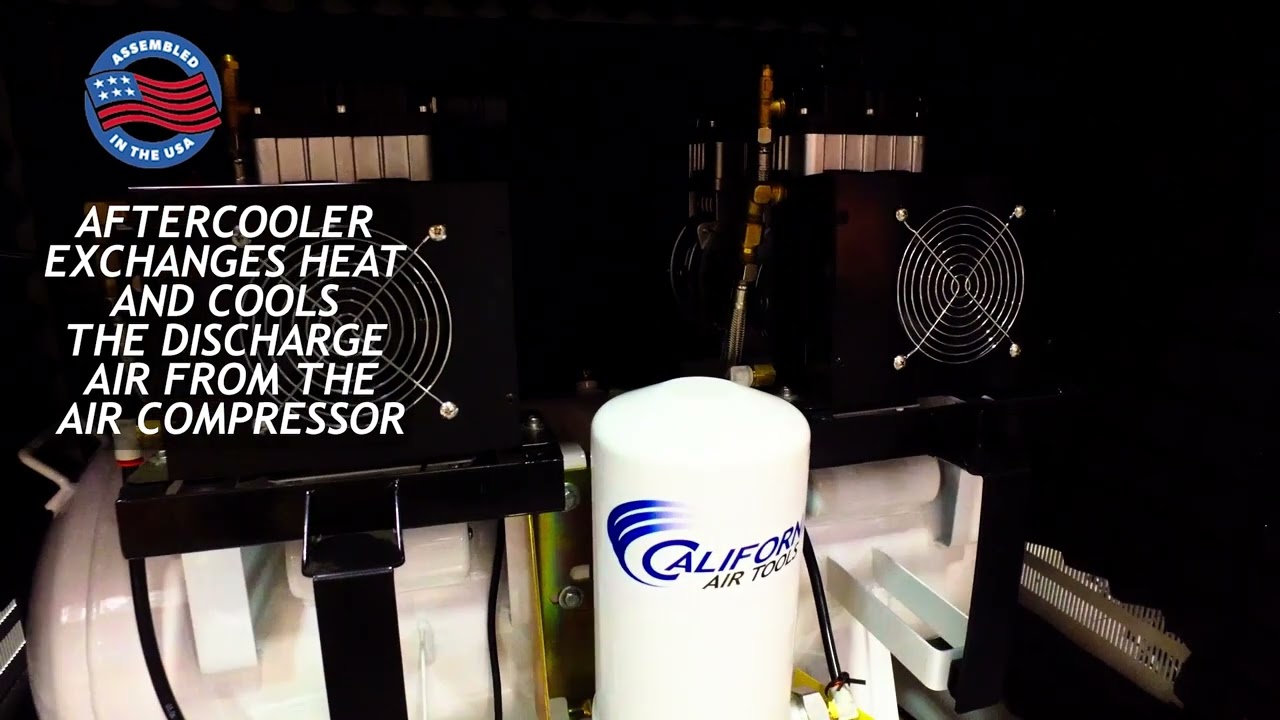

Aftercooler (condenser)
PDP performance range (-20 degrees Fahrenheit to -51 degrees Fahrenheit)
Air quality: ISO 8573 - Class 2.3.1
1-year limited warranty
Comes complete (4) air filters
Plug type: Nema 6-15P
EZ-1-2321 auto drain valve factory installed
Commercial use: Refer to state and city codes
Assembled in the USA with global components
