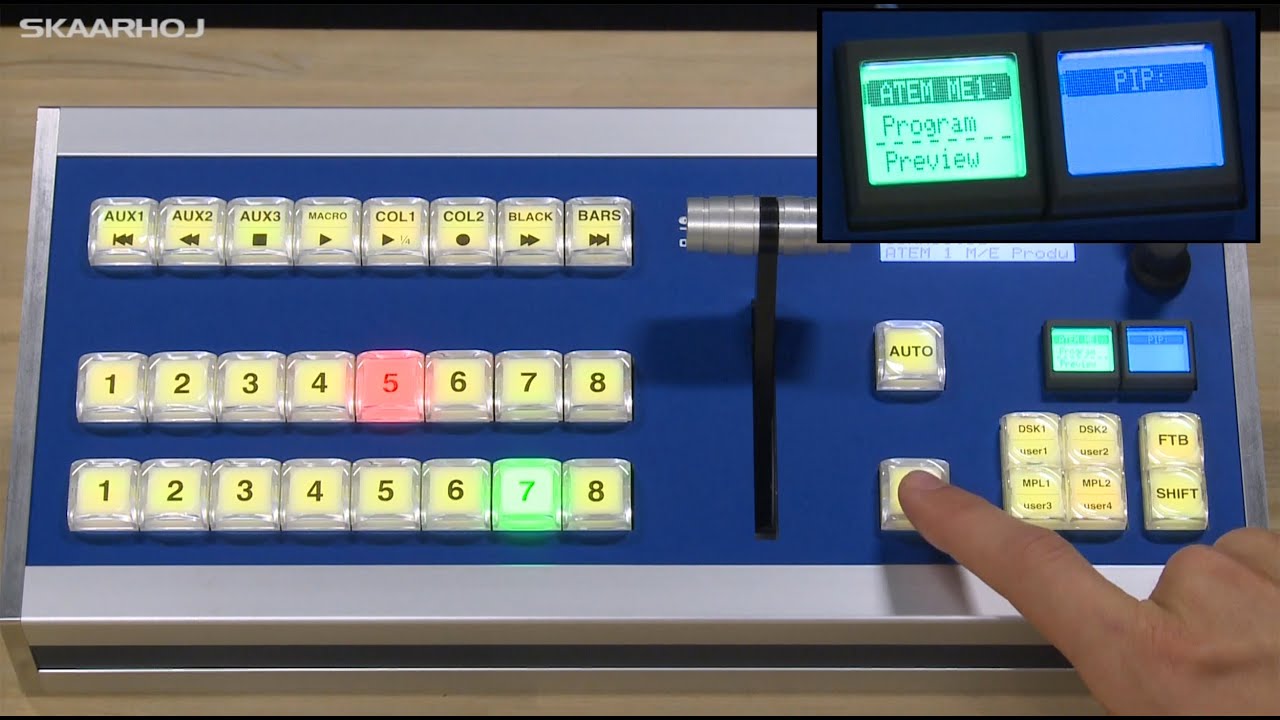

This is a thorough walk-through of a C201 Desktop Controller with options: T-bar, 2 x SmartSwitches and PoE.

The operation is laid out traditionally with a program and preview bus in addition to CUT, AUTO, DSK1/2, Media Player 1/2, FTB and SHIFT.

The SHIFT key let you access input 9-16 on the ATEM and inputs/outputs on the VideoHub.

Control of either 1 M/E or 2 M/E can be set in the menu.

The SmartSwitch Menu Selector sets the functionality of the preview/program bus and the 8 upper buttons. In this demonstration it’s set to:

SmartSwitch Button 1:
ATEM ME1 | Program/Preview
Audio Int | On/AFV
Audio Ext | On/AFV
PIP Source | Source / Prv/Prg
VideoHub | Input/Output(s)
VideoHub | Output/Input
HyperDeck | Program/Preview

SmartSwitch Button 2:
Fade in/fade out PIP
Select 4 PIP positions by holding down the button

See more and get your very own at http://skaarhoj.com/designs/c201-desk...
