Скачать или смотреть Automatic multi head weighing packing machine with vacuuming mechanism for dates

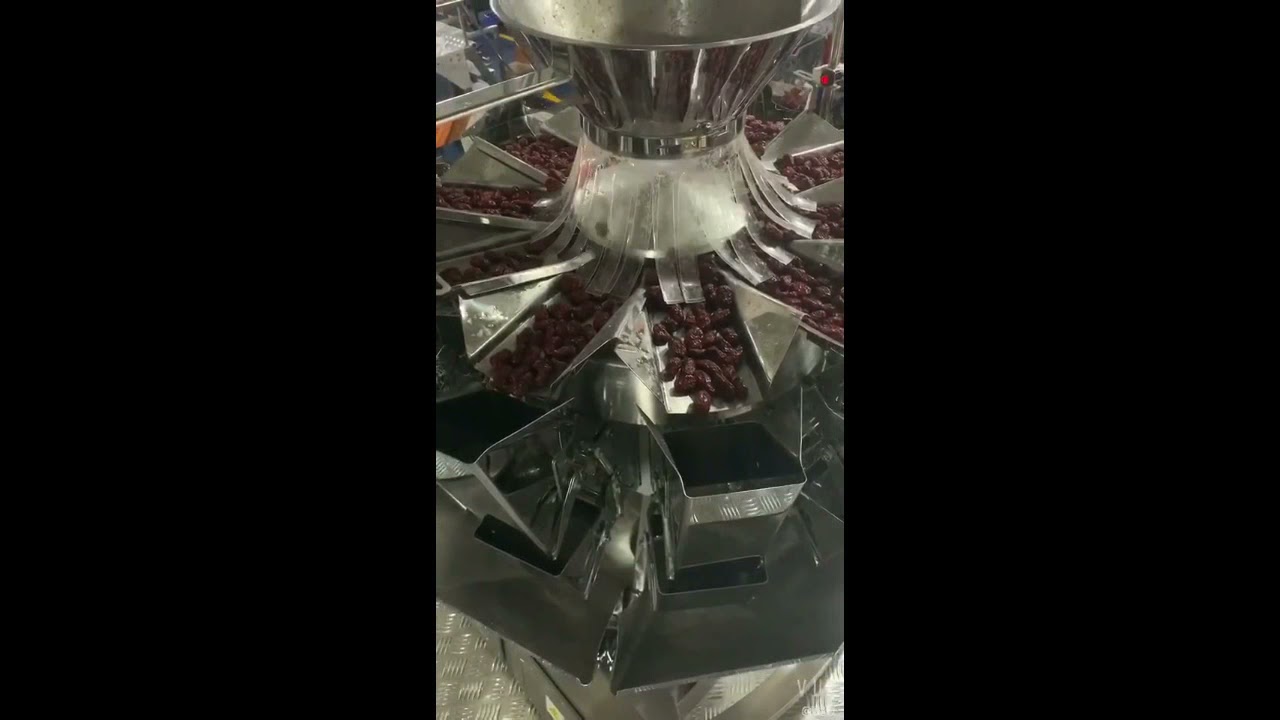

Automatic multi head weighing packing machine with vacuuming mechanism for dates
Product name:

Fully automatic large particle packaging machine



Product introduction:

The machine uses brand photoelectric eye control system. The cutting between two bags is precise. The weighing error is within 2 grams, and it has the functions of automatically completing bag making, metering, filling, sealing, slitting and easy tearing, hot pressing batch numbers, and can be used separately or integrated.

Product use: suitable for powder, tablet, granular packaging of food, chemicals, condiments, etc. (such as: pralines, sugar balls, chocolate beans, fish skin peanuts, puffing, potato chips, sugar, small biscuits, etc. Packing Machine.)





Technical parameters

Power supply

1PH 220V/50HZ or 110V 60HZ


Power

2．2KW

Packaging material

OPP/CPP、OPP/CE

MST/PE、PET/PE

Horizontal seal heating tube power（4 piece in series）

800W/220VAC

Packaging film thickness

0.04～0.08mm

Vertical seal heating tube power（2 pieces in series）

500W/220VAC

Packaging film width

140～520mm

Compressed air pressure

0.65MPa

MAX bag size

60～250mm(W)

80～600mm(L)

Compressed air consumption

0.4m3/min

Packaging speed

5～60packs per minute

Machine dimensions

1217 Lx1015Wx1343H(mm)

Machine weight

600kg


Applicable products

puffed food, biscuits, rice crust, toys etc. granular products
