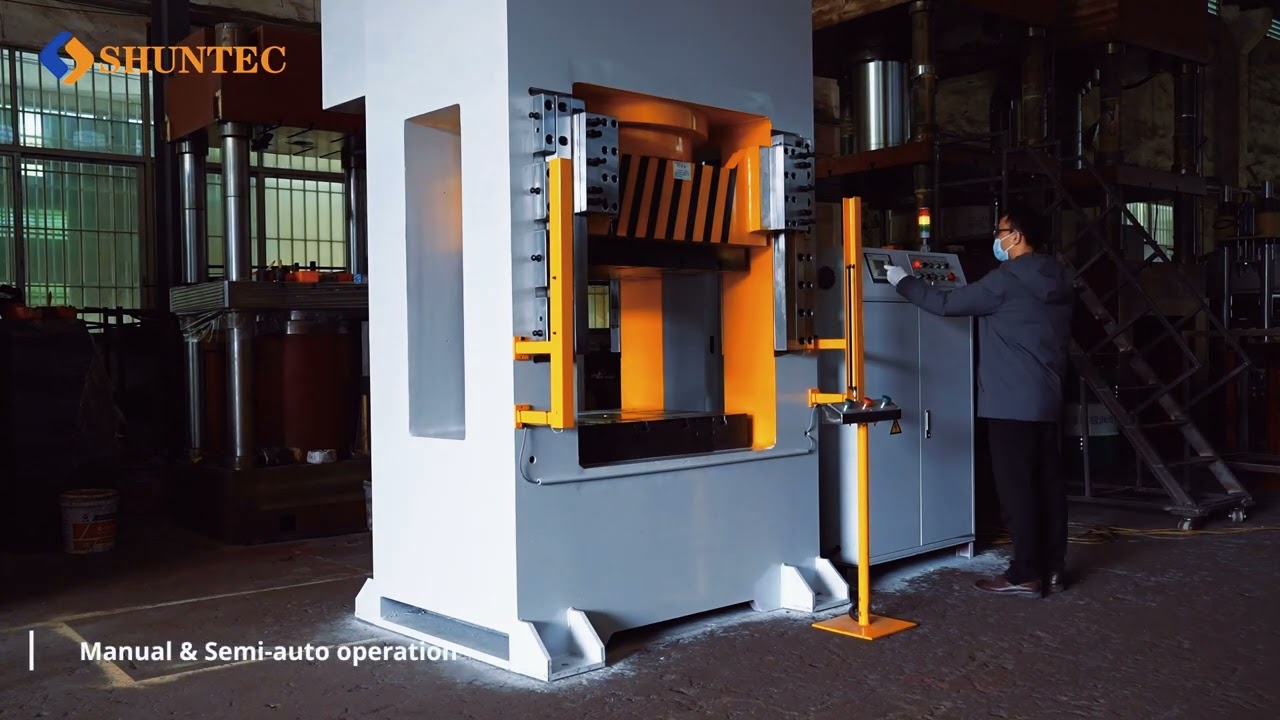

Gib-Guided Press - Custom-made 800 Ton Gib-Guided Hydraulic Press - Shuntec Press

Gib-guided press, with its sturdy construction and high accuracy, is often used for most demanding applications which the two-post hydraulic press and four-post hydraulic press are not capable of. With the functional parts of gibs, the gib-guided frame structure offers the most precise method for ram guidance and ensures the reciprocating motion of the ram to achieve superior parallelism throughout the stroke.

Shuntec's 8-point gib-guided press is more solid, capable of minimizing deflection and resisting external shock, so the moving platen/slide can be guided with exceptional precision. Additionally, our gib-guided press has a particularly outstanding performance in eliminating the off-center load's effect.

Because of the gib construction, the overall size of the whole press machine is inherently large compared with the two-post press, 4-post press, and C-frame press. The working area can be custom-enlarged according to specific needs, as long as the rigidity and accuracy of the whole machine are not affected. A larger working area can make the operation more convenient and productive. Stroke and tonnage can also be adapted to address different demands.

As the gibs are fully adjustable left-to-right as well as front-to-back, you’re guaranteed to maintain precise tolerances for the life of your Shuntec gib-guide press.

For more information, please contact Mr. Matt Chan.
Mob: +86 188 1880 9064
Email: [email protected]
