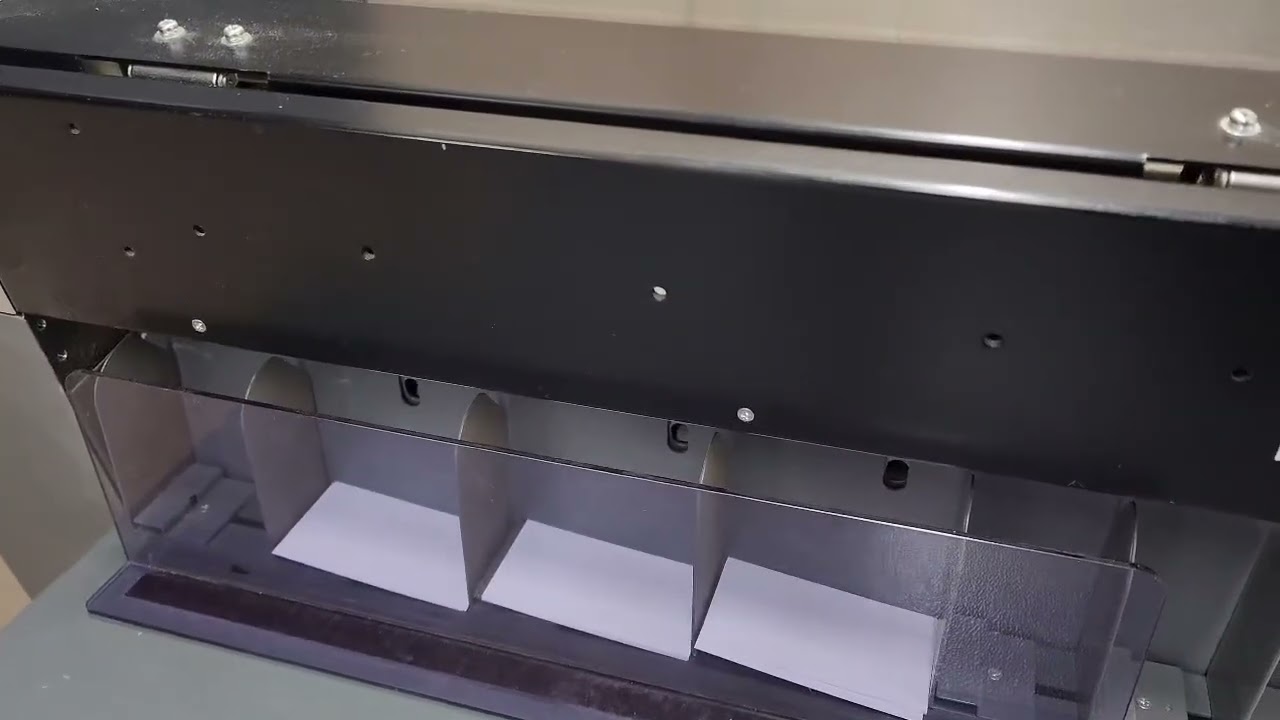

2018 Duplo DC 646 Cutter Creaser Slitter
ALI Reference #: 106253

Details:
​Count: 01220492
Year 2018
Speed Up to 30 sheets per minute (8.5” x 11” 2 cuts, 1 crease and CCD scanner off) Slitter/Cutter/Creaser
Input Paper Size 8.26” x 8.26” to 14.56” x 26.37” (210 mm x 210 mm to 370 mm x 670 mm)
Min. Finished Size 1.89” x 1.97” (48 mm x 50 mm)
Tolerance +/-0.2 mm Feeder Capacity 3.9” (100 mm)
Paper Weight 110-350 gsm
Slits Up to 8 per sheet (6 standard slitter tools with 2 margin slitters and 4 center slitters. Optional slitter module with a set of 2 slitters can be added.)
Cuts Up to 25 per sheet
Creases Up to 20 per sheet
Memory 250 jobs using the control panel
Power Requirements 115V: 4.0A, 60Hz Dimensions (W x D x H) 91” x 40” x 44” (2,311 mm x 1,016 mm x 1,118 mm) Net Weight 617 lb. (280 kg)
