Hello friends in this video I'm going to show you how to make extensions or electric board at easy way 🔌🔌🔌🔌🔌🔌🔌🔌🔌

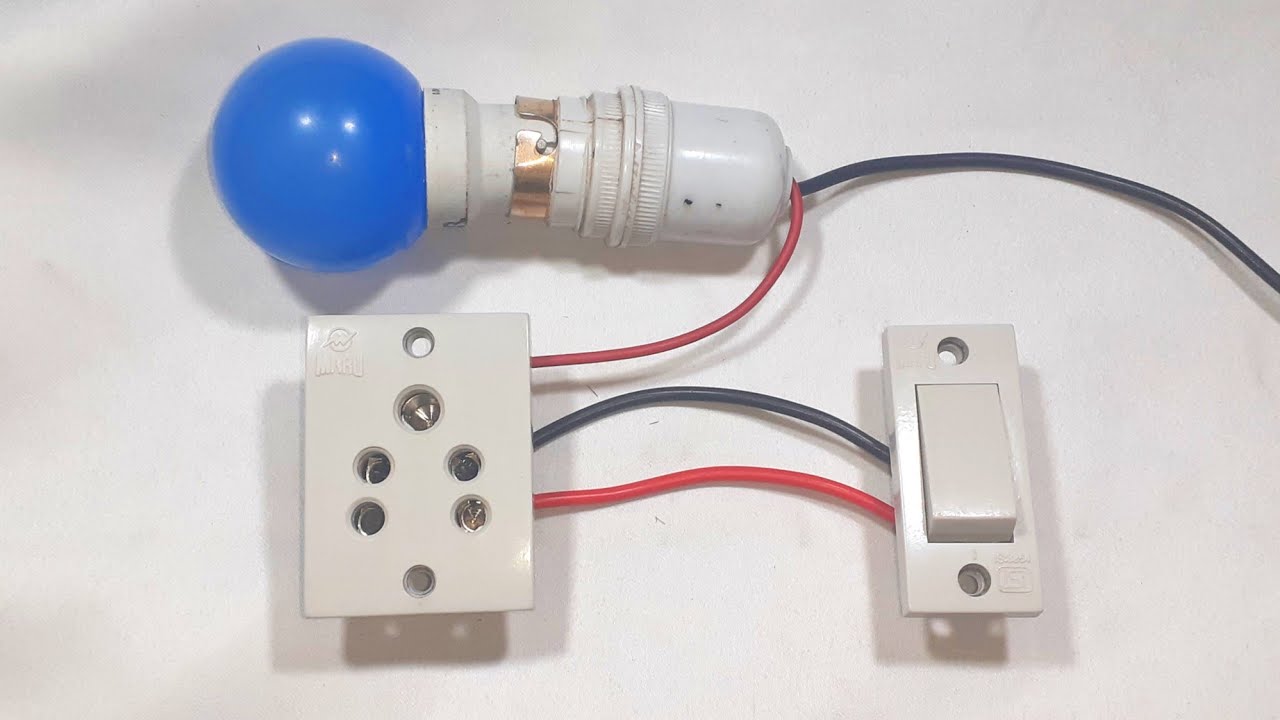

1 bulb connection with 1 5pin Socket
2X3 extension board connections at home
Electric Board connection at home
Diy board connections
Homemade electric board
Electric connection at easy way

Mores electric board connections 👇👇👇

   • 2 5Pin Socket and 2 2pin Socket connection...
2 5Pin Socket and 2 2pin Socket connection

   • Two way power Socket and switch connections
Two way power Socket and switch connections

   • Two way switch to on bulb connection | sta...
Two way switch to on bulb connection

   • 1 5pin Socket and 1 switch connections wit...
1 5pin Socket and 1 switch connections with 2 bulb holder

   • 1 bulb connection with 1 5pin Socket and 1...
1 5pin Socket and 1 switch connections with 1 bulb holder

   • 2 5Pin Socket, 1 switch connections and 1 ...
2 5Pin Socket and 1 switch connections with 1 bulb holder

   • 2 bulb, 2 5Pin Socket and 1 switch connect...
2 5Pin Socket and 1 switch connections with 2 bulb holder

   • 3 5pin Socket and 1 light indicate connect...
3 5pin Socket and 1 light indicate connections

   • 2 5Pin Socket and 1 switch connections | E...
2 5Pin Socket and 1 switch connections

   • 3 5pin Socket and 1 switch connections | E...
3 5pin Socket and switch connections

   • Видео
Inverter to battery wire
Size|Quality|Length

   • Inverter connection | Home inverter wirein...
Inverter connection at easy way

   • Dry Bluetooth mini speaker| small portable...
Diy Bluetooth speaker make at home

   • 1 5pin Socket and 2 Switch| bulb holder co...
1 5pin Socket and 2 Switch with 1 bulb holder connection

   • 2 bulb with Socket connection | electric b...
1 5pin Socket and 2 bulb connection with 3 switch

   • Solar Automatic light on/off System| Solar...
Diy solar panels automatically light on/off System

   • 3 pin switch connections| ladder 2 switch ...
2 3pin switch connections to on bulb

   • Fan regulator connection| 1 Fan regulator ...
Fan regulator connection

   • 2 5Pin Socket directly connection, Socket ...
2 5Pin Socket directly connection

   • Fan regulator connection and 1 5pin Socket...
1 5pin Socket and 1 fans regulator connection with 2 switch

   • 5pin Socket with switch and 1 light indica...
1 5pin Socket and 1 light indicate and 1 bulb holder connections with 2 switch

   • 2 5Pin Socket and 2 Switch connections, 9x...
2 5Pin Socket and 2 Switch connections

   • 4 5pin Socket and 1 switch connections, El...
8 5pin Socket and 2 Switch connections

   • Electric Board connection, 6 5Pin Socket A...
Extension board connections with
Ampere and Volt Meter and 6 5Pin Socket and 6 Switch Connections

   • 1 Five Pin Socket And 1 Switch Connection,...
1 5pin Socket and 1 switch connections

Make electric extensions board with step
👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇

Step 1: Materials

1. Switch

2. Plug

3. Plug Socket

4. Extension Chord

5. Board with screws


Step 2: Plug

Now, we will connect the wires in plug. For this read carefully the pin names on the plug i.e. L, N, Earthing.

We will connect red wire at L, Black Wire at N and Green wire at Earthing Point.


Step 3: Open

First of all open the plug and take out three wires from a thick chord.

Now, you will see three colored wires and we will do wiring on the basis of color code decided earlier.


Step 4: Wiring

Now wire the plug.

L-Red Wire

N-Black Wire

Earthing- Green Wire

Step 5: Tighten

Now, tighten the bolts and complete it and cover the plug.

Step 6: Plug Complete

Now, the plug is ready and now its time to wire the Board.

Step 7: The Board
Now, we will move on to wire the board. We will connect through one switch and the plug Socket.

Step 8: Open


Again Take out three colored wires from the other side of the chord and open the board to wire it.

Step 9: Wiring-1


Connect a wire from switch to the L of the plug socket.


Step 10: Wiring-2


Now, connect the Red wire to the other connector of the switch

Step 11: Wiring-3


Connect the black wire at the N pin of the plug Socket.

Step 12: Wiring-4


Now connect the green wire at the earthing terminal of the Plug Socket. Now close the Board and screw it up.

Step 13: Extension Ready


Now, your extension is ready to power your home appliances.

I hope you enjoyed it and found it very easy....
