Скачать или смотреть Nokia Siemens Flexi 3x70W FXEA 1800MHz Base Station Teardown: Power Amplifier (Part 1 of 2)

Discussion of teardown: https://highvoltageforum.net/index.ph...

Part 2:    • Nokia Siemens Flexi 3x70W FXEA 1800MHz Bas...
Part 3:    • Nokia Siemens Flexi 3x70W FXEA 1800MHz Pow...

All high resolution pictures will be published with part 2 at: http://kaizerpowerelectronics.dk

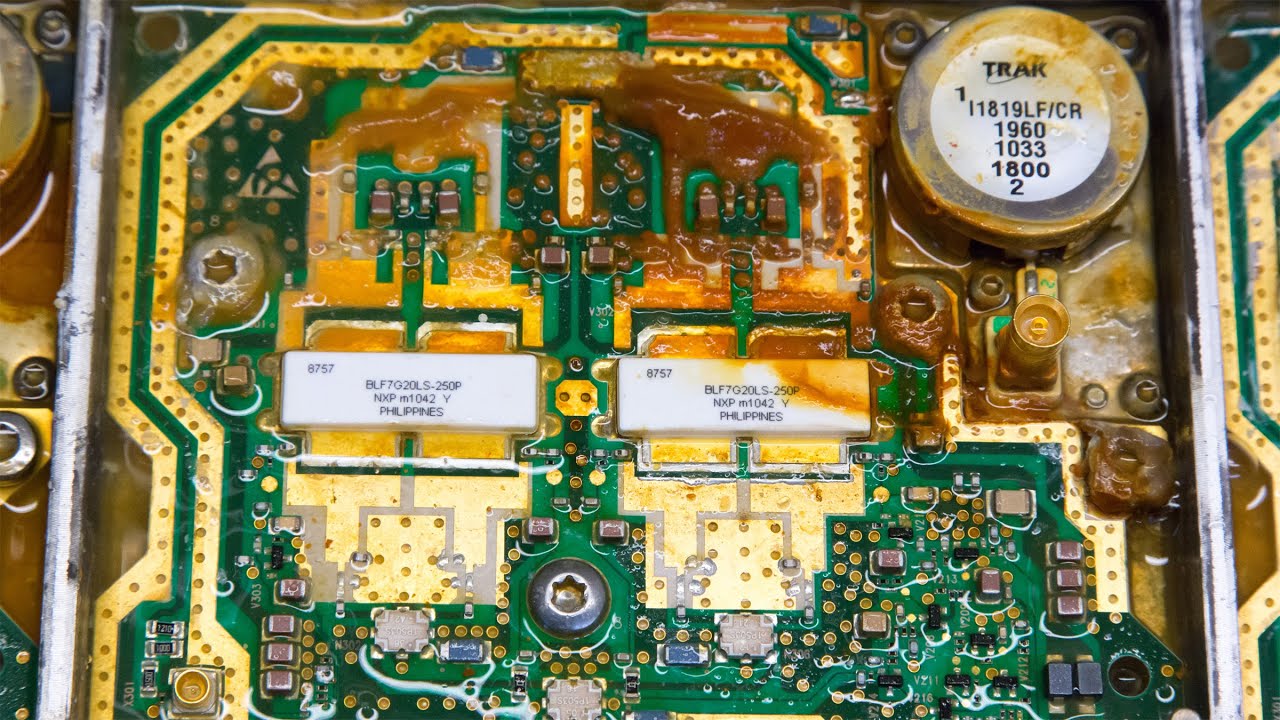

Teardown of a Nokia Siemens Networks Flexi Multiradio base station. This have been in service as a 3 antenna system for mobile telecommunications.

GSM/EDGE, WCDMA/HSPA and LTE capable. 3x70 Watt output power.

Up/Downconversion explained:    • Ericsson RBS6000 1800MHz Radio Base Statio...
SAW filters explained:    • Ericsson RBS6000 1800MHz Radio Base Statio...
Ceramic bandpass filter explained:    • Ericsson RBS3206 1800MHz Radio Base Statio...
Duplexer band pass filter explained:    • Nokia Siemens Flexi BTS 1800MHz Base Stati...
