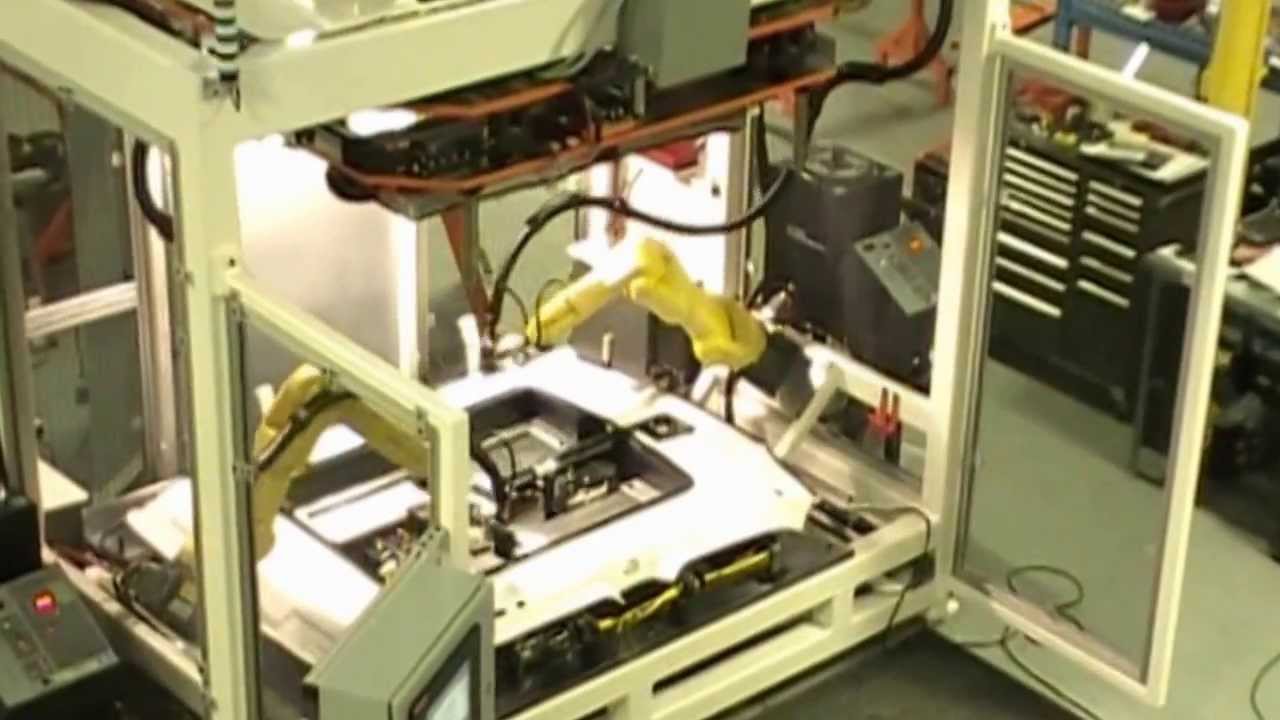

This machine installs support trim rings onto a headliner substrate. There are two different moon roof sizes on this headliner substrate. The machine has quick change tooling which rotates in the base plates of the tooling fixture. The operator will load the trim rings into the rotated fixture nests. The rings will be held into the nest with suction cups. The tooling fixture is rotated to the horizontal position and the operator places the substrate into the lower tooling fixture. Two 6-axis robots then apply hot melt glue to the substrate. The upper tooling fixture extends and the trim rings are placed onto the substrate. After the glue is given time to cure the upper tooling retracts and the operator removes the finished headliner.
