Скачать или смотреть diisposalbe face masks boxing machine automatic surgical mask cartoner آلة التغليف الكرتوني أقنعة

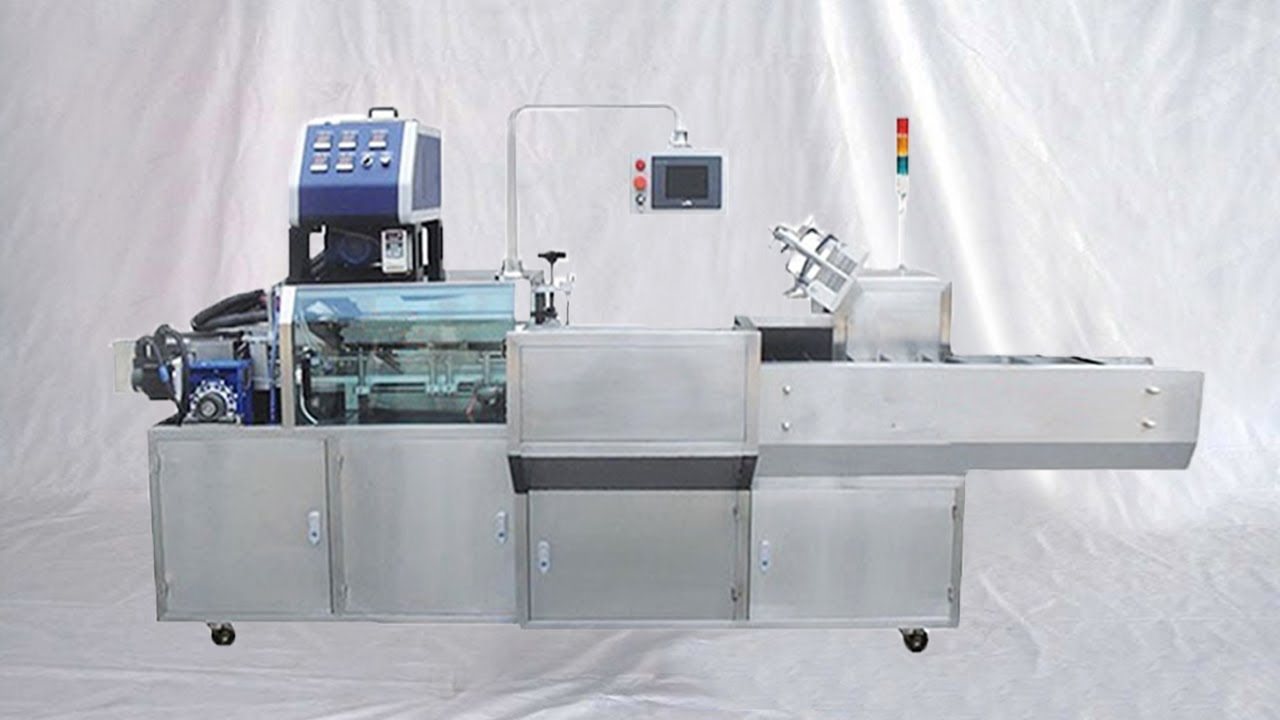

Model YX-CP00 diisposalbe face masks boxing machine fully automatic surgical mask cartoner آلة التغليف الكرتوني أقنعة designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like masks line and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for automatic feeding bottle(round and square bottle)into carton (either for blister or bottle). On line bottle unscramble and feeding, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
2. Feature:
1). International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2). Adopt human-machine operation system.
3). Automatically stop when machine is overload.
4). Automatically reject lacking of package product and leaflet.
5). Automatically display trouble, Alarm and count finished products.
6). Stable performance,operation is easy.
3. Capacity and Characteristic:
1). Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2). When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3). Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4). Vibrating material categorizing and feeding mechanism is stable and reliable.
5). Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6). It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7). Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8). Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
3. Main Technology Parameter:
Encasing speed 30-100 boxes/min
Box Size 250-350g/m2 Base on carton size
Dimension range (L×W×H) (70-200)mm×(25-80)mm×(15-50)mm
Leaflet Size 55-65g/m2
Unfolded leaflet specification (100-250)mm×(100-190)mm L×W
Fold range 1-4 Fold
Compressed air
Working pressure 0.5-0.7Mpa
Air Consumption 20m3/h
Power supply 380V/220V 50Hz 1.5kw
Motor power 0.75kw
Machine dimension (L×W×H) 3100mm×1350mm×1450mm
Machine weight 1200kg
Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like diisposalbe face masks boxing machine fully automatic surgical mask cartoner آلة التغليف الكرتوني أقنعة model YX-CP1100,please email via [email protected] or browse our website http://penglaichina.com.
