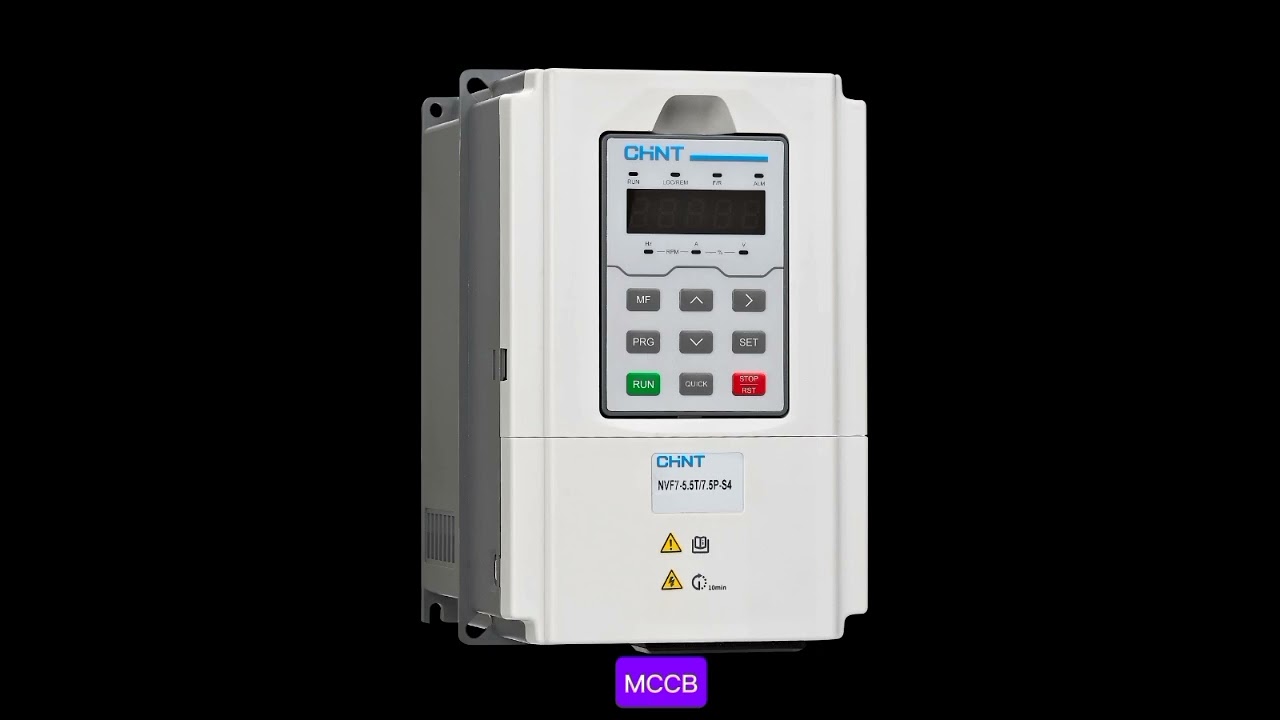

Скачать или смотреть VFD Details (

What is a VFD?
A Variable Frequency Drive (VFD) is an electronic device that controls the speed, torque, and direction of an AC motor by varying the frequency and voltage supplied to the motor.
👉 In simple words:
VFD = Speed controller for AC motorsWhy VFD is Used?
Without VFD:
Motor runs at constant speed
High starting current (5–7 times rated)
Energy waste
Mechanical stress
With VFD:
Smooth start & stop
Adjustable speed
Energy saving
Longer motor lifeMotor Speed Formula (Very Important)
📌 VFD works by changing frequency, so motor speed changes.
Example:
50 Hz → full speed
25 Hz → half speedWorking Principle of VFD
A VFD works in three main stages:
🔹 1. Rectifier Section
Converts AC input to DC
Uses diodes or thyristors
🔹 2. DC Bus (DC Link)
Smooths DC voltage
Uses capacitors & inductors
Stores energy
🔹 3. Inverter Section
Converts DC to variable AC
Uses IGBTs
Controls:
Frequency
Voltage
SpeedMain Components of VFD
🔸 Power Circuit
Rectifier
DC bus capacitors
IGBT inverter
🔸 Control Circuit
Microcontroller / DSP
PWM generation
Speed & torque control logic
🔸 Cooling System
Cooling fan
Heat sink
🔸 Protection Circuit
Overcurrent
Overvoltage
Undervoltage
Overtemperature
Earth faultTypes of VFD Control Methods
🔹 V/f Control (Scalar Control)
Simple & low cost
Used in:
Pumps
Fans
Less accurate torque control
🔹 Vector Control
Precise speed & torque
Used in:
Conveyors
Crushers
Extruders
🔹 Direct Torque Control (DTC)
Fast response
High-performance
Used in cranes & elevatorsVFD Input & Output
🔹 Input Supply
Single phase: 230V
Three phase: 415V / 690V
🔹 Output Supply
Variable voltage
Variable frequency (0–400 Hz)
⚠️ Never connect VFD output to:
MCCB
Contactor
Changeover switchSpeed Control Methods in VFD
Keypad
Potentiometer
Analog signal (0–10V / 4–20mA)
Digital inputs
PLC / SCADA (Modbus, Profibus, Ethernet)Braking Methods in VFD
🔸 DC Injection Braking
Injects DC into motor
Fast stopping
🔸 Dynamic Braking
Uses braking resistor
Energy converted to heat
🔸 Regenerative Braking
Energy returned to supply
Used in elevators, cranesHarmonics in VFD
What are harmonics?
Unwanted frequency components generated by VFD rectifier.
Problems:
Heating of transformer
Poor power factor
Cable losses
Solutions:
Line reactor
DC choke
Harmonic filter
12-pulse / 18-pulse VFDAdvantages of VFD
✅ Energy saving (30–50%)
✅ Soft start & stop
✅ Accurate speed control
✅ Reduced mechanical stress
✅ Lower maintenanceDisadvantages of VFD
❌ High initial cost
❌ Harmonic distortion
❌ EMI / RFI issues
❌ Skilled setup requiredApplications of VFD
Water pumps
Fans & blowers
Conveyors
Compressors
Mixers
HVAC systems
Elevators
CNC machinesVFD Selection Criteria
Motor power (kW / HP)
Voltage rating
Load type (constant / variable torque)
Overload capacity
IP rating
Environment (dust, heat)
Communication requirementCommon VFD Faults
Overcurrent fault
Overvoltage fault
Undervoltage fault
Overtemperature
Earth fault
Communication faultSafety Precautions
⚠️ Always:
Wait for DC bus discharge
Use proper earthing
Use shielded motor cable
Follow manufacturer manualA VFD is a critical device in modern electrical systems.
It improves energy efficiency, motor control, and equipment life.
📌 Every electrical engineer & technician must understand VFD.
