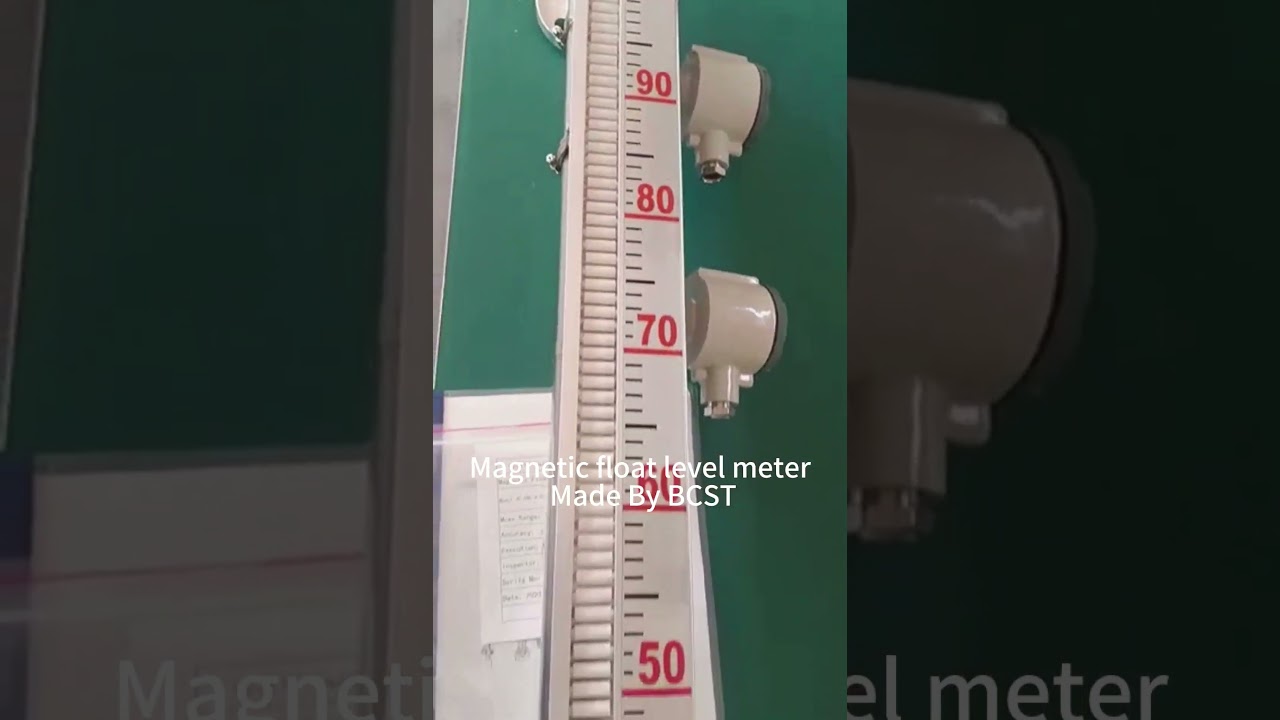

The BCST magnetic float level meter is a measuring instrument that reflects the measured liquid level or interface by using the magnetic float as the sensing element and the coupling of the magnetic body in the magnetic float and the display color bar.

The magnetic float level meter and the measured vessel form a linker to ensure that the liquid level between the measured vessel and the measuring tube body is equal. When the float in the measuring tube of the level meter changes with the measured liquid level, the magnetic body in the float acts with the magnetic body in the display color scale on the display bar to flip it, red indicates liquid, white indicates no liquid, to achieve the purpose of accurately displaying the liquid level in place.

High sensitivity (to avoid the phenomenon of panel flower face), wide view window (for easy viewing).
Continuous measurement of various liquids as well as high temperature, high pressure, corrosive and flammable, and explosive media levels.
On-site indication, signal remote transmission (4~20mA or HART), multi-function.
The display indicates the liquid level in red, which is intuitive and eye-catching.
Large measuring range, no blind area in the whole process of measurement.
The display and the measured medium are completely isolated, safe, and reliable.
