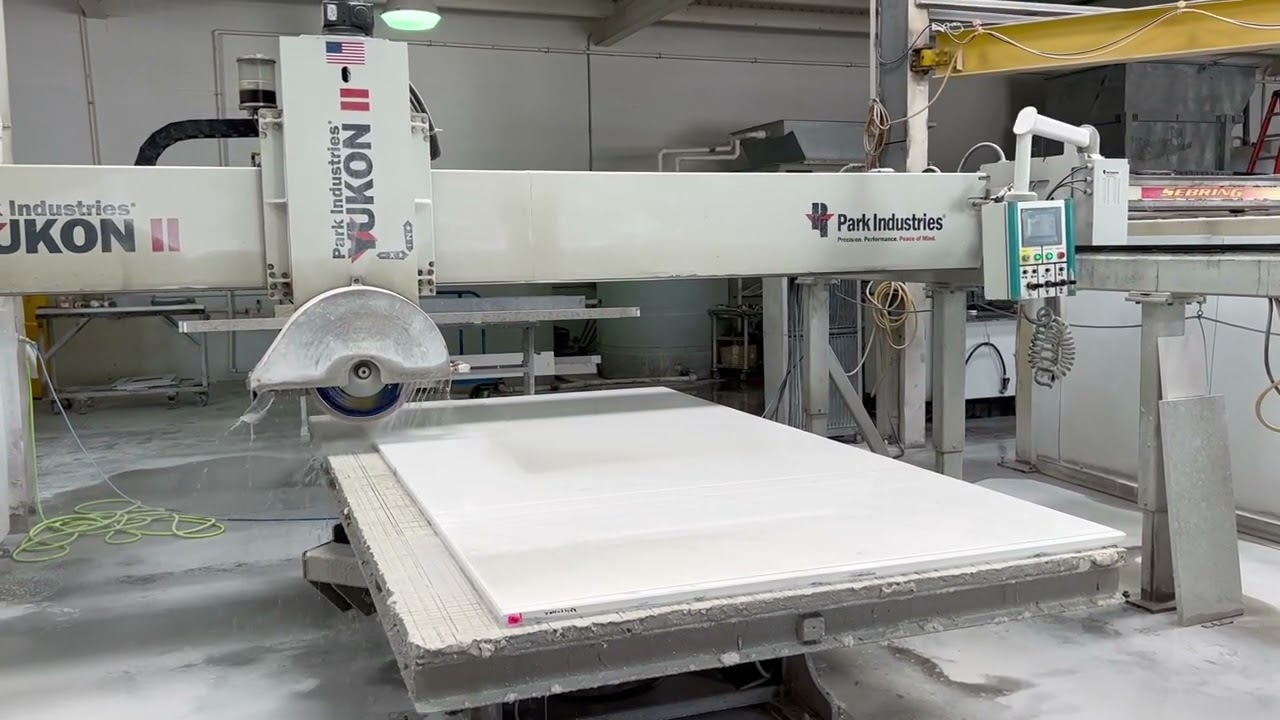

PARK INDUSTRIES YUKON II BRIDGE SAW
Direct link to listing: https://www.exfactoryauctions.com/Auc...
(SN-231108)

Specifications:

Motor : 20 HP Arbor Motor, 0° - 47° Tilting Head for Mitering
Blade Specs: Handle up to a 24" Blade, Mounted on the left side of Bridge for convenience; Great for Plunge Cuts. Blade center hole to fit provided 50 mm blade spacer (50 mm OD x 1-5/8" ID); 7-1/2" blade flange size; max. tool width is 3/4"
Usable working dimensions 144" x 144"
Table Specs: 6' x 11' x 32" H Hydraulic tilt table with 360° 8-Position Air-actuated indexing & Air-actuated brake
Laser: Laser cutting guide system makes for precise and quick cutting of pieces and splashes.
Machine Control System: Push Button/selector switch, Amp meter for main motor, handheld pendant for directional control of crosshead travel and raise & lower movement (includes emergency stop)
Can manually set cross travel limit switches, max. travel speed of 15 FPM, rack & pinion motion mechanism
Rise & fall of head is 6"; variable speed AC drive raise & fall via ball screw drive; scale with index pointer to show rise & fall location
Includes: Operation & Maintenace Manual
