Application:

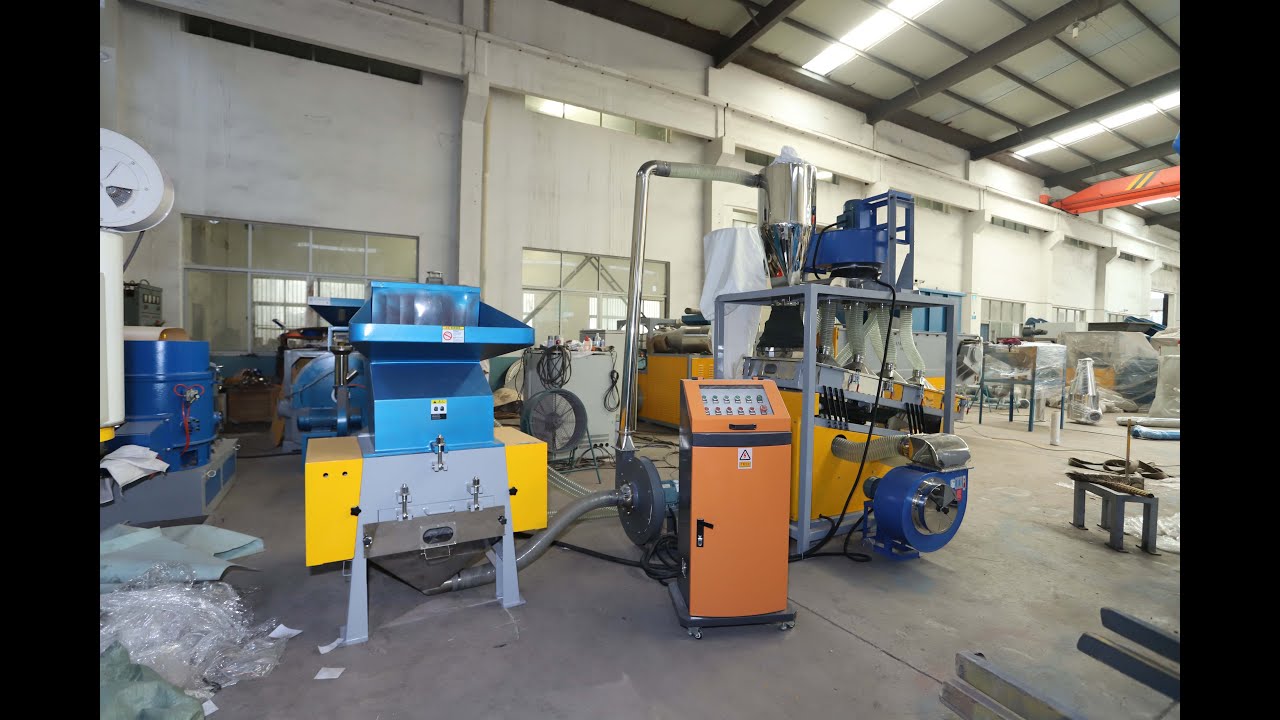

Crusher Separator Machine is suitable for material sorting treatment of composite products of two or more materials. After the plastic containing fibers or other impurities are broken, the impurities are separated to obtain a single plastic particle for utilization. For example fiber water pipes, clips, carpets, belts, zippers, etc .;
1. Recycling with Brad chain: After the Brad chain is broken, the plastic and cloth are separated.
2. Recycling of sports shoes: After crushing with sports shoes, separate the rubber and cloth from them
3. PVC mesh hose recycling: After the PVC mesh hose is broken, the PVC particles and fibers are separated.
4. Recycling of conveyor belt: After the belt of the conveyor belt is broken, the rubber plastic and fiber are separated.
5. Solar photovoltaic film recycling: After the solar photovoltaic film is broken, the plastic film and silicon crystal are separated.
6. PET bottle recycling: the main function is to separate the label paper, sticker paper, and PE film paper in the bottle pieces;
7. Shoe material recovery: The main function is to separate the rubber and plastic soles in the shoe materials from the cotton, cloth, and fiber materials in the upper
8. Recycling of photovoltaic cells and silicon thin film batteries: The main function is to separate the silicon in silicon cells from plastic films;
9, tire recycling: the main function is to separate the fibers in the tire to obtain clean rubber pellets.
Description:
Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut, and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper, etc. The cutter head is consists of a basic shaft and pieces of quadrangle cutter. There are four edges that are easy to change. ‘V’ shaped rotary cutters are fixed on a single shaft. The fixed cutter is mounted at an angle adjacent to the rotary cutter to achieve better cutting. The material is grabbed between ‘V’ shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy, and reducing of noise are ensured by the installation of ‘V’ shape rotor knives. Also, the knives are very easy to install and remove.
Features of air separation system:
Air separation separator can realize automatic feeding, continuous operation, frequency conversion stepless speed regulation, automatic separation after manual input of materials, different materials after separation are output separately, strong practicability, high efficiency, low noise, sorting purity depends on materials Different specific gravity, purity can reach 90-99.95%
Working principle of the air separation system:
Using the difference in specific gravity of different materials, in the process that the material falls into the pulse curve and falls uniformly, the light-weight material (such as dust, hair silk, label paper, fiber, film, etc.) is separated from the heavier-weight material. The separated materials are sent to different storages by fans for storage and packing.
Advantages of air separation system:
1. Dry separation: The traditional separation equipment uses materials that sink to the bottom of the water or float on the surface to separate. This method not only needs to dewater and dry the materials in the later stage but also wastes water and is not environmentally friendly.
2. No need for incineration: Traditional shoe materials and shoe uppers do not have a good separation method, and the insoles are used to obtain the plastic or rubber of the shoe soles. Such a practice will damage the plastic and rubber and pollute the environment.
3. Sealing work, no dust is generated: The entire system of the air separation separator is completed in a closed environment, and the separated dust is automatically collected in a dust collection bag.
