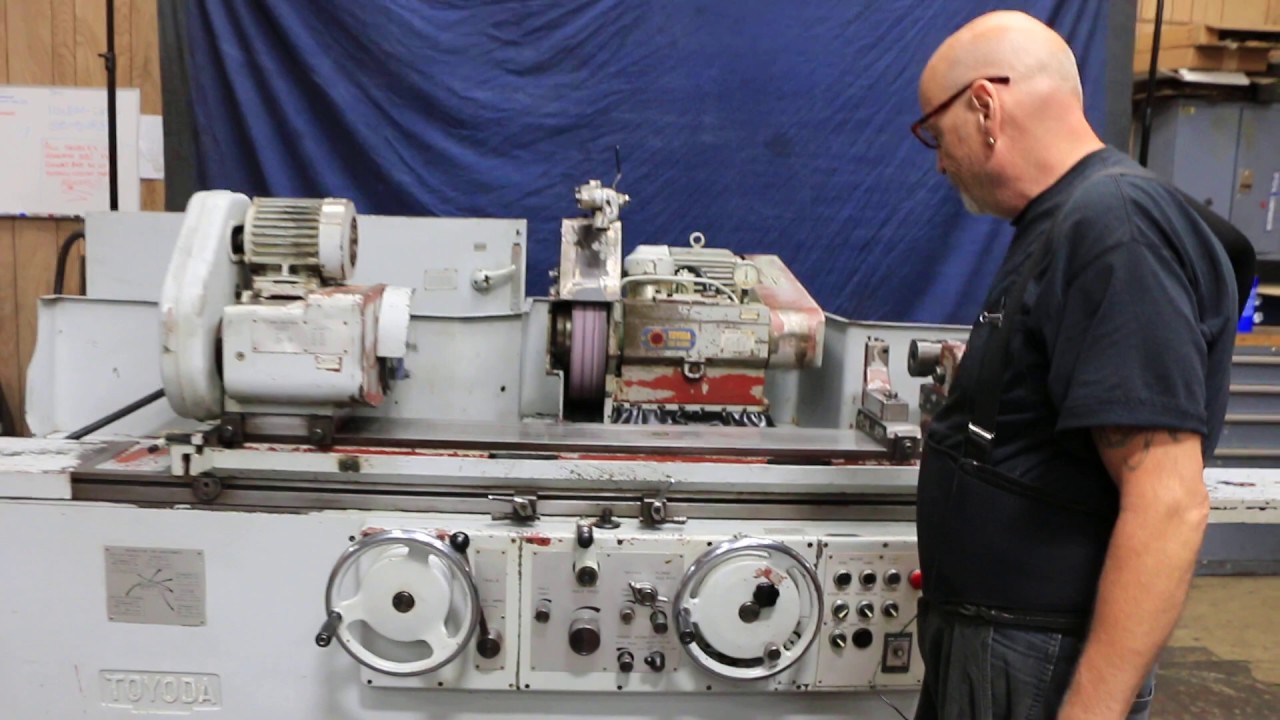

12.6" X 40" TOYODA "PLAIN" CYLINDRICAL GRINDER

** THIS IS A HIGH-PRECISION JAPANESE MADE MACHINE TOOL! **

MODEL:GOP32X100 S/N: RB3978 NEW: 1980

MAX. SWING OVER TABLE ......................... 12.6"
DISTANCE BETWEEN CENTERS ...................... 40"
MAX. LOAD BETWEEN CENTERS ..................... 330 LBS.

TABLE:
TABLE SWIVELS, COUNTERCLOCKWISE ............... 10 DEG.
LONGITUDINAL TABLE TRAVERSE SPEED ............. 2" TO 157" IPM
MOVEMENT PER TURN OF HANDWHEEL ................ 0.78"

WHEELHEAD:
GRINDING WHEEL SIZE ........................... 16" x 3" x 5"
WHEEL SPEEDS (2) .............................. 1,570/1,845 RPM
TOTAL STROKE .................................. 7.8"
HANDWHEEL INFEED STROKE ....................... 6.3"
AUTOMATIC RAPID INFEED STROKE ................. 1.6"
AUTOMATIC INFEED AT TABLE REVERSALS ........... 0.0001" TO .0016"
AUTOMATIC PLUNGE INFEED ....................... YES
AUTO PLUNGE INFEED W/POSITIVE STOP ............ 0 TO .0315"
MOVEMENT PER GRAD. OF HANDWHEEL ............... 0.0001"
MOVEMENT PER TURN OF HANDWHEEL ................ 0.040"

WORKHEAD:
WORKHEAD SPINDLE TAPER ........................ #4 MT
WORKHEAD, SPINDLE SPEEDS (8) .................. 30 TO 360 RPM
SPINDLE BORE .................................. 1.1"

TAILSTOCK SPINDLE CENTER ...................... #4 MT
TAILSTOCK QUILL TRAVEL ........................ 1"

APPROX. MACHINE WEIGHT ........................ 6,820 LBS.
APPROX. MACHINE DIMENSIONS .................... 98" x 64" x 57"H

EQUIPPED WITH:
TOYODA "STAT" HYDROSTATIC WHEELHEAD BEARINGS
PRESENTLY HAS A 16" x 3"W x 5"B GRINDING WHEEL
FULLY AUTOMATIC GRINDING CYCLE FEATURING:
HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED
AUTOMATIC PLUNGE INFEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION \
SPARKOUT TIMER
ADJUSTABLE TABLE TARRY
EXTERNAL HYDRAULIC SYSTEM
DUAL LIVE/DEAD WORKHEAD SPINDLE
EXTERNAL COOLANT TANK
ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)
MOTORS ARE FOR 3/60/220-440 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** FROM AERSOPACE SHOP - EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
