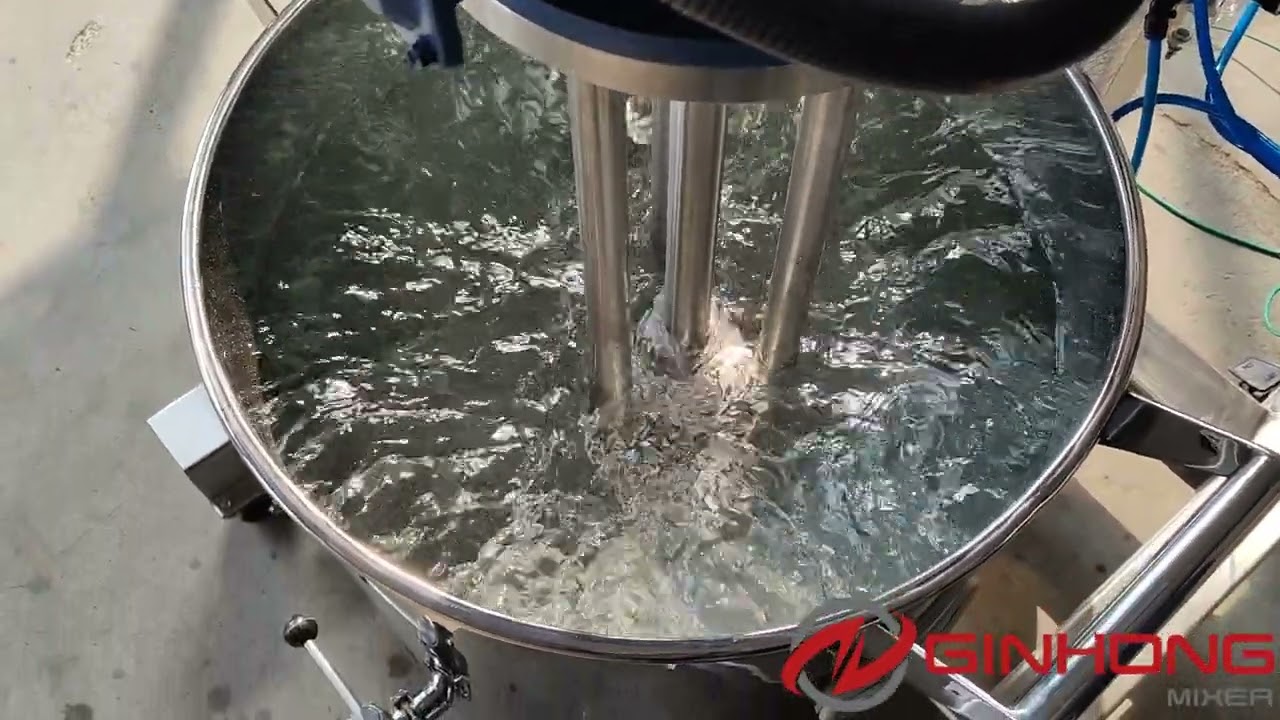

Скачать или смотреть JX-4 High Shear Mixer for Australia customer

https://ginhong.com/high-shear-mixer/...

JX batch high shear homogenizer is a top entry high shear mixer for the production of viscous cream and emulsions in the cosmetic, pharmaceutical, food and chemical industries. It’s usually used in a multi shaft mixer for homogenization.

JX Batch Homogenizer: Key Features
Working capacity from 1.5kw to 55kw;
Suitable for cream and emulsions of 20,000~80,000cps viscosity;
Suitable for batch process with high efficiency;
Pneumatic or hydraulic lifting system for easy cleaning and maintenance;
Complete process of dispersing, high shearing, emulsifying and homogenizing;
Work with different mixing tanks;
All contact parts are made of SS304/316L and mirror polished;
The specifications of the top entry batch mixer comply with cGMP regulations;
Power supply of 380V, 50Hz, 3 Phase;

Machine Characteristic
Model Motor power (kw) Speed (rpm) Handling Capacity (L)
JX-1.5 1.5 3000 30~50
JX-2.2 2.2 3000 50~100
JX-3 3 3000 50~200
JX-4 4 3000 100~300
JX-5.5 5.5 3000 200~600
JX-7.5 7.5 3000 300~800
JX-11 11 3000 400~1000
JX-15 15 3000 500~1500
JX-18.5 18.5 3000 600~2000
JX-22 22 3000 800~2500
JX-30 30 3000 1000~3000
JX-37 37 3000 1500~4000
JX-45 45 1500 2000~5000
JX-55 55 1500 3000~6000

General Application
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;
Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;

Mixer Options
Atmospheric or vacuum design available for different applications;
Interchangeable work heads and screens of slotted and holed designs;
Circular and rectangular flange designs for mounting on the vessel;
Different combinations of batch mixer, agitator, high speed disperser and inline mixer for different mixing processes
Adjustable brackets for holding the manufacturing tank tightly;
Control panel with variable speed drive for adjusting mixing speed;
Explosion proof motors and electrics;
Different power supply acceptable;
Different pneumatic, hydraulic and electrical lifting devices for lifting the batch mixer for exchangeable tanks;

If you want to learn more about our JX-4 High Shear Mixer , please feel free to contact me.
