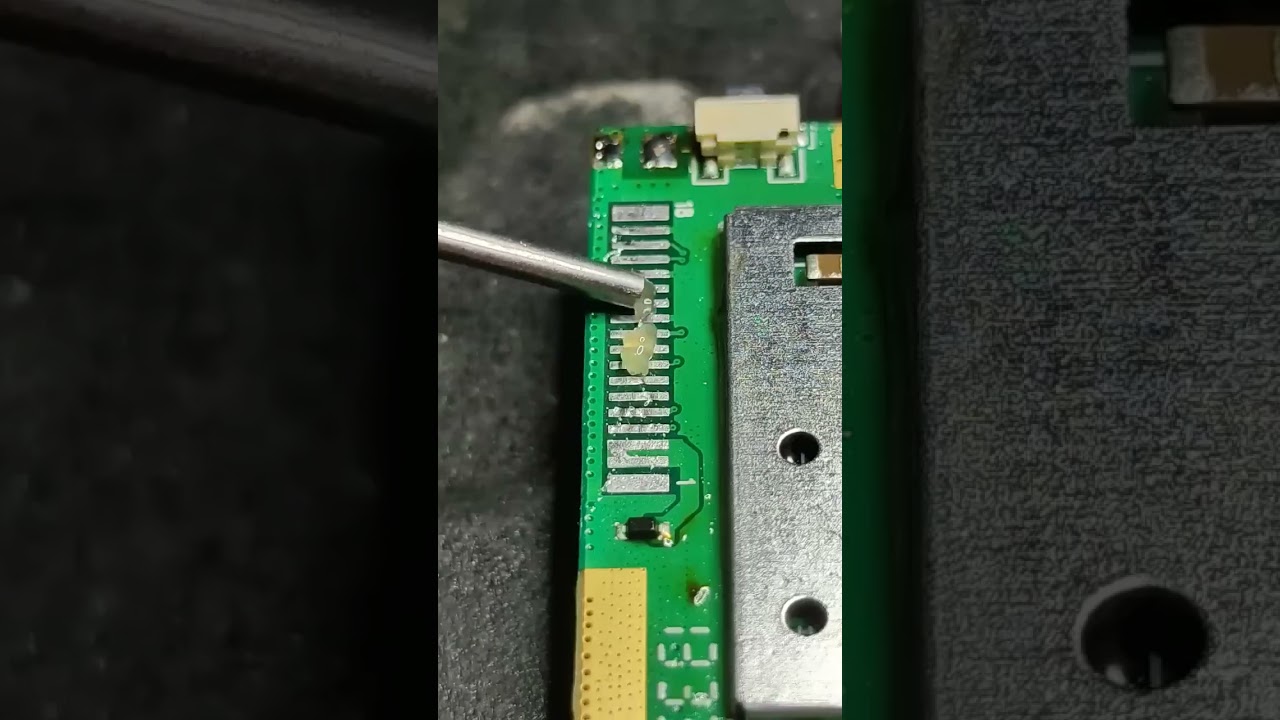

Скачать или смотреть Flexible PCB Soldering

Soldering flexible PCBs (Printed Circuit Boards) requires some special considerations due to their bendable nature. Here are some tips for soldering flexible PCBs effectively:

1. Choose the Right Soldering Iron: Use a soldering iron with a fine tip to allow for precise soldering in tight spaces on the flexible PCB.

2. Low Temperature Solder: Use low-temperature solder to prevent damage to the flexible PCB material, which can be sensitive to heat.

3. Use Flux: Apply flux to the solder joints before soldering to ensure proper wetting and adhesion of the solder to the pads and components.

4. Secure the PCB: Secure the flexible PCB in place using clamps or a jig to prevent movement during soldering.

5. Preheat the PCB: Preheat the flexible PCB slightly before soldering to improve solder flow and prevent thermal shock to the material.

6. Avoid Excessive Heat: Be mindful of the temperature and duration of heat applied to the flexible PCB to avoid delamination or damage to the material.

7. Soldering Technique: Use a steady hand and apply solder to the pads and component leads in small amounts to avoid excess solder bridging between pads.

8. Inspect and Test: After soldering, inspect the joints carefully for any defects such as cold joints or solder bridges. Test the flexible PCB to ensure proper electrical connections.

By following these tips, you can effectively solder flexible PCBs while minimizing the risk of damage to the material and ensuring reliable electrical connections.
