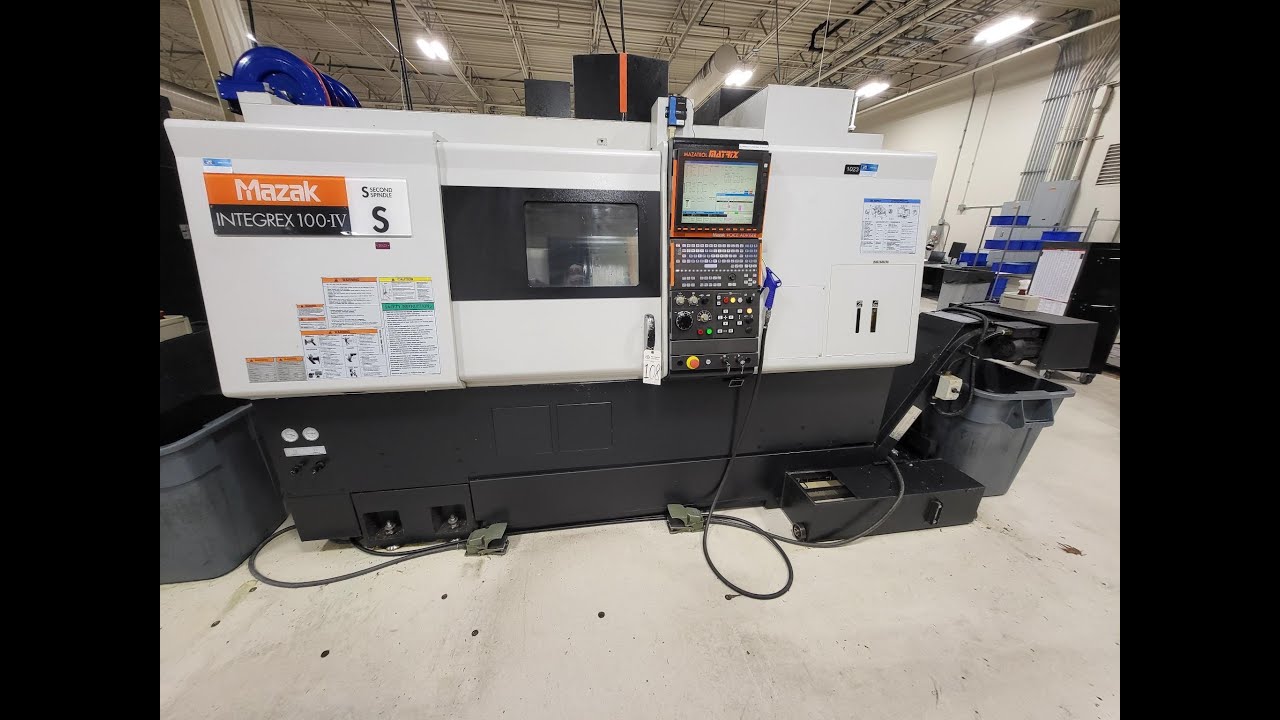

Скачать или смотреть Late Model Surplus CNC Machinery Auction Lot 108 - 2010 MAZAK INTEGREX 100-IV S CNC TURNING CENTER

2010 MAZAK INTEGREX 100-IV S CNC MULTI-TASKING TURNING CENTER 5-AXIS MACHINING (MILLING AND TURNING) ON A SINGLE MACHINE
SN: 221827
SPECIFICATIONS
MODEL: INTEGREX 100-IV S
DATE OF MANUFACTURE: 2010
CONTROL: MAZATROL MATRIX
AXIS TRAVELS
X-AXIS: 410 MM (16.14")
Y-AXIS: 140 MM (±70 MM / ±2.76")
Z-AXIS: 805 MM (31.69")
W-AXIS (SUB-SPINDLE): 795 MM (31.3")
B-AXIS (MILLING HEAD): 225° (-30° TO +195°)
MAIN SPINDLE
CHUCK SIZE: 6"
MAX SPEED: 6,000 RPM
MOTOR POWER: 11 KW (15 HP)
BAR CAPACITY: 51 MM (2.0")
C-AXIS INDEXING: 0.0001°
SECOND (SUB) SPINDLE
CHUCK SIZE: 6"
MAX SPEED: 6,000 RPM
MOTOR POWER: 11 KW (15 HP)
C-AXIS INDEXING: 0.0001°
MILLING SPINDLE
MAX SPEED: 12,000 RPM
MOTOR POWER: 5.5 KW (7.5 HP)
TOOL SHANK: CAPTO C6 OR KM63
TOOL STORAGE: 40 TOOLS (STANDARD)
MACHINING CAPACITY
MAX MACHINING DIAMETER: 545 MM (21.46")
MAX MACHINING LENGTH: 755 MM (29.7")
PHYSICAL DIMENSIONS
MACHINE WEIGHT: 7,000 KG (15,400 LBS)
FOOTPRINT: APPROX. 2,350 X 2,050 MM (92.5" X 80.7")
