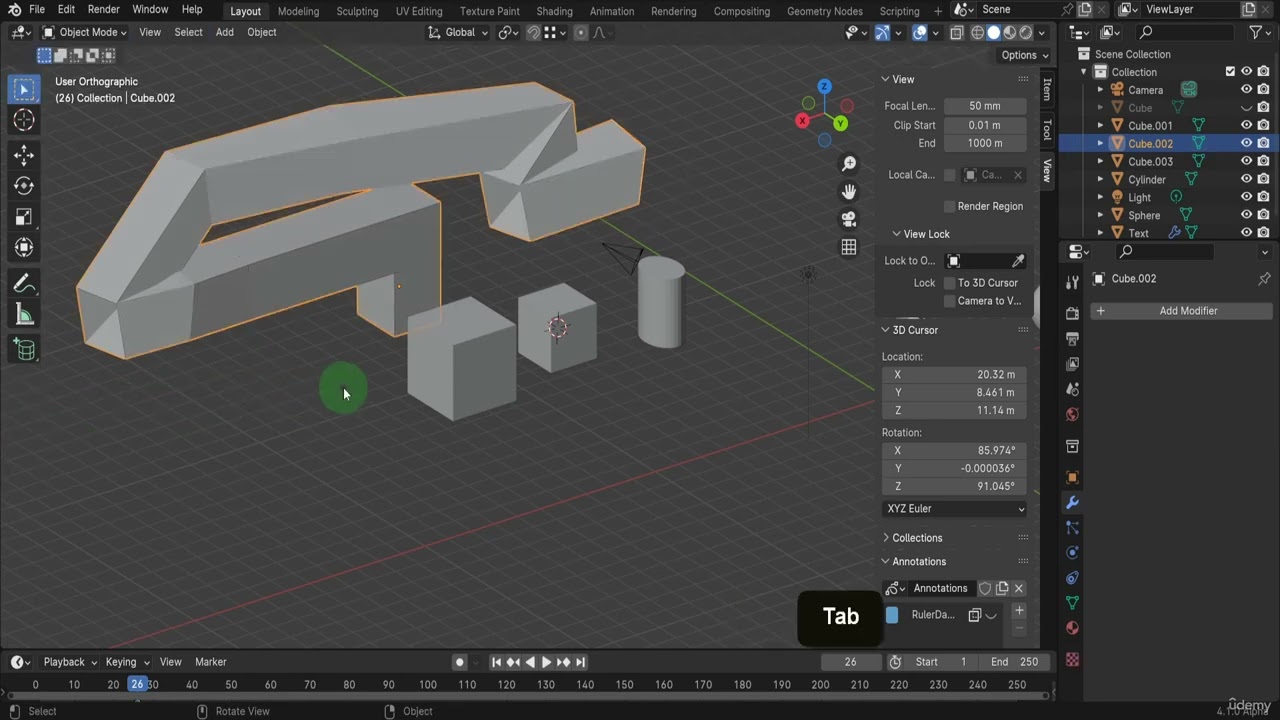

Скачать или смотреть 27 Extrude Bevel Edge Loop Tool

Extrude, Bevel, and Edge Loop Tools in Blender
Blender offers a vast array of modeling tools to help you create and modify 3D geometry efficiently. Three powerful tools—Extrude, Bevel, and Edge Loop—are commonly used when working with meshes, particularly during the modeling process. Here’s a breakdown of these tools, how they work, and how they can help you achieve complex shapes with ease.

1. Extrude Tool in Blender
The Extrude Tool is one of the most frequently used tools in Blender, as it allows you to create new geometry by extending an existing mesh along a specific direction. It's fundamental for shaping complex objects, from architectural designs to character models.



If you select vertices instead of edges, the bevel will create a rounded shape between them, which is useful for modeling rounded corners or circular shapes.
B. Uses for the Bevel Tool
Smoothing Edges: Beveling is commonly used to smooth hard edges in models, such as in furniture, architectural elements, and mechanical objects.
Creating Rounded Corners: If you need rounded corners or a chamfer effect (flattening the edge), beveling provides an easy way to achieve this.
Enhancing Detail in Hard Surface Models: Beveling makes hard surface models look more realistic by softening the edges, which mimics how light interacts with real-world objects.
Subdividing Geometry: Adding bevels to edges can also improve how a model subdivides, especially when using the Subdivision Surface Modifier to smooth out a model.
3. Edge Loop Tool in Blender
The Edge Loop Tool is essential for creating continuous loops of edges around a mesh, allowing you to add detail to specific areas of a model. Edge loops are used to define the flow of geometry, which is crucial for both organic and hard-surface modeling.

A. How to Use the Edge Loop Tool
Select a Face or Edge:
In Edit Mode, select a face or edge where you want to add an edge loop. Edge loops usually follow a path of connected edges, so the location where you select will determine where the edge loop will be created.
Insert an Edge Loop:
Press Ctrl + R to activate the Edge Loop Tool. A purple preview of the edge loop will appear around your selected area.
Position the Edge Loop:
Move the mouse to position the edge loop along the selected geometry. Left-click to place the edge loop at the desired location.
Confirm Placement:
After placing the edge loop, you can use your mouse wheel to add more edge loops at once, or press Left-click to confirm and finalize the placement.
To move the edge loop along the geometry, you can slide it by pressing G (for grab), and then slide it along the mesh until it’s in the desired position.
B. Uses for the Edge Loop Tool
Adding Detail to Geometry: Edge loops are often used to add additional detail in areas where more geometry is required. For example, when modeling a human face, edge loops are used around the eyes, mouth, and jaw to create better geometry flow for deformation during animation.
Creating Smooth Curves and Organic Shapes: When modeling characters or other organic shapes, edge loops allow for smooth curvature and control over the model's shape, particularly in areas that need to deform naturally.
Hard Surface Modeling: In hard-surface modeling, edge loops help define the structure of the model, especially around areas where sharp details or edges are needed.
