Dynemech Systems Pvt. Ltd. has been at the forefront of anti-vibration
technology for an impressive period of 23 years. We started our adventure
by creating wedge mounts and levelling pads, and then expanded our
product line to encompass a diverse array of vibration control solutions.
Currently, we provide a diverse selection of solutions, such as spring
isolators, viscous damped solutions, elastomeric vibration isolation,
precision levelling mounts, raiser damping blocks, genset mounts,
mechanical pads, pneumatic isolators, self-leveling pneumatic air springs,
shock mounts for forging hammers, and vibration isolated tables and
platforms.
We are dedicated to providing anti-vibration solutions for a wide range of
sectors. We take pleasure in offering accurate equalization and vibration
reduction solutions for a wide range of applications. Our solutions are
specifically designed to enhance stability, minimize vibrations, and optimize
performance in various industrial machines such as power presses, tool
room machines, textile machines, generators, compressors, HVAC
machines, pressure die casting machines, VMC, CNC, and EDM machines.

Dynemech offers a wide selection of precise metrology anti-vibration tables
and platforms that are specifically developed to provide precise and
dependable measurements in challenging industrial and research settings.
These state-of-the-art items are designed to separate delicate metrology

equipment, such as coordinate measuring machines (CMMs) and high-
precision microscopes, from external vibrations that might undermine the

quality and consistency of measurements.

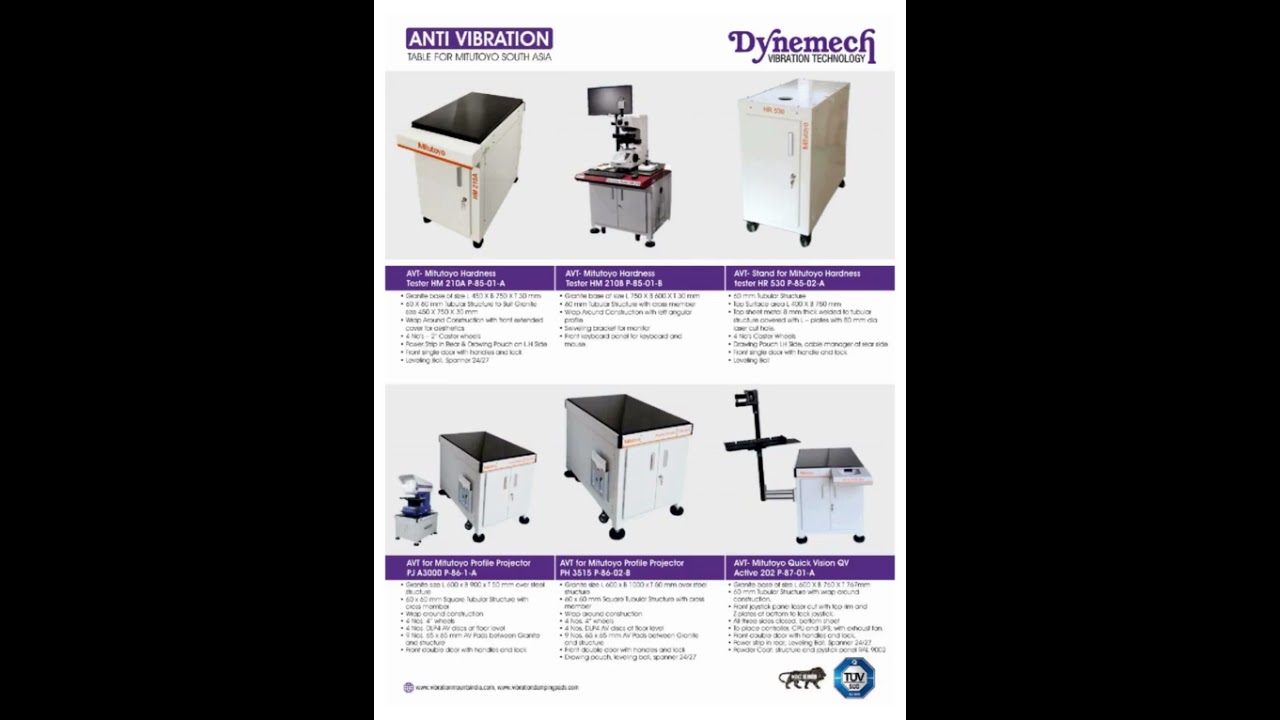

The catalog features a variety of cutting-edge anti-vibration table (AVT)
types, each designed to fulfill unique application needs.
The featured models include:
AVT-Commonized for Mitutoyo (No Joystick) H4 P-90-01-A and
W4 P-90-01-B:
•Granite base with dimensions ranging from 750 x 600 x 30 mm to 1100
x 600 x 60 mm
•Robust tubular structure with cross members for enhanced rigidity
•Wrap-around construction with left angular profile for added stability
•Swiveling bracket for convenient monitor positioning
•Multiple 65 x 65 mm anti-vibration (AV) pads for effective vibration
isolation
•Adjustable AV discs (DLP3) at ground level for precise leveling
•Optional wheels for easy mobility
•Integrated keyboard panel for comfortable operation
Avant Series AVT P-91-01-A:
•Passive air cushion AVT with electronic alarm system
•Arduino-based controller with limit switches for upper and lower position
monitoring
•Audible and visual alarms for high/low position alerts
•Granite base with customizable dimensions (e.g., 900 x 600 x 50 mm)
•Sturdy 60 x 60 mm HR tubular structure with cross members
•DMAS-SL series pneumatic isolators between granite and structure
•Adjustable natural frequency range (1.5 Hz to 2.0 Hz)
•Optional wheels for mobility

Shock Resistant/Anti-Vibration Table with Auto Levelling
Pneumatic Vibration Mounts DIT-AM and DIT AHL:
• Customizable granite base dimensions (e.g., 500 x 500 mm to 1000
x 800 mm)
• 60 x 60 mm HR tubular structure with cross members
•Integrated large membrane air spring for enhanced vibration isolation
•Optional front double door/cabinet for added functionality
•Adjustable natural frequency range (0.8 Hz to 1.2 Hz)
•Automatic leveling pneumatic vibration mounts for precise leveling

Dynemech's precision metrology anti-vibration tables and platforms are
specifically engineered to fulfill the exacting demands of a wide range of
applications, such as coordinate measuring machines, surface analysers,
interferometers, analytical balances, pharmaceutical laboratory
equipments , microscope, surface and contour measuring machines and
other sensitive metrology equipment. These technologies guarantee precise
measurements by effectively isolating vibrations, ensuring accuracy,
reproducibility, and dependability. This enables manufacturers and
research centers to meet the highest levels of quality and performance.
