Скачать или смотреть DECKEL MAHO DMG DMU 50 3 axis vmc HeidenHain MillPlus iT MACH4METAL 6678 2-3 zumverkauf forsale

https://mach4metal.com/en/machines/ch...

3-axis machining centre
DMG MORI - DMU 50
CNC Machining Centre 500 x 450 x 400 mm
MACH - ID 6678
Make: DMG MORI
Type: DMU 50

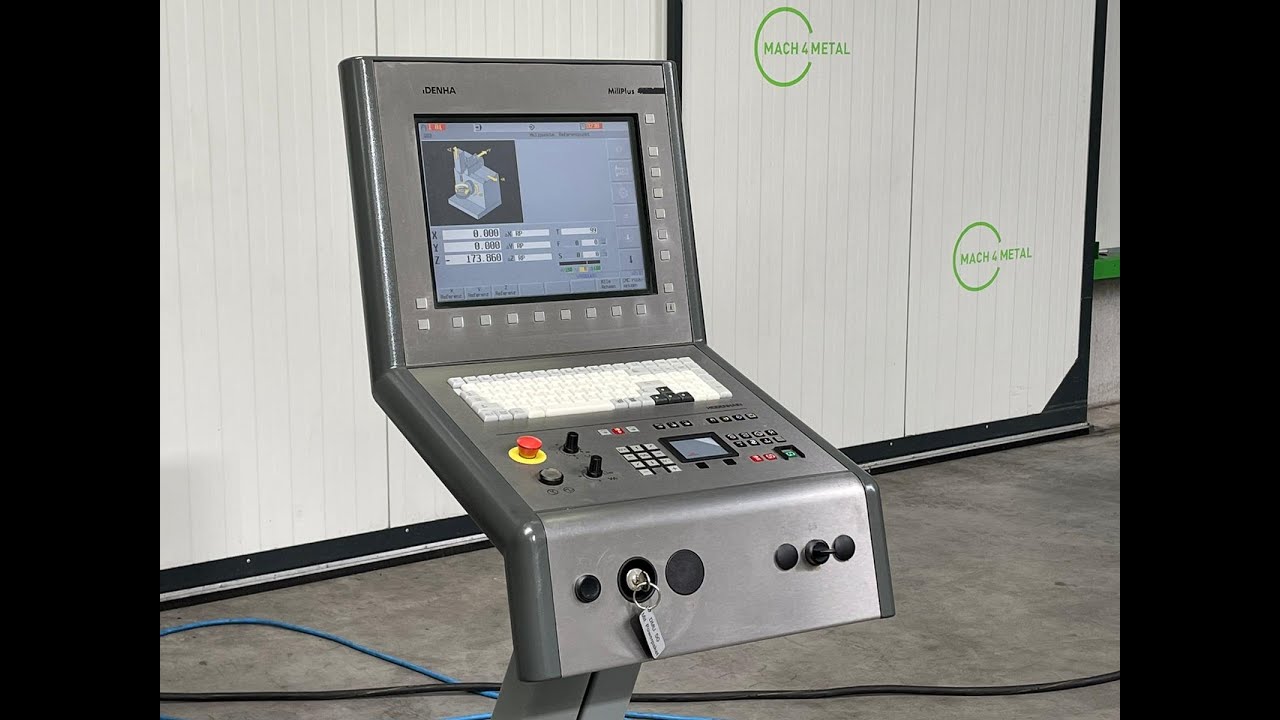

Control: Heidenhain Mill Plus
YOP: 2005
Hours: 1608
Specifications
US Standard Metric
X – Travel
500 mm
Y – Travel
450 mm
Z – Travel
400 mm
Table Length
700 mm
Table Width
500 mm
Table load
500 Kg
Feed rate X-Axis
10.000 mm/min.
Feed rate Y-Axis
10.000 mm/min.
Feed rate Z-Axis
10.000 mm/min.
Spindle Taper
40
Power on spindle
13
Speeds / ranges
10000
ATC / revolver
16
Number of controlled axis
3
Dimensions
Length
2.250 mm
Width
1.920 mm
Height
2.150 mm
Weight
3.920 kg
Downloads
https://mach4metal.com/en/dmg-mori-dm...
X – Travel: 500mm
Y – Travel: 450mm
Z – Travel: 400mm
Table Length: 700mm
Table Width: 500mm
Table load: 500Kg
Feed rate X-Axis: 10.000mm/min.
Feed rate Y-Axis: 10.000mm/min.
Feed rate Z-Axis: 10.000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 13kW
Speeds / ranges: 10000Rpm
ATC / revolver: 16
Number of controlled axis:3
Length: 2.250 mm
Width: 1.920 mm
Height: 2.150 mm
Weight: 3.920 kg

Please Note: The information on this page has been obtained to the best of our ability and belief from, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
