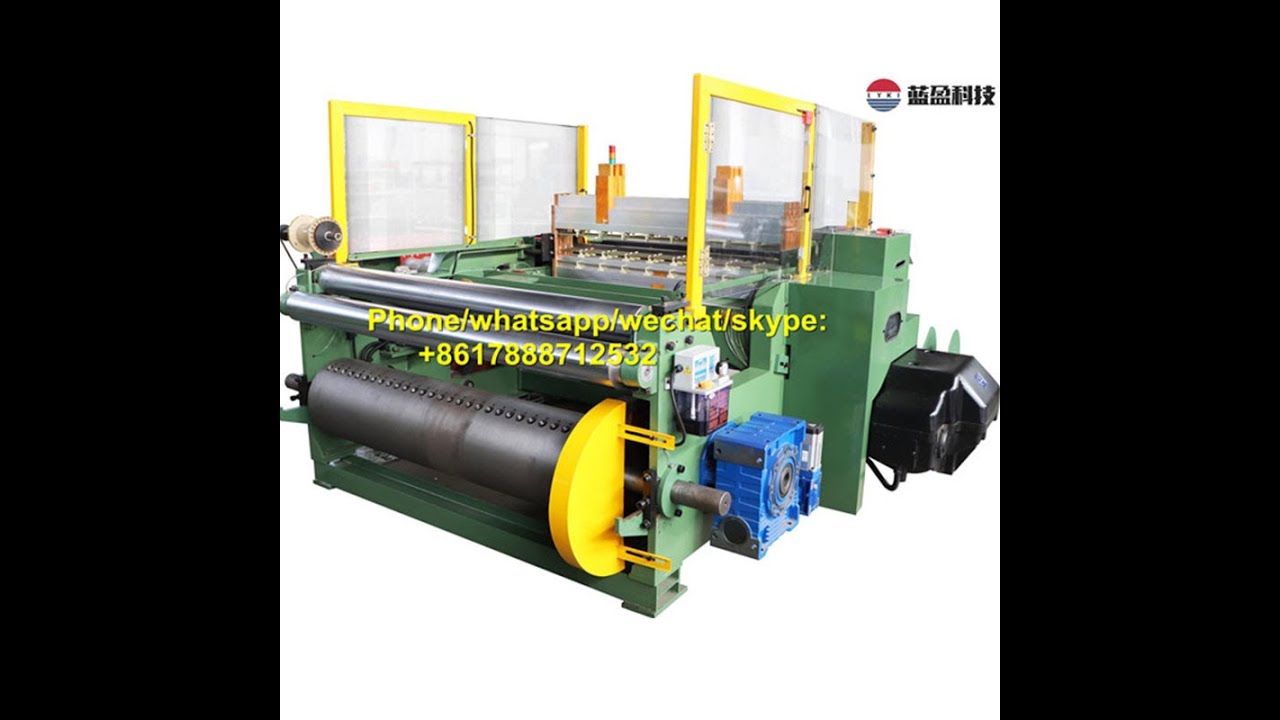

SG100 Series Light-duty CNC Wire Mesh Weaving Machine is suitable for weaving high quality fine mesh.

Basic Parameter:
1. Weaving width: 1000mm, 1300mm, 1600mm, 2000mm.
2. Wire diameter range: 0.03-0.3mm
3. Weaving density:
plain weave square hole 20-400 mesh; twill weave 600 mesh; dutch weave 3600 mesh (weft direction).
4. Speed: 120 (140 optional) RPM
5. Heald frame and form:three options are available (Tappet arch heald, rotating electronic dobby or servo dobby)
It can also be equipped with jacquard machine and 2-20 pieces of aluminum alloy heald frame (optional).
6.Basic tension: 15000 N/m.

Features:
1. High-performance servo drive
2. Weft insertion mechanism
3. Electronic dobby
4. Cam opening or external jacquard,etc,many kinds of opening mechanisms,
5. High steel rigidity beating-up mechanism
6. flexible and convenient operation system of large touch screen
7. High precision, fast rotation speed and low noise
8. It can weave different kind of wire mesh in different material , like stainless steel, iron, copper, brass, phosphor copper, aluminum, silver, platinum and so on .
