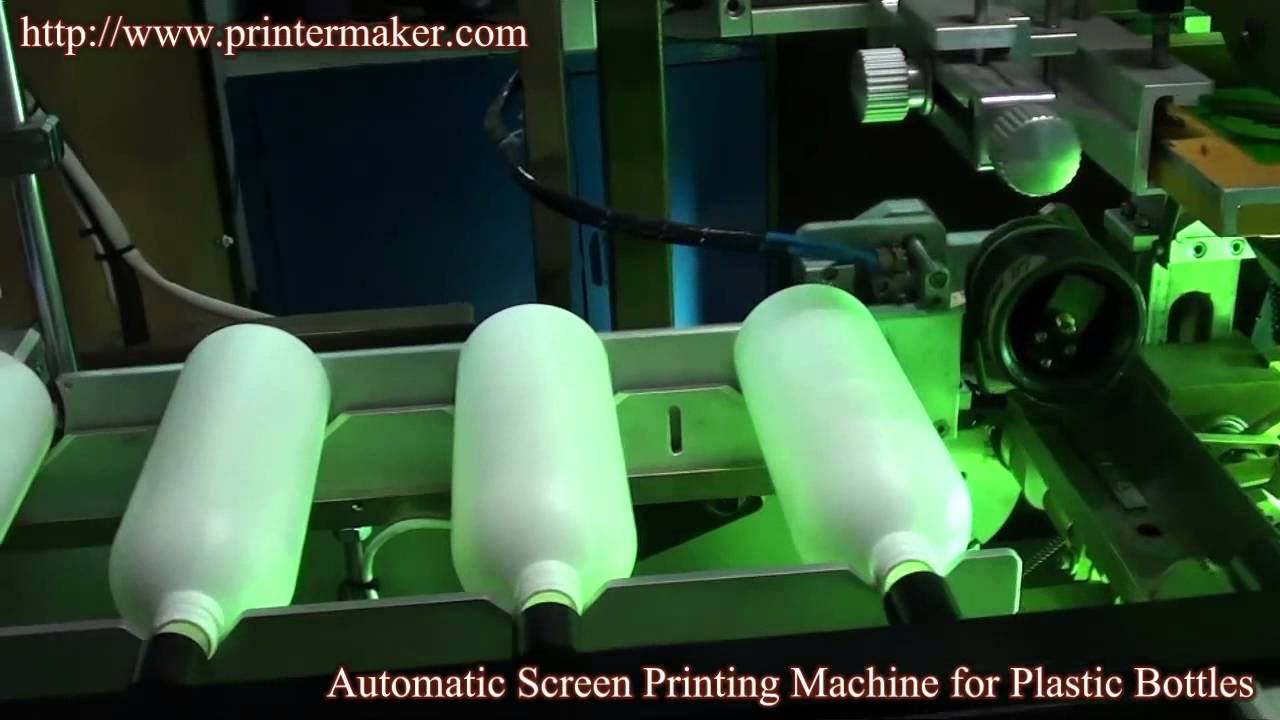

China Automatic Screen Prining Machine on Plastic Bottles
http://www.printermaker.com/Fully-Aut...
Fully Automatic UV Silk Screen Printing Machine on Sport Bottles
Machine Parameters:
1.Printing Speed Round: 4000pcs / hr Oval 5000pcs / hr
2.Printing Size: Round Diameter 20-100mm Length 25-270mm
3.Printing Length: Oval Width 25-120mm Length 25-270mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
6.Machine Dimension: 2550×1150×2150mm; uploading feeding belt size at 1700 length*90MM width; offloading belt size: 1700mm*90mm (optional)
8.Power Supply: 380VAC，3-PHASE，Unit 6.5KVA ; 220-240V, 3Phrases, 50-60HZ;
9.Offloading Belt Power rate: 220VAC，1-PHASE，0.2KVA
10.Packing Size:244*155*185CM
11.Gross weight:1000KG
12.Net Weight:900KG
13.Automatic bottle scramblers(loaders system) Pack Size: 181*161*160CM (Optional)

Application：
This multi-purpose fully-automatic polychromatic screen printer is applicable to print patterns on the surface of cylinders and oval cylindrical bottles. The colors can be either assorted or fixed by connecting a number of machines or separating machines to print so as to meet different customers’ needs to the most extent. The updated transmission design features being more stable, easier to switch to bottles of different shapes, and more flexible. Besides, its favorable price ratio will drive the product to be used by more and more small and medium-sized enterprises.
