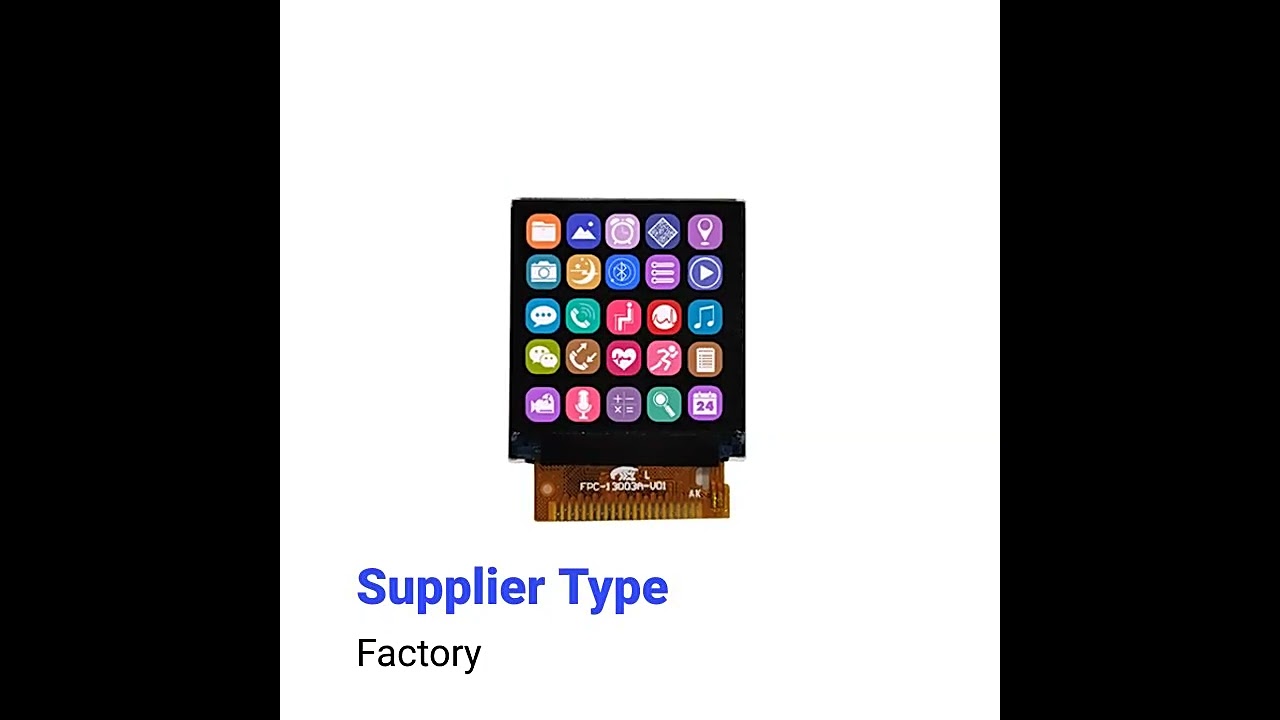

Скачать или смотреть Yousee Smart watch 240x240 1.3'' ips square lcd module 1.3 inch square tft lcd screen display

📌 General Information
LCD Type: a-si TFT
Display Size: 1.3 inch
Resolution: 240 x 240
Driver IC: ST7789V
Interface: MCU
Viewing Direction: IPS
Outline Dimensions: 26.2(W) x 29.22(H) x 1.94(T) mm
Active Area: 23.4(W) x 23.4(H) mm
Luminance (Lv): 300 cd/m²
Pixel Pitch: 0.0975(W) x 0.0975(H) mm

⚡ Electrical Characteristics
Analog Operating Voltage (VCC): 2.5V to 3.3V
Backlight Forward Voltage (Vf): 3.0V to 3.3V (Typical: 3.2V, If=40mA, Ta=25℃)
Logic Input Voltage:
High level (VIH): 0.7 x IOVCC to IOVCC
Low level (VIL): GND to 0.3 x IOVCC

🌡️ Environmental Ratings
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity: 90% RH (at 60°C)

🌈 Optical Characteristics
Contrast Ratio: 600 (Minimum)
Color Gamut: 50%
Response Time (Tr + Tf): 17.5 ms
