✅An inverter is a power electronic device that converts Direct Current (DC) into Alternating Current (AC). In electric vehicles (EVs), renewable energy systems, and various industrial applications, inverters play a critical role in ensuring that electrical energy is delivered in the correct form and frequency for efficient operation.

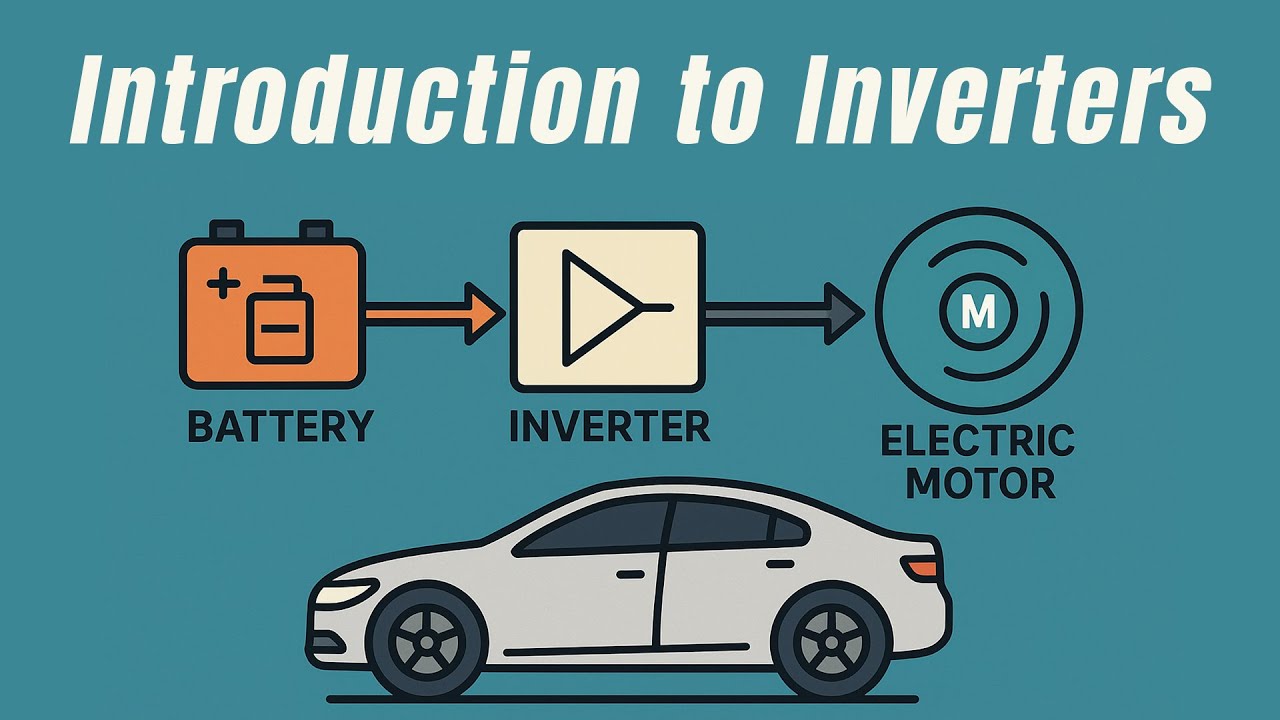

The inverter is a power electronic device that converts Direct Current into Alternating Current. It allows AC motors and appliances to operate from DC sources such as batteries, solar panels, or fuel cells. In electric vehicles, an inverter drives the traction motor by controlling the voltage, frequency, and power flow. Using semiconductor switches like IGBTs or MOSFETs, inverters generate high-quality AC waveforms through PWM, ensuring high efficiency of the motor and smooth delivery of torque. They also facilitate regenerative braking by converting the AC generated by the motor back to DC in order to recharge the battery. In modern times, the design of inverter topologies aims for high efficiency, low losses, and very good dynamic performance; this makes them a prime component in EVs, renewable energy systems, and industrial motor drives.
✅How an Inverter Works:
Inverters use semiconductor switches such as IGBTs (Insulated-Gate Bipolar Transistors) or MOSFETs to rapidly switch DC on and off, creating a pulse-width modulated (PWM) AC waveform. This synthesized AC waveform can then be filtered to produce a smooth sinusoidal output suitable for motors and appliances.
✅Key Functions of Inverters:
DC to AC Conversion: Enables the use of AC motors in EVs and supplies AC power from batteries or solar panels.
Voltage & Frequency Control: Adjusts motor speed and torque in motor drive applications.
Power Flow Management: In regenerative braking, the inverter converts AC from the motor back to DC to recharge the battery.
Energy Efficiency Improvement: Modern inverters ensure minimal switching losses and high output power quality.
✅Types of Inverters:
1) Voltage Source Inverter (VSI):Most common in EVs; provides stable voltage output.
2) Current Source Inverter (CSI):Less common; used in specialized industrial applications.
3) Multilevel Inverter: Produces smoother output with reduced harmonics, often used in high-power systems.
Applications:
Electric Vehicles (EVs): Drives the traction motor and supports regenerative braking.
Solar PV Systems: Converts DC from solar panels to AC for grid use.
Uninterruptible Power Supplies (UPS): Provides emergency AC power during outages.
Industrial Drives: Controls AC motors in manufacturing systems.
