Surface Development | Oblique Truncated Pentagonal Prism | ME Drawing | Diploma | WBSCTE | MAKAUT

#medrawing #engineeringdrawing #engineering #engineeringclasses #onlineengineering #onlineengineeringvideolectures #diploma #diplomainengineering #mechanicalengineering #3rdsemester

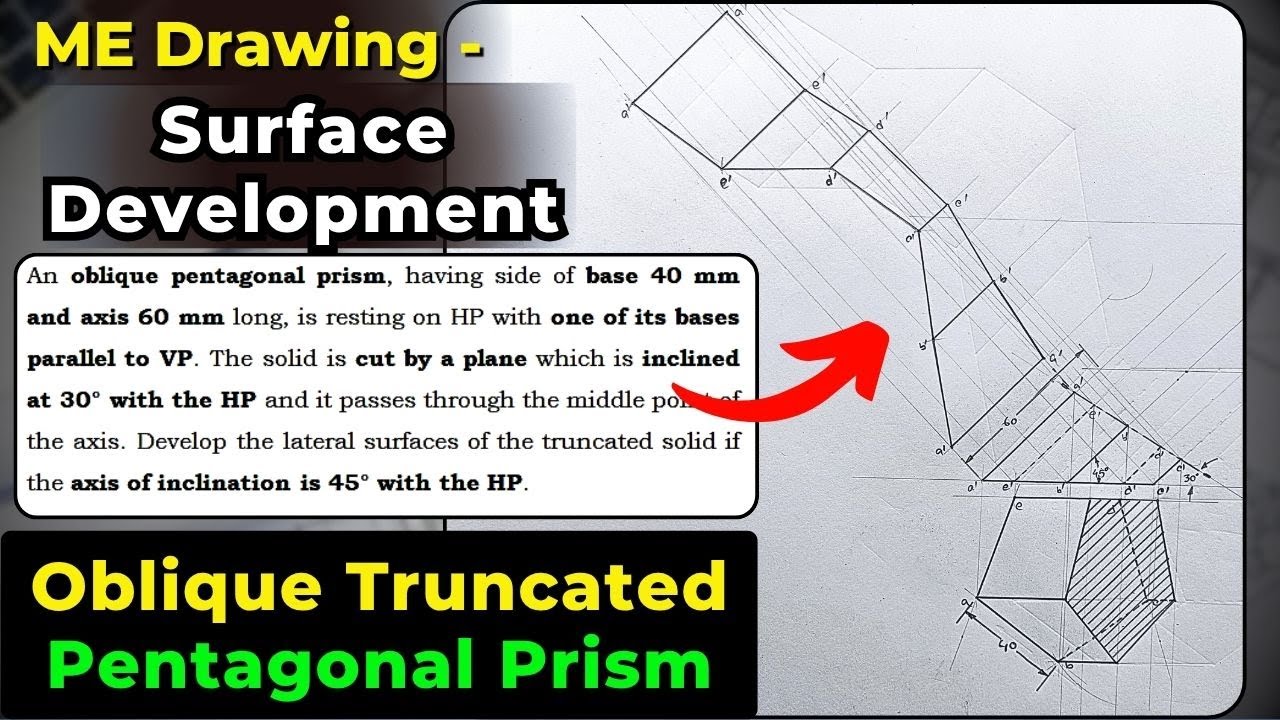

An oblique pentagonal prism, having side of base 40 mm and axis 60 mm long, is resting on HP with one of its bases parallel to VP. The solid is cut by a plane which is inclined at 30° with the HP and it passes through the middle point of the axis. Develop the lateral surfaces of the truncated solid if the axis of inclination is 45° with the HP.

A pentagonal prism, side of base 30mm and height of axis 60mm is resting on one of its base side on HP. Which is 50o inclined to VP. The rectangular face containing that side makes 45o to the HP. Draw the projections of prism
