Скачать или смотреть Fully auto size adjusting carton H format taping machine

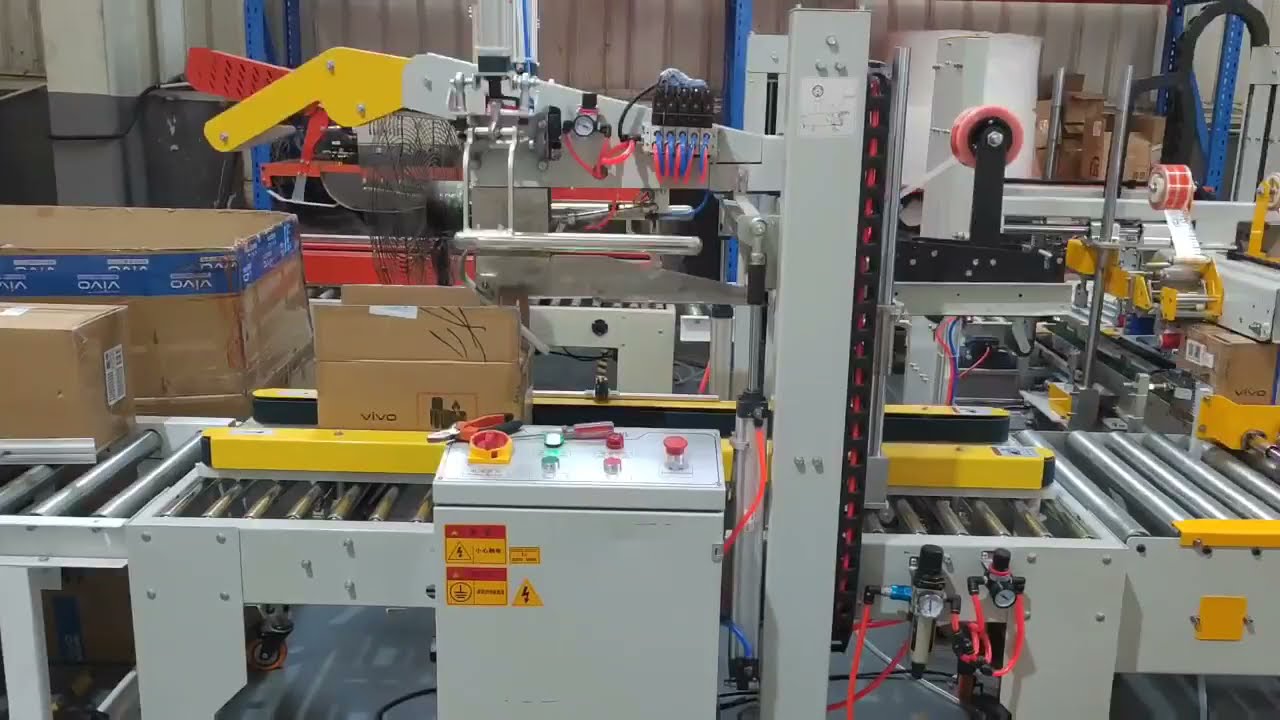

Fully auto size adjusting carton H format taping machine
Features:

■ It is derived from technology and adopts the brand Ruyang (Taibang) motor which is stable and durable. The tape applicator has a precise structure, smooth operation and long service life.

■ Automatically fold the lid and tape up and down to complete the one-time sealing.

■ Suitable for single-size carton operations at the same time.

■ Manually adjust the width and thickness when changing specifications.

■ The transmission mode is driven by upper and lower belts.

■ The height of the standard machine table is 620mm.

■ In addition to standard specifications, non-standard customization is acceptable.



Technical Parameters

Specifications Model AZ-500+AZ-500L

Minimum carton size L340W200H180MM (special specifications non-standard customization)

Maximum carton size L700+W500*H500MM (special specifications and non-standard customization)

Sealing speed is about 20m/min (6-10 boxes)

Applicable power supply 220V50HZ

Tape specification 2/2.5/3 inch (choose one)

Power consumption 0.8KW

Machine size L2450*W1910*H1500mm

Standard machine table height 620mm

Machine weight 520KGS

Applicable air source 6kgf/cm, 100nl/min
