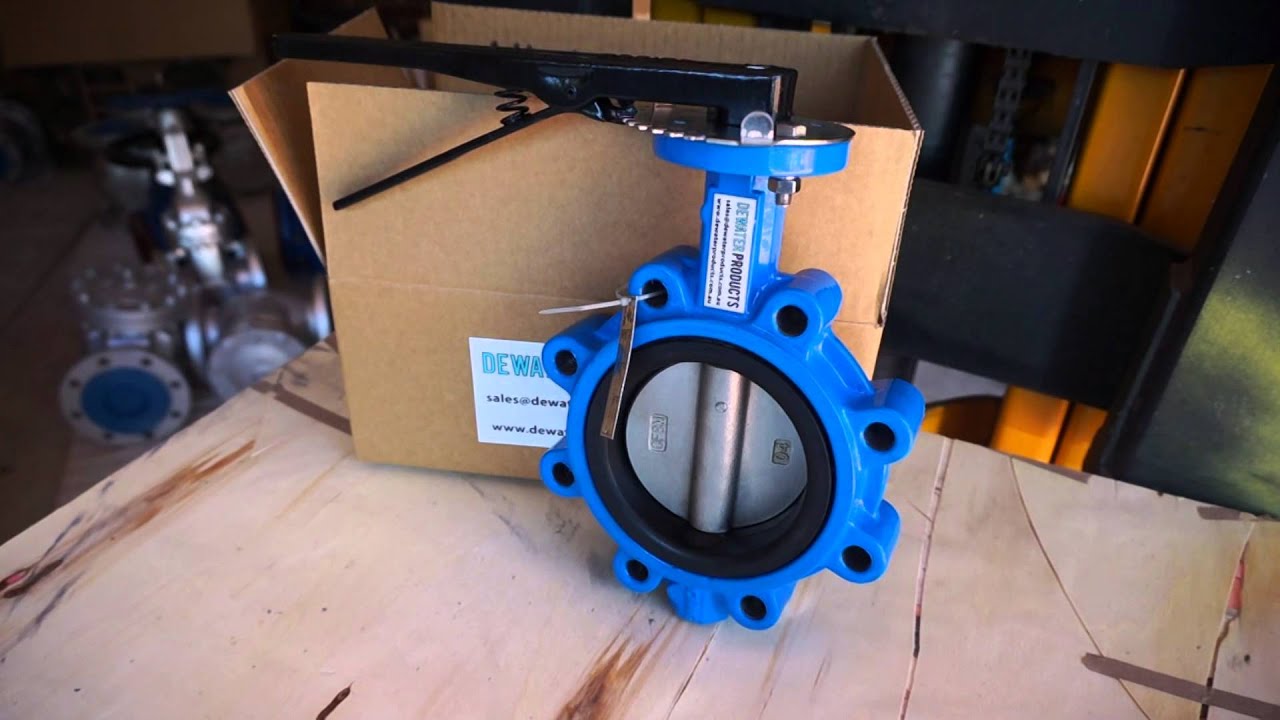

100mm Lugged Butterfly Valve (4") Table E/PN16 Lever operated.
Defender Valves are distributed in Australia by Dewater Products Pty Ltd.
The Lug type butterfly valve can be fitted to the end of a pipeline where there is no requirement for two pipeline flanges on each side of the valve. The lug type butterfly valve can be fitted between two pipe flanges with two sets of fasteners on each side of the valve screwed into the valve halfway.
Available from DEWATER PRODUCTS in Perth, Western Australia, email: [email protected] for more information.

The Butterfly Valve is a valve which has a disc that swings on a spindle shaft like a butterfly wing hence the name Butterfly Valve. The disc is mounted inside a pipe (valve body) in order to control flow and seal on a lining when closed. Connection varies depending on the valve type and can be wafer between the two pipe flanges, lugged to fasten onto a pipe flange, flanged, threaded and grooved. The Butterfly Valve is commonly opened and closed using a lever handle. In larger sizes above 200mm, then it is more common for a worm gear drive and hand wheel to be installed, as it allows for easier opening and closing for the operator. Larger Valves become harder to close with a lever handle because of the flow and volume of fluid moving in the pipe. The operator will find it much easier using a hand wheel, with geared reduction. Another common way for a butterfly valve to be opened and closed is with an Actuator. Actuators can be Pneumatic, Electric or Hydraulic. The cost varies for each type of actuator.
The seal material on butterfly valves are an important element for the correct function of a butterfly valve. The seal needs to withstand any potential damage from heat and chemicals being pumped. There are a range of seal materials available.
Our range of Butterfly Valves are CE approved, ISO approved, API-6D approved.

Dewater Products Pty Ltd supply Butterfly Valves in all sizes, types and classes. Please contact us if you require a certain type of Valve.
