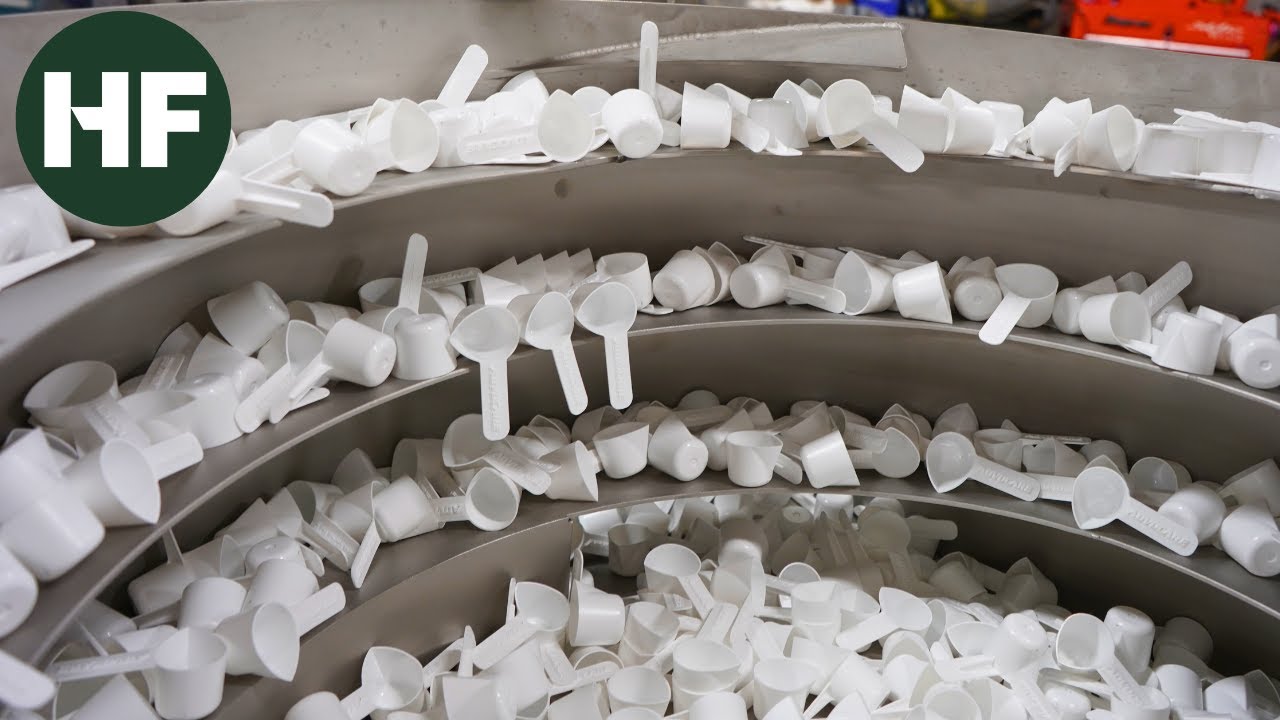

Скачать или смотреть Vibratory Feeder: 70 PPM Custom Scoop Orientation System with Holdback/Release Escapement Feature

🎯 Watch how we solved a complex dual-scoop feeding challenge with our custom 27" vibratory feeder system, achieving 70 parts per minute with consistent orientation.

The Challenge: Our customer required both scoop styles to be oriented horizontally, with the handle positioned down and away from the bowl center, exiting through a single horizontal discharge, all at a consistent rate of 70 parts per minute.

Our Custom Solution:
• 27" vibratory bowl feeder with integrated quick dump feature for fast changeover and jam recovery
• Tool steel track paired with inline drive system for maximum durability and smooth part transfer
• Holdback/release mechanism with part present sensor ensuring consistent, controlled flow
• Photocell shutoff system prevents overfeeding and enables autonomous operation
• Lexan dust cover maintains clean work environment and protects parts during operation

⏱️ Video Timestamps:
0:00 - Intro
0:08 - Overview of the system
0:12 - Thin down cam thins part level
0:19 - Orienting cam rotates parts
0:22 - Air jets orient parts
0:27 - Selector air jets reject misoriented parts
0:35 - Parts ride the selector rail to confinement
0:39 - Parts enter final select of the bowl
0:48 - Parts enter confinement
0:54 - Overview of the confinement stage
0:58 - Parts travel into the inline and through the high level sensor
1:02 - Parts are metered out through a holdback & release mechanism
1:09 - Overview of the system
1:13 - Outro

At Hoosier Feeder, we engineer custom automation solutions for complex part geometries and challenging orientation requirements, from scoops and caps to clips and unique components.
