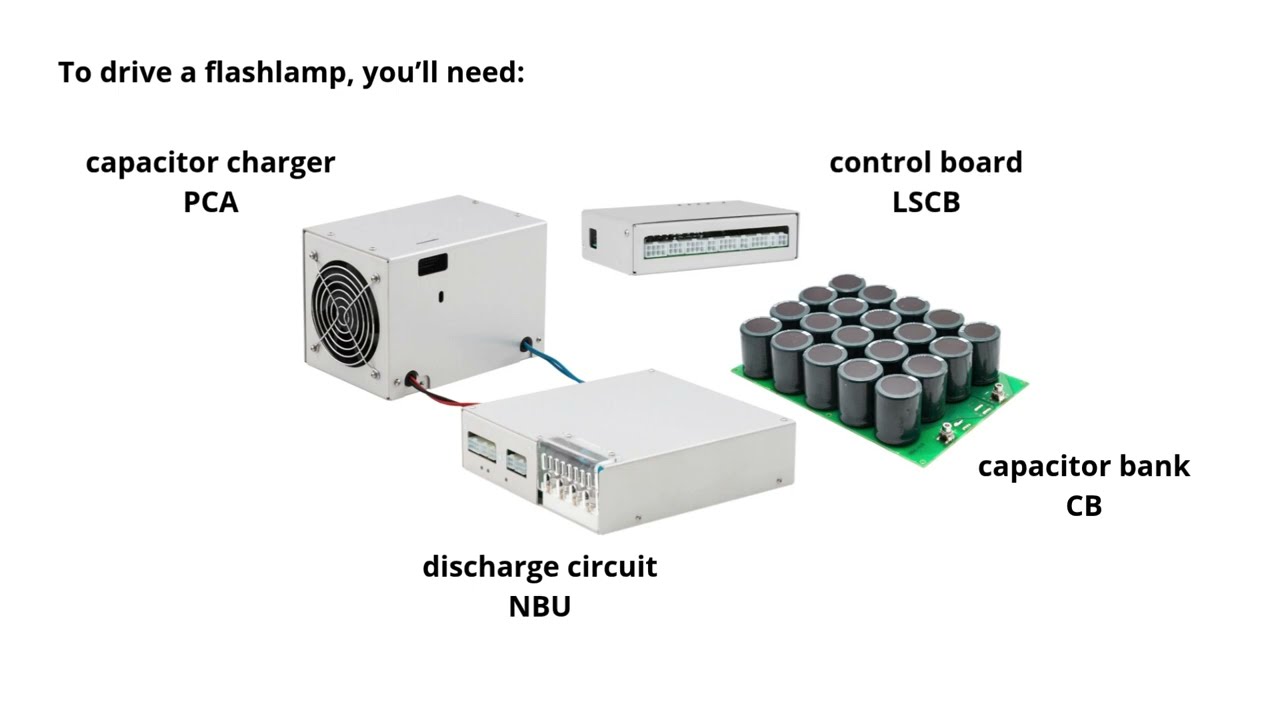

FLD-KIT is a set with everything you need to quickly create a suitable laser power supply with a pulsed pumping flashlamp. Develop and launch your laser or IPL system easy with a flexible set of modules.

Our product range includes capacitor chargers, discharge circuits, simmer supplies as well as separate and all-in-one power supply units, supporting various laser types such as Nd:YAG (long-pulse, ns, ps), Alexandrite, Ruby, Er:YAG, CTH:YAG, Nd:Glass, Ho:YAG, KTP.

Number of Driving Channels: 1 – 10+
Output Voltage: up to 1500 V
Output Current: up to 3000 A
Output Power: up to 8 kW
Various Input Options
Thyristor- or IGBT-based Discharge Circuits

The resulting power supply is able to charge a capacitor bank up to defined value, provides initiating flash voltage pulses with required width and repetition rate (in internal synchronization mode) or with required width (in external synchronization mode), maintains a simmer current during the interval between pulses.

We have composed some kits suitable for standard applications, our customers often asked for: https://www.oem-tech.pl/wp-content/up...

The LSCB connection diagram download: https://www.oem-tech.pl/wp-content/up...

https://www.oem-tech.pl/ - OEM Tech main page
https://www.oem-tech.pl/catalog/flash... - the product page
For figuring out pulse energy to the lamp, peak current, voltage on a lamp at the end of pulse, please, referr to our calculator page https://www.oem-tech.pl/resources/cal...
