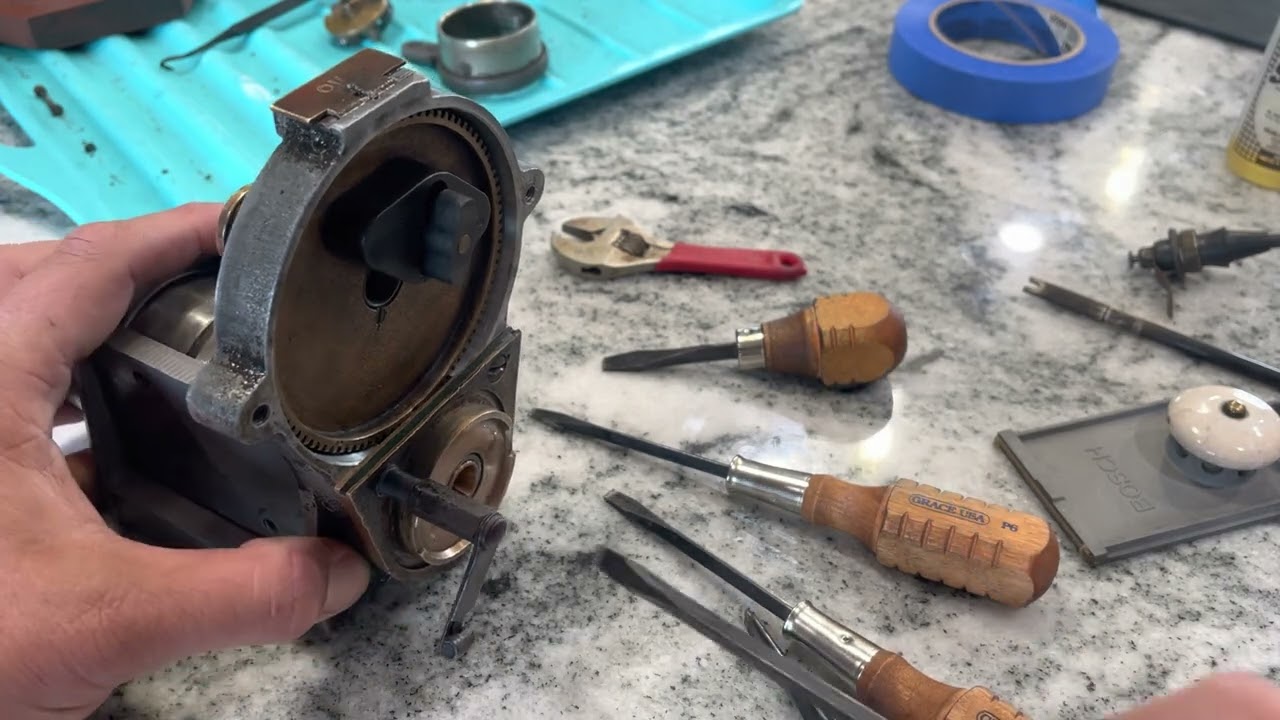

Скачать или смотреть Bosch DU4 magneto assembly for Model T Ford

Sorry for the camera work, not used to working with one lol

I had already started assembly when I started recording. Here I just finish assembly. I still have to install magnets back on the case, when I upload this video they’re drying right now from paint.

Still need to adjust point gap, and test. I have 4 older plugs I will connect and see if it throws a spark. I’ll try to remember to record that as well. Believe gap on plugs should be set at .18.

The magneto was damaged in shipping, but thankfully the seller had some extra good parts and sent them to me! Big shoutout to him for making it whole…he even sent me a physical reproduction manual! Really can’t wait to put this on the T and see what happens.

Another MTFCA member generously made me a linkage that will connect to my original spark control rod that runs along the steering column. Again, MTFCA is a great community!!! So when I get that in I’ll really be able to set it up properly. My carb is off being rebuilt by Snyders…so hopefully I’ll be able to get that back soon to do a test run.

Thanks! Any question let me know. I’m by no means knowledgeable on these as I’m flying blind…trying to learn as I go!
