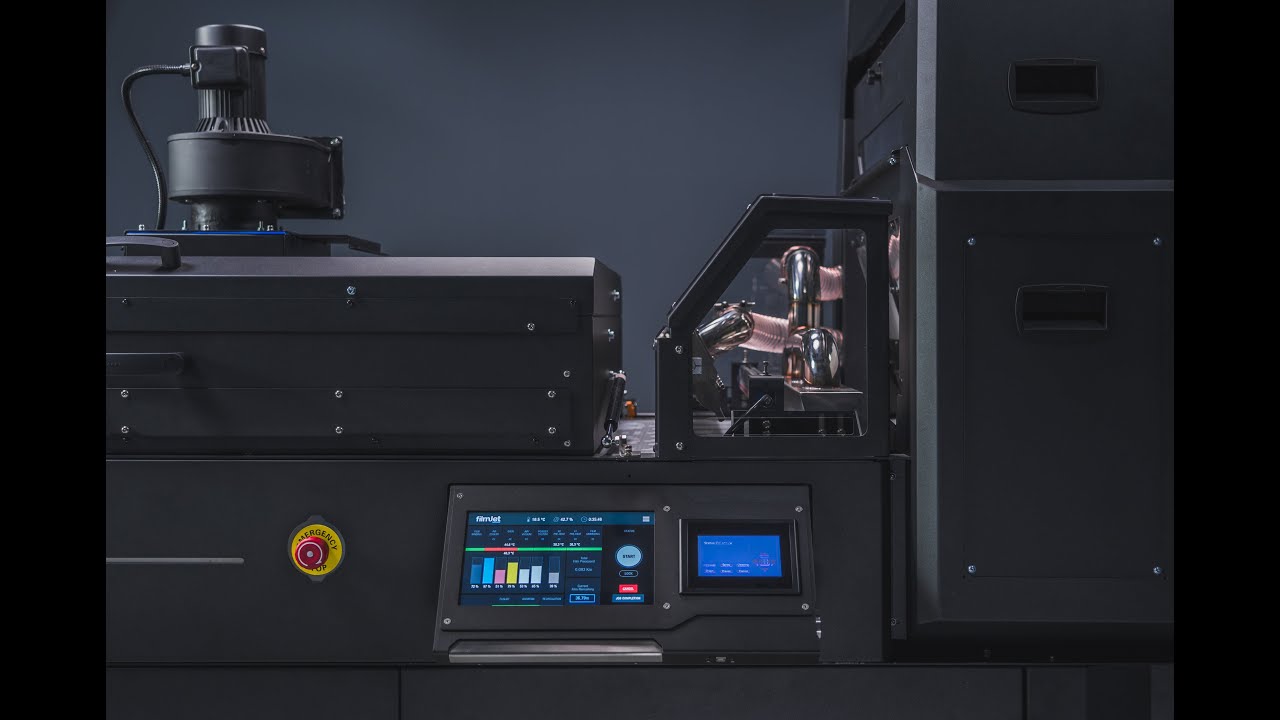

Скачать или смотреть Introducing the Polyprint Filmjet DTF Roll-to-Roll Printing System | Made in Europe | 258 sq ft / hr

Available at https://dtgpro.com/cicproduct/filmjet...

After years in development, the Polyprint Filmjet is finally here. Engineered and manufactured in Europe, the Polyprint Filmjet DTF System is a turnkey, smart-system automated roll-to-roll Direct to Film printing solution that minimizes user involvement, and maximizes efficiency and user safety all the while producing the best quality DTF prints on the market.

Filmjet is for DTF producers who are looking to scale up their operations, while benefiting from enhanced system stability, reliability, and productivity. Filmjet is the response to the industry’s demand for a reliable complete solution from a trusted manufacturer. Polyprint guarantees a smooth customer experience coupled with outstanding service and support.

Automated Technologies: Filmjet boasts a combination of integrated advanced automation technologies, industrial-grade printing speeds and features such as the Smart System-Control and the Constant Film Tension. Along with Auto Powder Recycling, these automations, ensure the protection of both the equipment and the print jobs, leading to substantial cost savings and trouble free workflow as well as user safety.

Main Features:

Smart System Control Monitors - all system processes and fully automates printer functions such as the activation/deactivation of the powder applicator and the dryer when needed, preventing print runs from damage. This ensures optimal energy savings and minimizes material waste.
Constant Film Tension - The motorized winding and unwinding system and the adjustable film pressure maintain consistent tension. This setup keeps the film aligned and flat, preventing sidewise shifting that could lead to issues during printing, powdering or the drying process.
Powder Application and Recycling - A fully automatic mechanism, equipped with a set of adjustable brushed rollers precisely applies regulated powder amount, ensuring uniform diffusion. Excess powder is recycled via an automatic system, transferring it to separate containers atop the central tank for reuse.
Air/Vacuum Powder Removal - An adjustable air vacuum, coupled with an "air knife", efficiently removes excess powder by redirecting it back into the suction area. Additionally, an antistatic bar neutralizes static electricity onto the film to prevent powder adherence and maintain cleanliness.
Ink Circulation and Agitation - Filmjet features automated systems for ink circulation (White) and agitation (CMYKW), ensuring consistent ink quality for optimal print head performance and smooth workflow. This guarantees high-quality output and superior printing results.
Multi-Zone Smart Curing - The dryer has four heating stages, each with independently controlled IR lamps, enabling various temperature profiles for optimal powder curing. A removable protective glass facilitates easy cleaning and prolongs lamp life. The system also features a built-in fume extractor.
4x i3200 Printheads (Staggered) - Optimal spacing between printheads ensures CMYK drying before White ink application, maintaining quality even in fast print modes through printhead overlap. Integrated printhead-guards protect against media damage.
Specifications:

All-in-One System (Printer - Powder applicator - Dryer)
PRINT HEADS: 4 x i3200 (2x CMYK - 2x White)
PRINT WIDTH: 60 cm (24 in)
INK SUPPLY: Bulk Ink with 2x 2lt White and 1lt CMYK tanks
PC REQUIREMENTS: Intel Core i5 or better CPU, 8 GB RAM, 1TB HD drive, 24" or larger monitor
POWER REQUIREMENTS: 3-Phase 380V 10kVA
OPERATING CONDITIONS: 20-25 °C (68-77 °F), 55-70% Relative Humidity
AUTOMATION FEATURES:
Smart System Control
Constant Film Tension
Auto Powder Application and Recycling
Air/Vacuum Excess Powder Removal
Multi Zone Smart Curing
Auto White Ink Circulation and CMYK Inks Agitation

SPEED - PRODUCTION:
360x1200dpi 2pass - 24m2/hr (258 sq ft / hr)
720x2400dpi 4pass - 18m2/h (193 sq ft / hr)
720x3600dpi 6pass - 14m2/h (150 sq ft / hr)
OVERAL DIMENSIONS: Width 71.3" (181cm), Length 133" (338cm), Height 86.6" (220cm)
(Delivered in two parts, each able to fit through standard doors)

WARRANTY: 1 Year Full Warranty (print heads included under warranty when original supplies are used)
