The EPF-30-TRN from Larson Electronics is an Explosion Proof Circular Fan that redirects and circulates air within hazardous locations. This 60Hz explosion proof fan meets UL standards for hazardous areas and provides a high 8,723 CFM output for effective airflow in larger spaces.

This 60Hz electric explosion proof circular fan is suitable for confined spaces and is approved for use within Class I Divisions 1 & 2 and Class II Divisions 1 & 2 hazardous locations. This fan features a high efficiency 1/4 HP motor which is fully encapsulated and a precision balanced, non sparking aluminum blade assembly for high output and protection against accidental ignitions. This fan has 30" propeller diameter and produces over 8,723 CFM of air output for excellent circulation of air in large areas. The EPF-30-TRN has an ambient temperature rating of 10°C to 40°C.

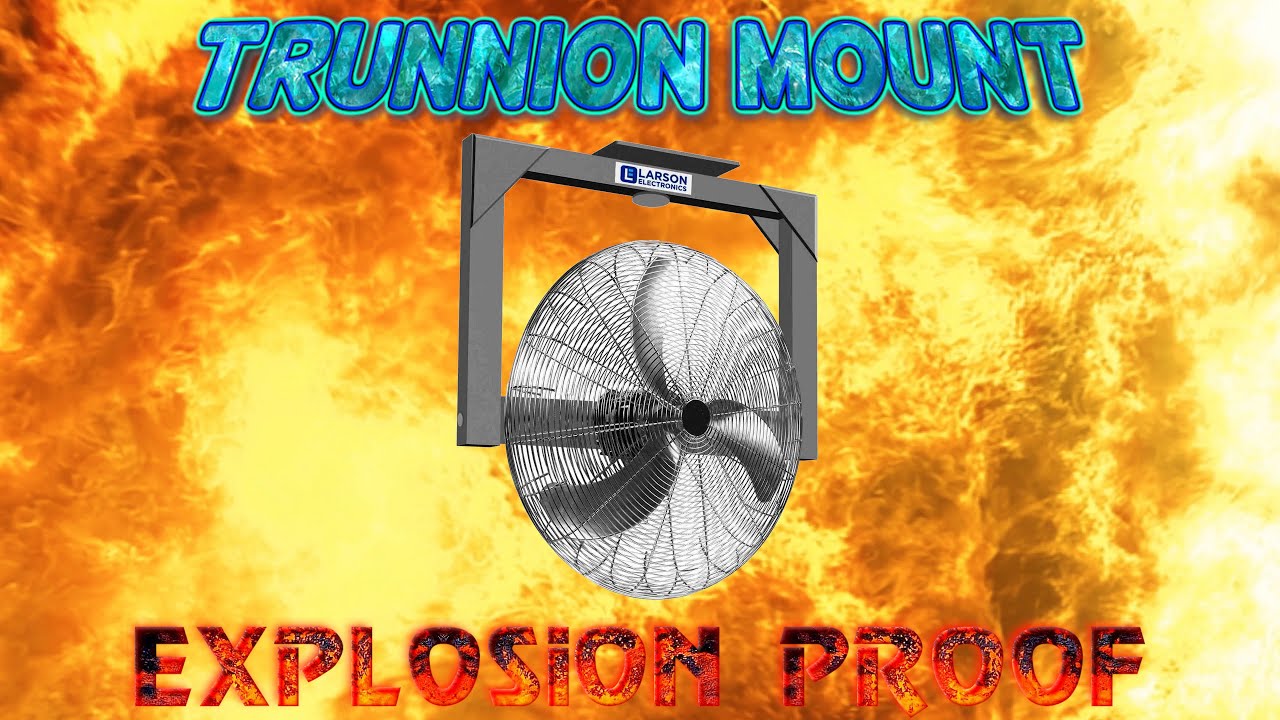

This fan is rated for single phase 115/230V 60Hz and operates at 1,140 RPM. A cast aluminum junction box houses the fan motor and allows for electrical connections to the fan. The EPF-30-TRN is equipped with a trunnion mount that allows it to be mounted to a wall, ceiling, floor or any other flat surface. The trunnion mount also allows the fan to be tilted in the desired direction after mounting. A 12` stainless steel safety cable is included with this unit.
