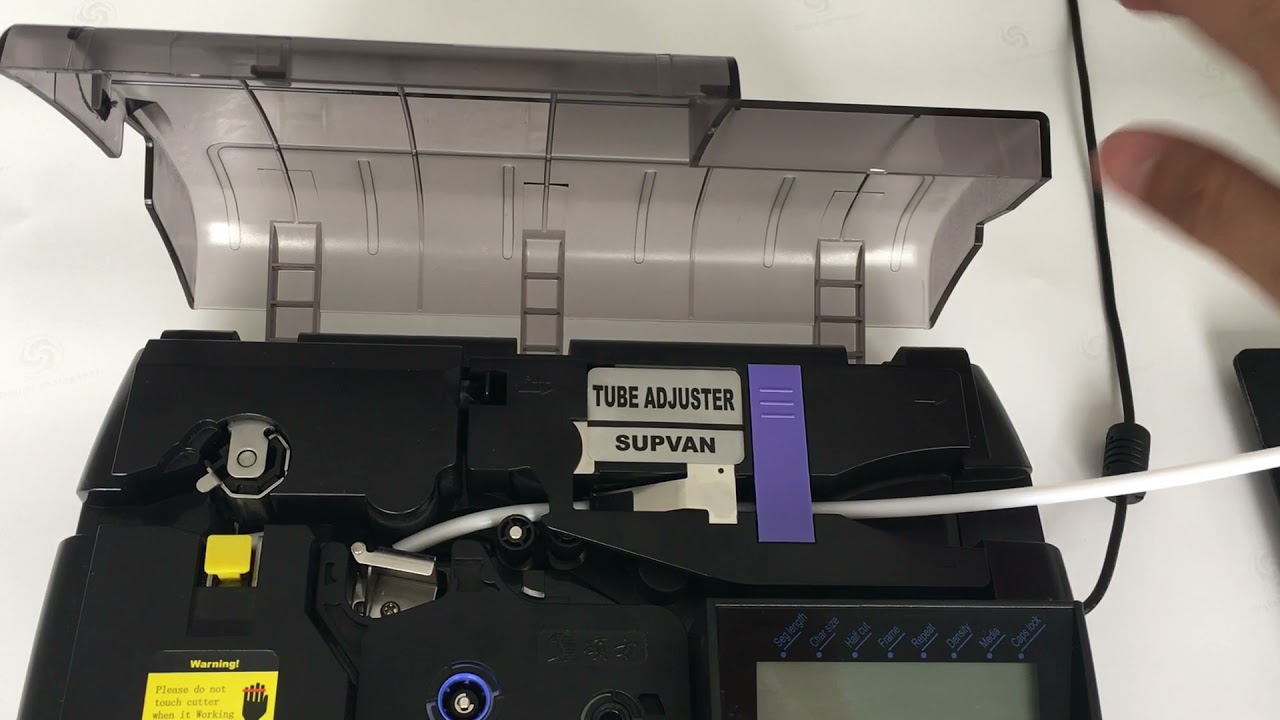

Скачать или смотреть [Installation Guide] Diameter 2.5-6mm PVC tube printing by Supvan Tube printer TP70E/TP76E/TP80E.

Software User guide download link: https://drive.google.com/file/d/1j49X...

Tube printer TP80E - specifications
printing on marking tubes with a diameter of 2.0 - 6.0 mm - oval and round marking tubes, shrink tubes
printing on self-adhesive labels of widths 6, 9 and 12 mm
printing on a flat plastic profile for wire marking sleeves
connectable to PC via USB port
possibility of printing national accents and graphics - when printing from software it is possible to print characters with national accents and any logo or symbol from your computer
printing barcodes from software
original software included - unlimited lifetime license, no need to not pay any fees for the software
hard plastic case included
thermal transfer printing - high quality and durability of labels and tubes
300 dpi resolution
print speed 25 mm/s
LCD display - 30 characters, 7 lines - can display up to 10 tubes/labels in two columns at the same time, which significantly increases clarity
7 font sizes
9 fonts - when printing from the software, it is possible to print any font from a computer
printing up to two lines (minimum diameter of the tube for two-line printing is 3.5 mm and minimum tape width 6 mm)
printing automatic number series 1-999 or 001-999
printing automatic alphanumeric series
print memory up to 2048 characters (no restriction when printing from a computer)
internal memory up to 200 files
possibility to transfer files using SD memory cards
automatic half-cut of the tube / labels
automatic full cut of the tube / labels
integrated tube cleaner
automatic tube / label detection
weight 3.2 kg
dimensions 320 x 280 x 100 mm
operating conditions 15 - 35°C
2-year warranty - we provide technical support and warranty and post-warranty service for tube markers
possibility to extend the warranty by 1 year
