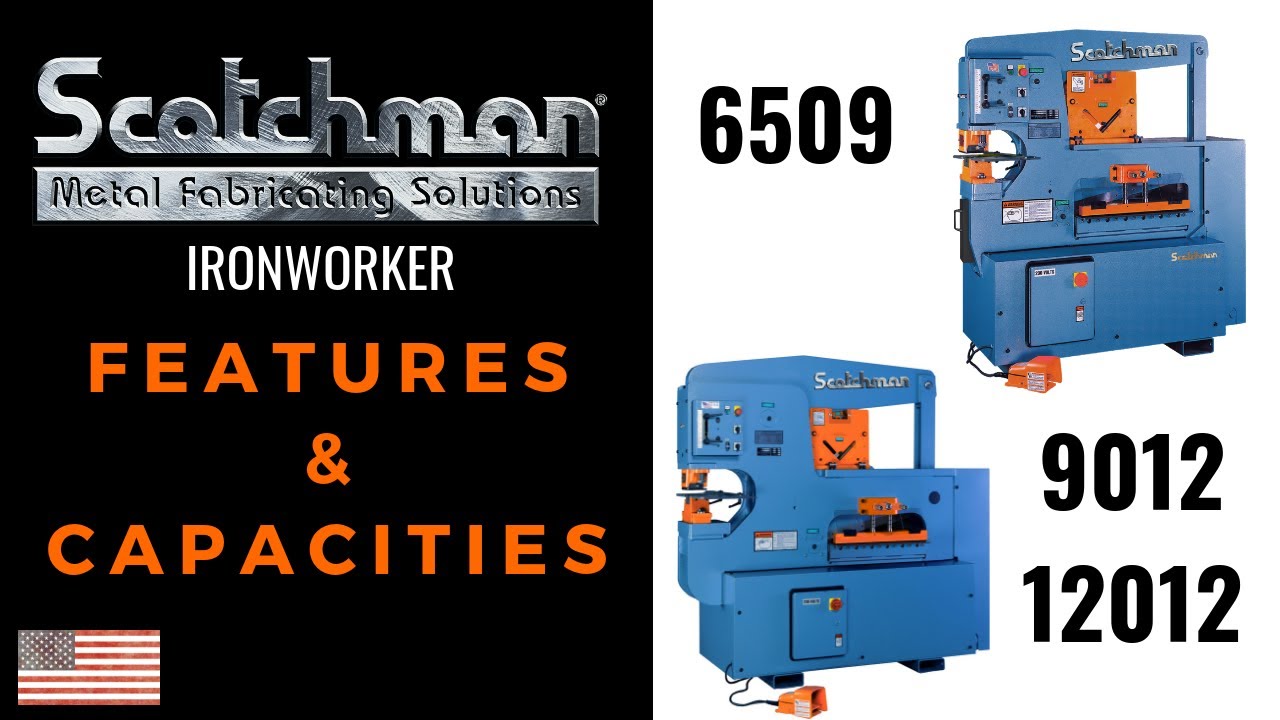

Скачать или смотреть FEATURES & CAPACITY of SCOTCHMAN Ironworkers - 65-ton, 90-ton, & 120-ton Component Tool Style Models

See the features, capcities, and tooling options for Scotchman 65-ton, 90-ton & 120-ton ironworker models. https://scotchman.com/ironworkers/com...

Proudly made in the USA, Scotchman builds the most versatile & dependable metal fabricating machines on the market. Easily punch, shear, and notch metal with a Scotchman ironworker, delivering consistent results for higher quality fabricated parts. ALL SCOTCHMAN IRONWORKERS are USA MADE & have a 3 YEAR WARRANTY. https://scotchman.com/ironworkers/

--------------------------------------------------------------------------------
6509- This 65-ton hydraulic ironworker can punch 1-1/16” in 3/4” thick, 65,000 tensile plate. It has the largest flat bar shear capacity and the largest angle shear capacity of any machine in its class. Combining this machine's large capacity with its large open tool table (which accepts up to a 24” press brake and up to a 5” channel shear) makes this machine the most versatile and flexible machine on the market. https://scotchman.com/ironworkers/com...

6509 - Punching Capacity: 65 ton (1-1/16" in 3/4")
Throat Depth: 9"
Flat Bar Shear: 24" Length (1" x 6"), (3/4" x 10"), (1/2" x 12"), (3/8" x 16") OR (1/4" x 24")
Opt. Saber Blade: (1" x 6") or (1/2" x 16")
Angle Shear 90°: (6" x 6" x 3/8") & (5" x 5" x 1/2")
Angle Shear 45°: (3" x 3" x 3/8")
(with Bar Shear) (4" x 4" x 1/2")
Brake 12": 40 ton
Brake 24": 30 ton
Open End Brake Max.: 1/4" x 5" (Flat or Angle Iron)
Pipe Notcher Schedule 40: (3/4", 1", 1-1/4", 1-1/2", 2")
Rectangle Notcher: 2" x 2-1/2" x 3/8"
90° V. Notcher: 6" x 6" x 5/16"
Channel Shear: 2" to 5" Adj.
Rod Shear: Round Rod (Max.): 1/4" to 1-1/4", 9 Cav.
Square Rod (Max.): 1/4" to 1", 1 Cav.
Square Tube Shear: 1/2" to 2", 12 ga.
Picket Tool: 1/2", 3/4", 1", 16 gauge
Motors Standard: 5 hp 3 ph (230/460, 208/380/575v)
USA MADE 3 year warranty
--------------------------------------------------------------------------------
9012 - If you are in the medium to large metal fabrication business, the Scotchman 9012-24M hydraulic ironworker will give you the greatest amount of versatility & flexibility. The Scotchman 9012-24M has a 90-ton Punch Station capable of punching a 1-1/16” hole in 1” thick, 65,000 tensile mild steel. The Flat Bar Shear is 24” wide with bar shear blades that can be rotated four times for maximum blade life. The Angle Shear; like all Scotchman angles shears, it is designed to give a distortion free cut. The 9012-24M hydraulic ironworker has the same large tool table design as the 6509-24M, allowing quick and easy change of optional tooling. https://scotchman.com/ironworkers/com...

9012 - Punching Capacity: 90 ton (1-1/8" in 1")
Throat Depth: 12"
Flat Bar Shear: 24" Length (1" x 8"), (3/4" x 12"), (1/2" x 16"), or (1/4" x 24")
Opt. Saber Blade: (1/2" x 22") and (3/8" x 24")
Angle Shear 90°: 6" x 6" x 1/2"
Angle Shear 45°: 3" x 3" x 3/8"
(with Bar Shear): 4" x 4" x 1/2"
Brake 12": 50 ton
Brake 24": 40 ton
Open End Brake: Max. 1/4" x 5" (Flat or Angle Iron)
Pipe Notcher Schedule 40: (3/4", 1", 1-1/4", 1-1/2", 2")
Rectangle Notcher: 2" x 2-1/2" x 3/8"
90° V. Notcher: 6" x 6" x 5/16"
Channel Shear: 2" to 6" Adj.
Rod Shear: Round Rod (Max.) - 1/4" to 1-1/4", 9 Cav.
Square Rod (Max) - 1/4" to 1", 1 Cav.
Square Tube Shear: 1/2" to 2", 12 ga.
Picket Tool: 1/2", 3/4", 1", 16 ga.
Motors Standard: 5 hp 3 ph (230/240, 208/380/575v)
USA MADE - 3-year warranty

-------------------------------------------------------------------------------------------------
12012 Scotchman Ironworker: Are you looking for an ironworker machine that can punch and shear 1” thick, 65,000 tensile plate? Scotchman’s 12012-24M is the machine for the job. The Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. https://scotchman.com/ironworkers/com...

12012 - Punching Capacity: 120 ton (1-1/2" in 1")
Throat Depth: 12"
Flat Bar Shear: 24" Length (1" x 12") (3/4" x 20") or (1/2" x 24")
Angle Shear 90°: (6" x 6" x 1/2")
Angle Shear 45°: (3" x 3" x 3/8")
with Bar Shear: (4" x 4" x 1/2")
Brake 12": 83 ton
Brake 24": 65 ton
Open End Brake: (Max. 1/4" x 5" ) Flat or Angle Iron
Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", & 2"
Rectangle Notcher: 2" x 2-1/2" x 3/8"
90° V. Notcher: 6" x 6" x 5/16"
Channel Shear: 2" to 6" Adj.
Rod Shear: Round Rod (Max.) 1/4" to 1-1/4", 9 Cav.
Square Rod (Max.) 1/4" to 1", 1 Cav.
Square Tube Shear: 1/2" to 2", 12 ga.
Picket Tool: 1/2", 3/4", 1", 16 ga.
Motors Standard: 5 hp 3 ph (230/460, 208/380/575v)
USA MADE - 3-year warranty
----------------------------------------------------------------------
