Qualification testing for new and existing antenna products designed by Southwest Antennas includes extensive physical testing to ensure our products are built to withstand harsh deployment scenarios.

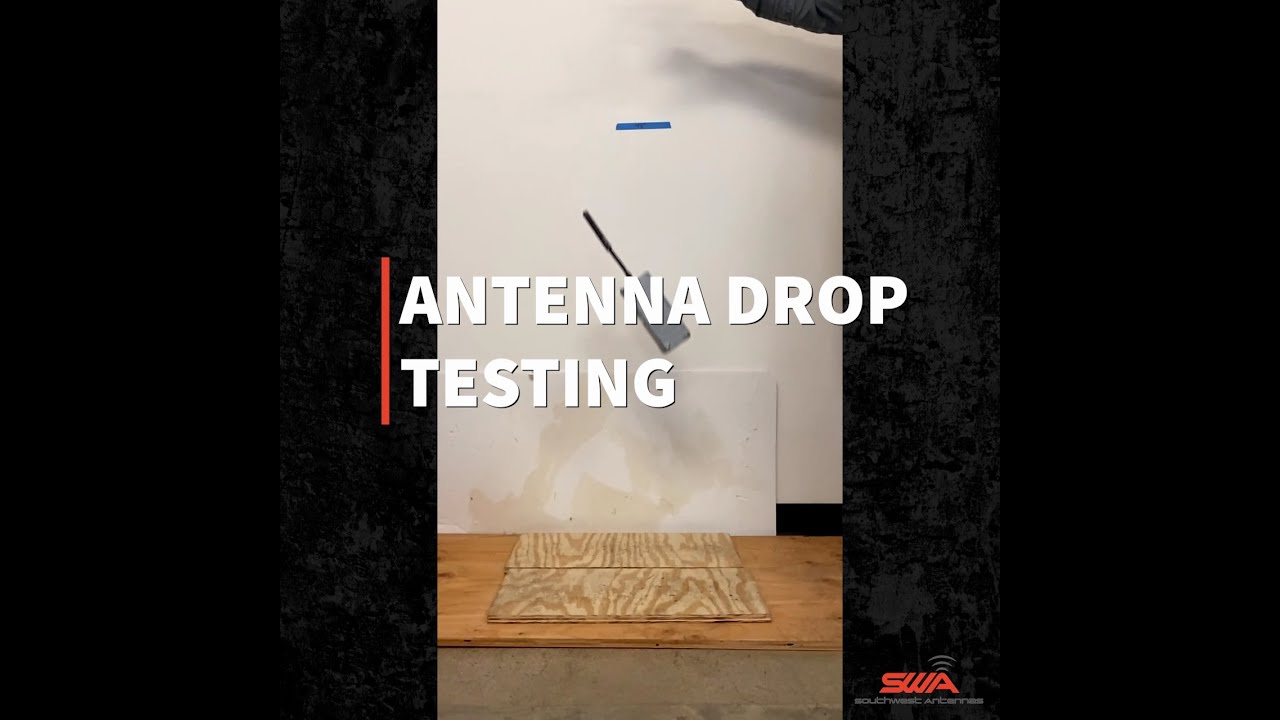

One such test is our Transit Drop Test: MIL-STD-810H, Test Method 516.8, Procedure IV which includes a 48" drop onto 2-inch thick plywood backed by concrete.

Antennas are fully tested prior to drop, then run through a number of drop test cycles at various angles while connected to a weighted base to simulate an attached radio chassis.

After each drop, the antenna is assessed for physical damage. After the entire test cycle is complete, each antenna is then tested again for RF performance and inspected for signs of physical failures, such as broken glue or solder joints, kinked flex arms or RF cables, and other identified points of failure.
