Tile Mate is a little square-inch, very thin Bluetooth tracker. It can easily be hooked up to any of your valuables, and then with your Phone, you can track the item.

CE logo is not correct so I am not sure if this is the original or clone. From inside circuitry looks original.

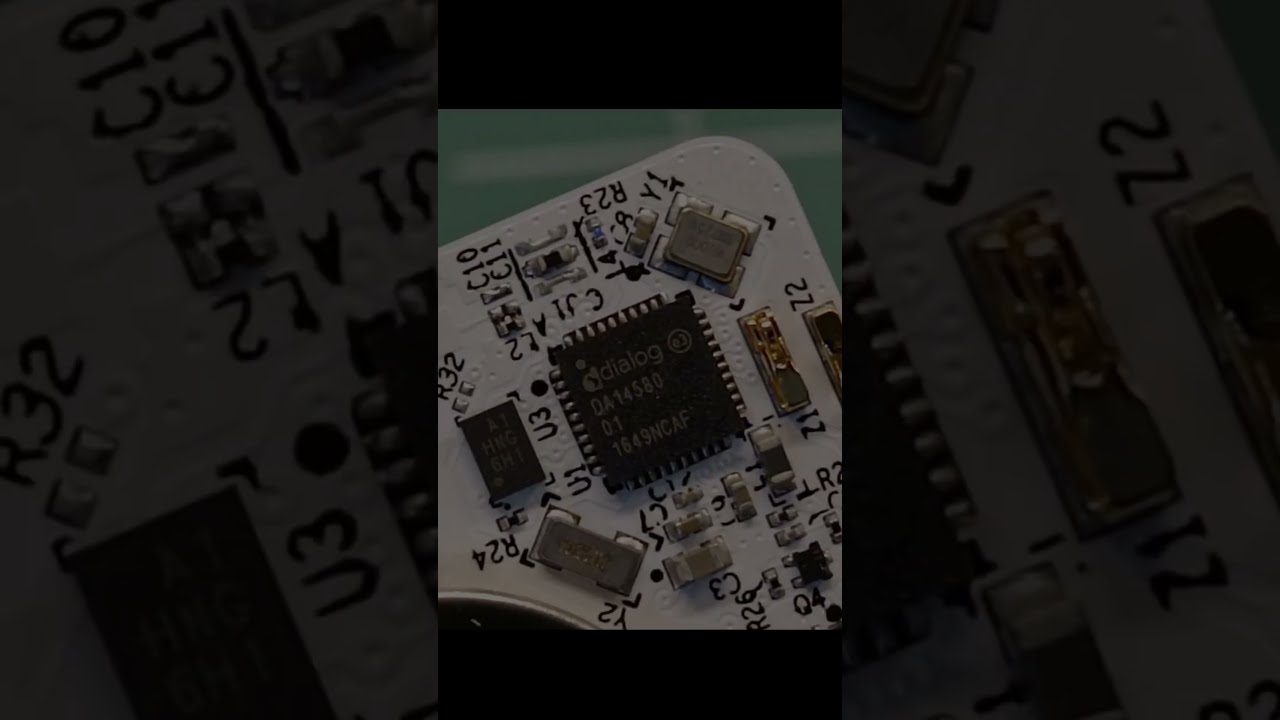

When you open the tile tracker, you will find a small PCB with coin cell battery (Maxell CR2025 3V), one Piezo buzzer is connected to the PCB using two spring pins.

Main controller is Dialog Semiconductors Ultra low power Bluetooth SoC DA14580.

There are 3 more chips used on the PCB but I was not able to find out which IC details by their part numbers. My best guess is these chips could be for Memory storage, power supply.

Back side of the PCB doesn’t have much just the test points.

Hope you will learn something new today!
