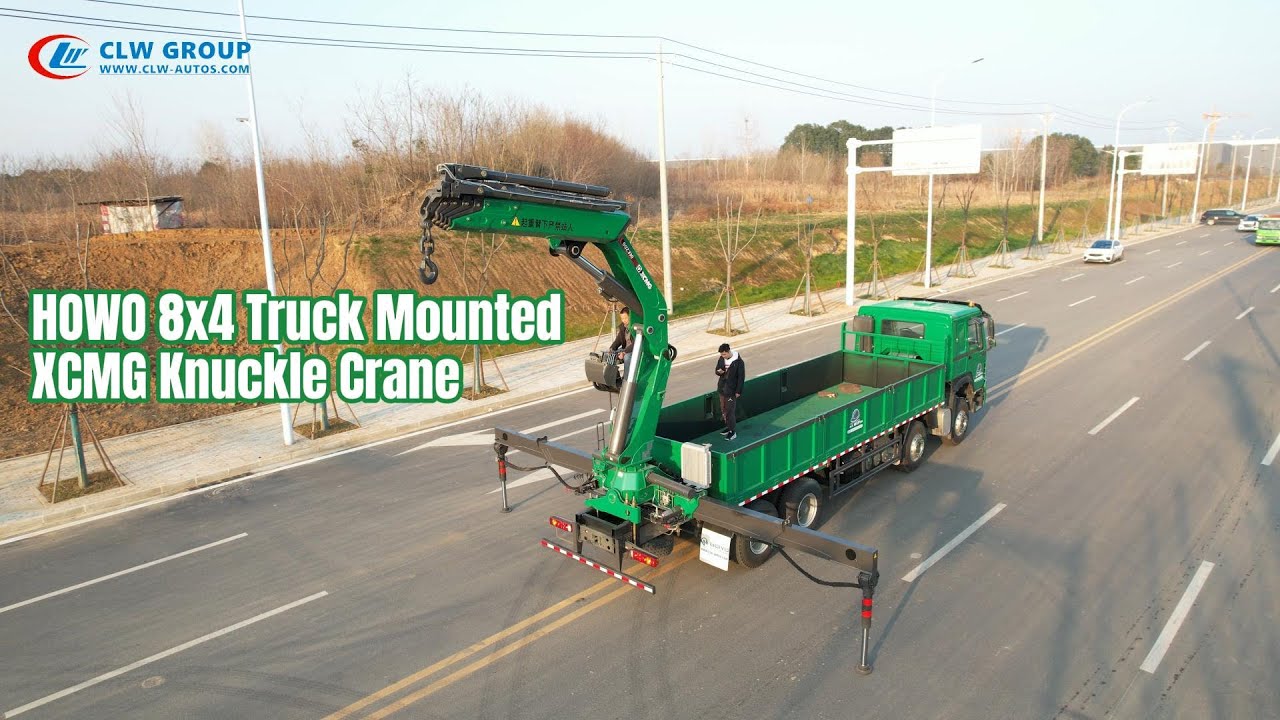

The Sinotruk HOWO 8x4 35-40 Ton Cargo Truck Mounted with XCMG 16-Ton Knuckle Boom Crane is a formidable heavy-duty combination vehicle engineered for maximum versatility in material handling, logistics, and construction. It integrates the high-payload capacity of a Sinotruk HOWO 8x4 dump truck/cargo chassis with the precision and flexibility of an XCMG 16-ton-meter knuckle boom crane. This configuration creates an all-in-one solution for self-loading, transporting, and placing heavy materials and equipment, drastically reducing dependency on external cranes and loaders.

1. Sinotruk HOWO 8x4 Heavy-Duty Chassis
Model: Sinotruk HOWO ZZ series 8x4 configuration (e.g., ZZ3317/ZZ3407)

Engine: WEICHAI or MAN technology turbo diesel, 350-420 HP, compliant with China VI / Euro V emissions

Transmission: 10-speed or 12-speed manual transmission (HW series gearbox); optional automatic

Drive Configuration: 8x4 (four axles, rear two axles driven) for excellent traction and load distribution

GVWR (Gross Vehicle Weight Rating): 35,000 - 40,000 kg (35-40 metric tons)

Cargo Payload Capacity: 20,000 - 25,000 kg (after accounting for crane and body weight)

Cab: High-comfort sleeper cab, air conditioning, ergonomic controls, designed for long-haul operation

Suspension: Front multi-leaf spring; rear heavy-duty reinforced parabolic spring or air suspension (optional)

2. XCMG 16-Ton-Meter Knuckle Boom Crane
Model: XCMG SQ16ZK5Q or SQ16SK5Q series (16 ton-meter capacity rating)

Type: Hydraulic telescopic folding knuckle boom (articulated jib).

Maximum Lifting Capacity: 16,000 kg·m (e.g., 5,300 kg at 3 meters radius).

Maximum Reach: 18 - 22 meters (with main boom and telescopic/offset jib fully extended).

Slewing: Full 360° continuous rotation via high-capacity slewing ring.

Control System: Advanced electro-hydraulic proportional controls with Load Moment Indicator (LMI), anti-two-block system, and overload protection.

Outriggers: Four (4) or Five (5) heavy-duty, hydraulically operated outriggers (box-section or H-type) with large pads, providing a wide, stable footprint.

3. Cargo Body Configuration
Body Type: Flatbed or Dump Body (Tipper). The flatbed is standard for general cargo; the dump body is optimal for bulk materials.

Flatbed Dimensions (Typical): Length: 7.6m - 8.6m; Width: 2.4m - 2.5m.

Dump Body Capacity (Typical): 16 - 20 cubic meters (heaped).

Body Material: High-tensile steel for durability.

Tie-downs: Integrated heavy-duty D-rings or logistics tracks on flatbed.

4. Hydraulic & Power Systems
Crane Power Source: Typically a PTO (Power Take-Off) driven hydraulic pump from the truck's engine. An independent diesel power pack is a critical optional upgrade, allowing crane operation while the truck engine is off, saving fuel and reducing wear.

Hydraulic System: Dedicated high-pressure system for crane functions (slewing, telescoping, lifting).

Control Stations: Dual controls - (1) Integrated cabin on the crane turntable, and (2) Wireless remote control (up to 100m range) for safe operation with optimal visibility.

5. Safety & Stability Features
Crane Safety: LMI system with visual/audible warnings, automatic safe load control, emergency stop.

Vehicle Safety: ABS, exhaust brake, and optionally ESC (Electronic Stability Control).

Stabilization: Outrigger interlock system prevents crane operation unless outriggers are properly deployed and leveled.

Lighting & Visibility: LED work lights on crane and body, 360° warning beacons, rear-view camera system.

Primary Applications
Construction Material Handling: Self-loading and transporting steel coils, rebar, pipes, concrete blocks, and scaffolding.

Logistics & Freight: Loading/unloading heavy machinery, containers, and palletized goods onto the truck bed without external equipment.

Infrastructure Projects: Ideal for road, bridge, and utility work where materials need to be lifted and placed in tight spaces.

Warehousing & Yards: Moving heavy items within a storage yard or loading dock.

Emergency Services: Recovery and lifting operations for accident scenes or natural disasters.

Keywords: HOWO 8x4 Crane Truck, XCMG Knuckle Boom Truck, 40 Ton Cargo Crane Truck, Self-Loading Truck, SQ16 Crane Carrier, Construction Material Handler, Multi-Function Heavy Truck.

Power to Load. Strength to Haul. Precision to Place.
The Sinotruk HOWO 8x4 with XCMG 16-Ton Knuckle Boom Crane is the ultimate force multiplier for heavy logistics and construction. It empowers a single operator and vehicle to complete the entire cycle of pick, carry, and place, delivering unparalleled efficiency and capability for the most demanding jobs.
