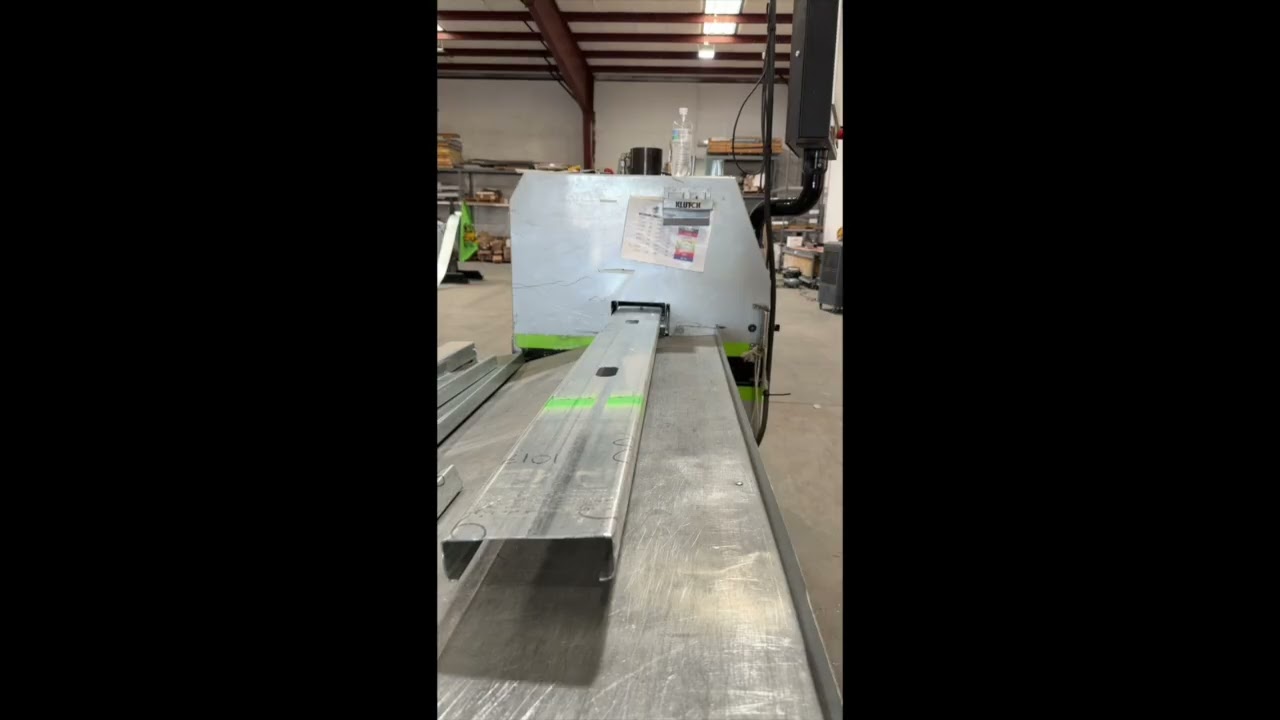

Скачать или смотреть Framecad TF550H Roll Former, 2021 - 3MT HD Powdered Decoiler

Profile Width (Web): 3.5" to 6"
Profile Height (Flange): 1.33" to 2"
Material Thickness: 0.037" to 0.078"
Roll Forming Stations: 13
Punching Stations: 12
Maximum Line Speed: 4,430 feet per hour
Typical Production Speed: 985 to 1,970 feet per hour
Main Drive Power: 15 HP
Hydraulic Power: 10 HP
Machine Dimensions: 256" L × 44.5" W × 63" H
Machine Weight: 10,630 lbs
Labeling: Dual printer heads for part identification

Framecad 3MT HD Powered Decoiler
Coil Capacity: 6,600 lbs
Coil Width Range: Typically supports up to 12"–14" wide coils (varies by profile)
Drive Type: Motorized feed (powered decoiler)
Frame: Heavy-duty reinforced steel
Integration: Designed to feed TF550H continuously at full line speed
