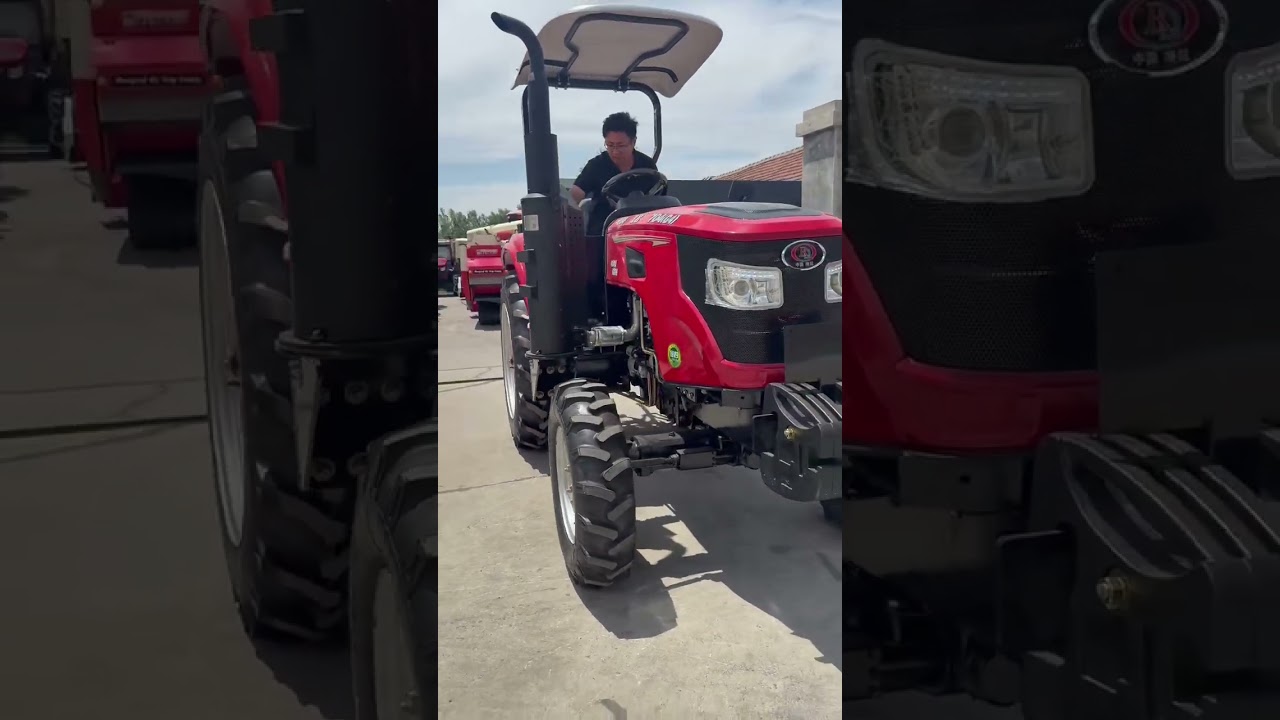

Скачать или смотреть Tractor Suspension System 704

The suspension system of tractor 704 usually refers to the suspension device equipped with 704 model tractors, which is generally a three-point rear suspension and belongs to Class II suspension. The following is a related introduction:
Suspension type and characteristics: 704 tractors mostly use a three-point rear suspension system, which consists of two upper connection points and a central lower connection point.

The upper connection point is usually located at the rear of the tractor and connected to the two support points of the farm implement, while the lower connection point controls the lifting and lowering of the farm implement through a hydraulic system.

This suspension system has good stability and easy operation, and is suitable for a variety of agricultural machinery such as tillers, plows, and seeders.

Lifting capacity: The lifting capacity of the suspension system of 704 tractors of different brands and models varies. Taking the John Deere 704 tractor as an example, its suspension system has a lifting capacity of ≥13 kN at 610 mm behind the suspension point, which can meet the suspension and lifting needs of a variety of farm implements.

Adjustment method: When installing, if you use a narrow or semi-suspended implement, you need to install the implement vertical rod in the center of the tractor; if you use a wide implement or work on hard soil, you can choose the installation position 80mm to the right of the tractor's longitudinal axis.

During the installation process, make sure that the implement mounting point is in a horizontal position and fixed, and adjust the limit chain length so that the lateral swing range of the vertical tie rod tail does not exceed 20mm.
