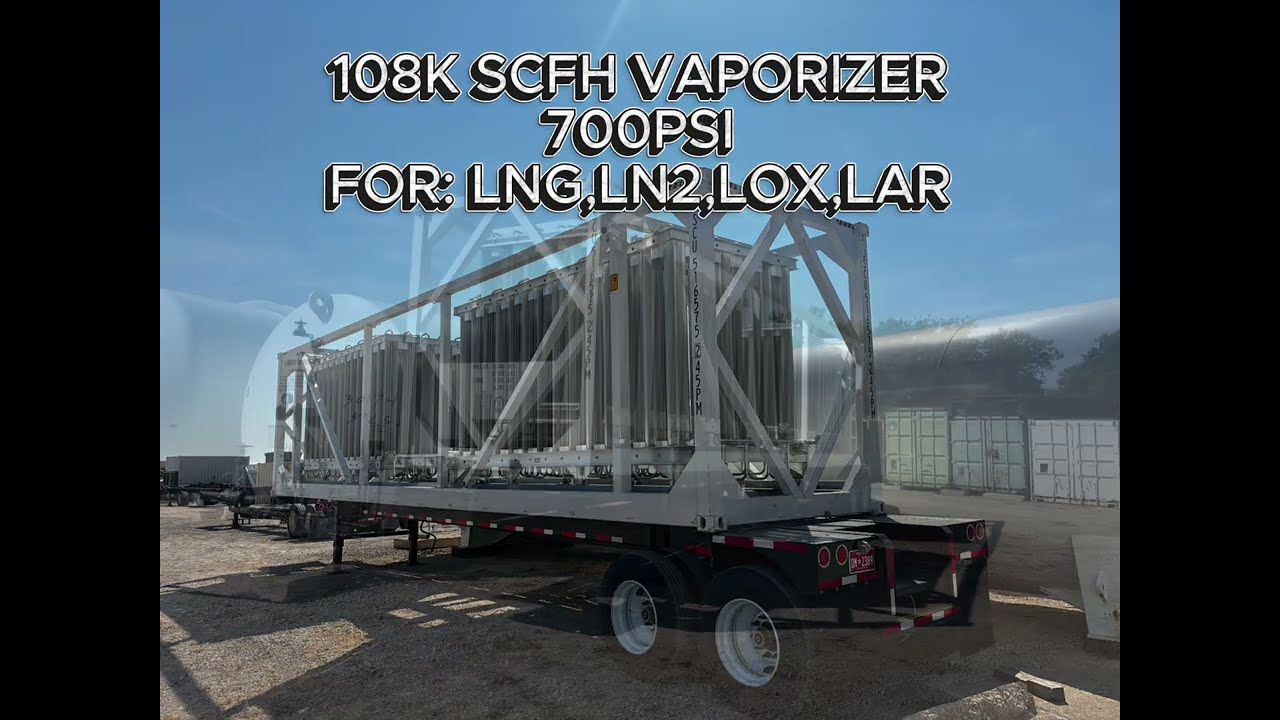

Скачать или смотреть 108K SCFH VAPORIZER 700PSI FOR: LNG, LN2, LOX, LAR

This system includes two HBVP-54K Ambient Vaporizers mounted in a single skid, engineered for the efficient vaporization of cryogenic liquids into gas form. Designed for industrial gas, medical gas, and energy applications, these vaporizers are suitable for liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAR), and liquefied natural gas (LNG).

Constructed from all-aluminum alloy materials, the HBVP-54K units provide durability, corrosion resistance, and superior thermal efficiency. The design incorporates Alloy 6063 extrusions, Alloy 6061 structural members, and Alloy 5052 piping components. Each vaporizer is supported by a welded skid base with a crimped fin array for maximum thermal flexibility. Wide 12-inch fin spacing with a 4-inch air gap optimizes heat transfer, while 8-fin and 16-fin, 8-inch diameter extrusions with internal fins increase surface area. The units are equipped with 1-1/2” ANSI CL300 RF W/N flange connections for secure integration.

The vaporizers are built to ASME B31.3 compliance for process piping standards, with a maximum allowable working pressure of 700 PSIG. They are designed to meet seismic standards per ASCE/SEI 7 for the San Jose, California region and have a wind load rating of 120 mph.

Performance includes an outlet temperature designed at a 20°F approach to ambient. All units are cleaned, sealed, and oxygen-tagged per FinnCo Procedure P-113 in compliance with CGA G-4.1. Skid dimensions measure 118 inches by 100 inches by 99 inches, with a total skid weight of 3,120 pounds.

The dual HBVP-54K Ambient Vaporizers are ideal for industrial gas distribution systems, LNG regasification facilities, hydrogen fueling stations, medical oxygen supply systems, and operations in steel manufacturing, food processing, and the electronics industry.
