Скачать или смотреть HY| Automatic Rotary OPP and BOPP Hot Melt Glue Labeling Machine |HYHM- R

Automatic Hot Melt Glue PET Water Bottle Labeler

◆Multi-language product names
贴标机. آلة وسم Pealdise aplikaator Апликатор за етикет Aplikator etykiety Apparator til etiket Applikator für Etiketten маркировочная машина Machine d 'étiquetage Merkin applikaattori 스티커 applicator voor etiketten aplikátor štítku Aplicatorul etichetei Aplicador de rótulo ラベルアプリ Applicator för etiketter aplikator nalepke ติดป้าย Calcomanías Μικροεφαρμογή ετικέτας Címke applikátor Applicatore dell ’etichetta Ứng dụng nhãn 貼標機

☛Introduction

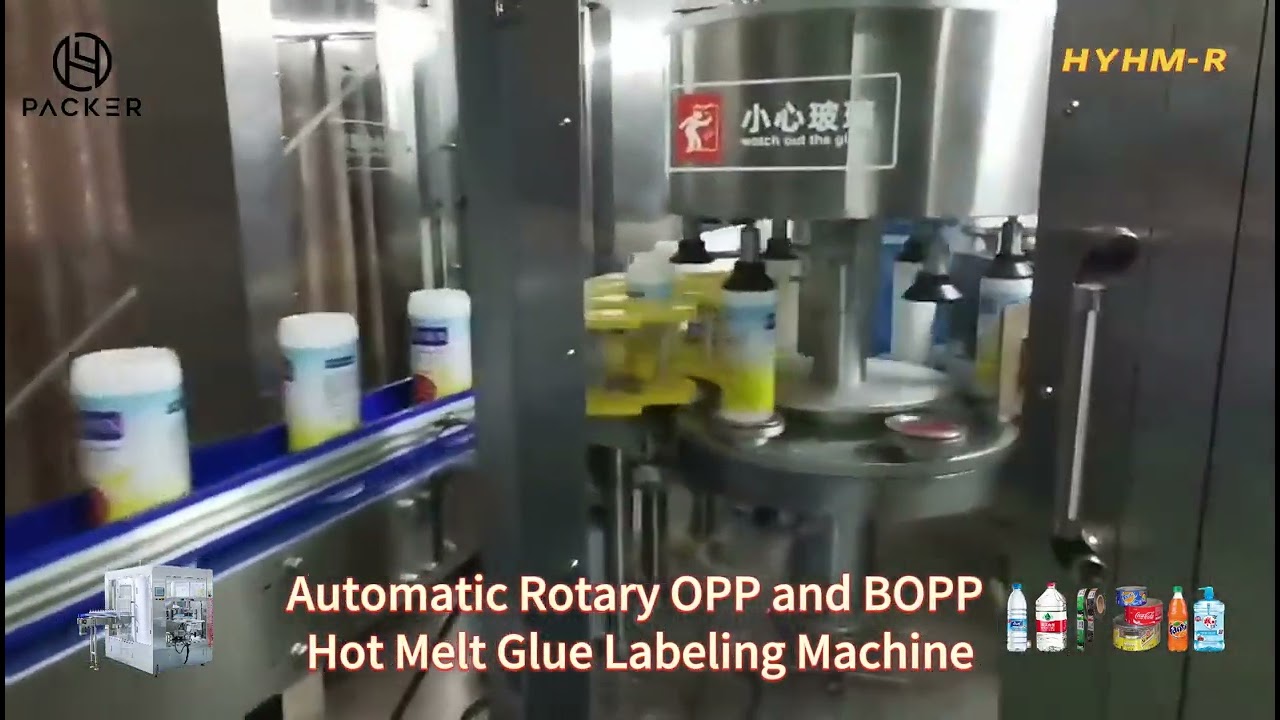

This hot melt adhesive OPP labeling machine is a new type of rotary and continuous labeling machine. The equipment can automatically adjust the inlet and outlet transmission of the container; The containers conveyed by the conveyor belt are separated by a certain distance by the bottle separating screw according to the spacing of the star wheels, then the imported star wheels convey the containers to the container turntable, and after the containers are fixed by the bottle pressing mechanism and the mold base of the containers, the containers start to rotate at a certain speed; Mechanical pre-positioning in the process of product rotation; And carry out positioning and labeling according to the track of the mechanism.
When the container reaches the electric eye detection position, the computer host controls the label delivery system to deliver the label, and after a label delivery action is completed, the high-speed cutter cuts off a label; Because Sanyo small inertia high-speed servo motor is adopted, the accuracy and stability of high-speed bid sending and cutting are ensured.
The cut label is sent to the gluing system; In this part, the system glues the front and rear edges of the label, which makes the consumption of hot melt adhesive the lowest.
When the glued label is turned to the labeling position, the label can be accurately and effectively adhered to the container. Because the container is in a rotating state during the label conveying process, the label can be stably and tightly attached to the container. The adhesive tape at the glue tail can form a good label lap seal, thus completing a labeling process. Suitable for labeling OPP/bopp hot melt adhesive, film label, paper-plastic composite film, label, paper label on plastic, metal, glass and other round containers. Labeling stations: 12, 15, 18, 24, 30, can be specially designed according to customer requirements.

☛Technical parameter
Labeling heads:12, 15, 18, 24, 30pcs
Labeling capacity:8000-32000pcs/hour
Labeling glue:Hot Melt Glue
Glue temperature:120～160℃
Labeling accuracy:±0.5 mm
Label material:OPP / BOPP
The inner diameter of label roll:152 mm
The outer diameter of label roll:600 mm(max)
The suitable size of label:Width 40-210 mm, length 300 mm (max)
The suitable size of labeling objects:Can be customized
Operating direction:Left or Right
Air pressure:0.6Mpa
Total Power:8kw
Power supply:AC220V/380V/415V/440V, Three phases. Globally customized
Net weight:About 1900kg
Machine size:190×200×200cm
#bottlelabelingmachine #hotmetlgulelabelapplicator #honeybottlestickerlabelingmachine

----------------------------------------------------------------------------------------------------------

▷WHO WE ARE
Hengyuan Machinery Equipment Co., Ltd. is a professional manufacturer of standard or customized filling machine, capping machine, labeling machine, bottle unscrambler, packing machine, etc. The goal of our business is to provide optional and trustworthy solutions to our customers in time. We owns professional team and technology to ensure the best machine quality and best after-sales service. Meanwhile the complete production line is also can be customized according our customers' requirements.
