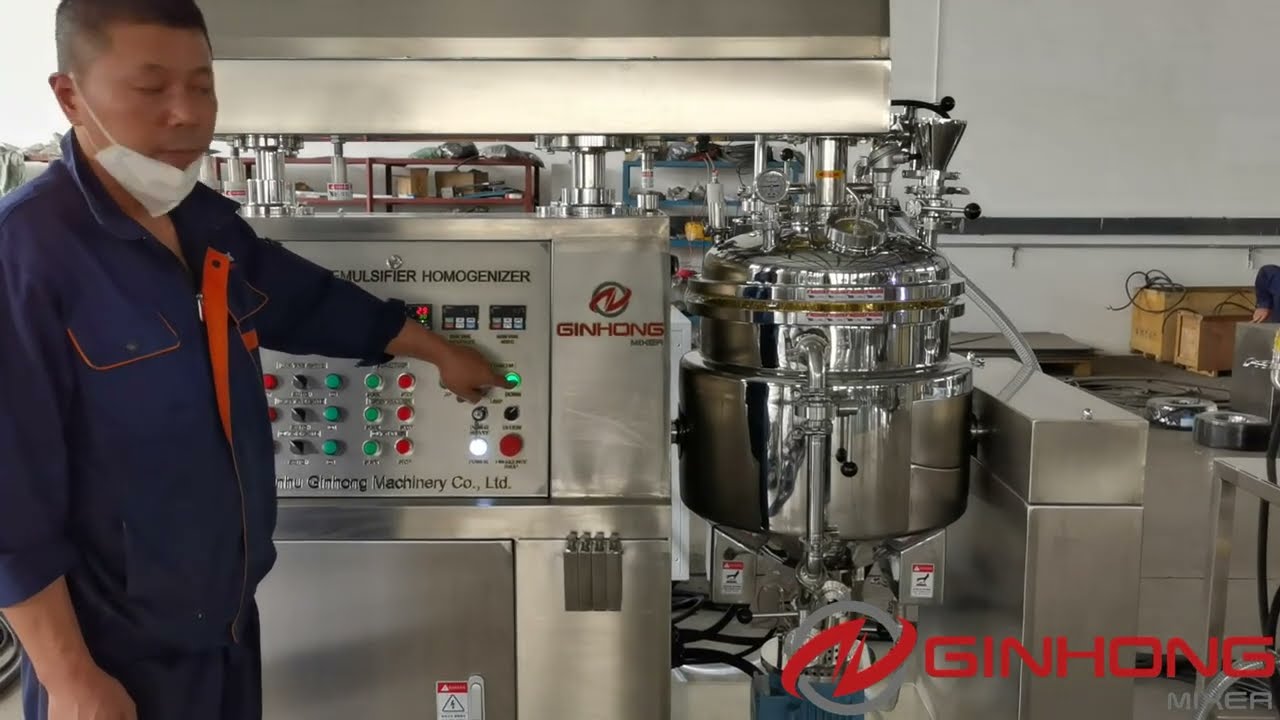

Скачать или смотреть RX-50 Vacuum Emulsifying Mixer With Chiller

https://ginhong.com/vacuum-emulsifier...

RX Vacuum Homogenizer Mixer
RX vacuum homogenizer mixer, also called vacuum homogenizer machine, It’s the most advanced homogenizer machine design from Europe and is especially suitable for making big batches of cream and emulsions with large quantity of powders.

Feature:
Working capacity from 50L to 10000L;
Suitable for cream and emulsion of 10,000~100,000cps viscosity;
Perfect particle size of 2 micrometers and evenly distributed;

RX Vacuum Homogenizer Mixer: Key Features
Working capacity from 50L to 10000L;
Suitable for cream and emulsion of 10,000~100,000cps viscosity;
Perfect particle size of 2 micrometers and evenly distributed;
External emulsifying and homogenizing by vertical type inline homogenizer with pipes;
Shorter batch time compared with RS series vacuum emulsifying mixer;
Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit;
Double temperature probes and controllers for electrical heating in main vacuum homogenizer machine;
Cooling system for mechanic seal inside the homogenizer for longer homogenizing time;
The homogenizer also works as a transfer pump for discharging finished product;
Contra mixing system of fixed impellers with holes and wall scraper;
Outer anchor agitator has pipe design for enhanced mixing and good appearance;
Variable speed for homogenizer and agitator;
Oil hydraulic lifting system for easy cleaning and maintenance;
Double jackets for heating and cooling;

Machine Characteristic
Working capacity
(L) Agitator power
(kw) Speed
(rpm) Homogenizer power
(kw) Speed
(rpm) Oil/Water tank
(L) Agitator power
(kw) Speed
(rpm)
50 0.75 0~60 4 0~3600 30/30 0.25/0.25 960
100 1.5 0~60 4 0~3600 60/60 0.37/0.37 960
150 1.5 0~60 5.5 0~3600 80/100 0.55/0.55 960
200 2.2 0~60 5.5 0~3600 100/130 0.75/0.75 960
250 2.2 0~60 5.5 0~3600 120/160 0.75/0.75 960
300 2.2 0~60 7.5 0~3600 150/200 0.75/0.75 960
350 3 0~60 7.5 0~3600 170/220 1.1/1.1 960
400 3 0~60 7.5 0~3600 190/250 1.1/1.1 960
500 4 0~60 7.5 0~3600 250/300 1.1/1.1 960
600 4 0~60 11 0~3600 280/350 1.5/1.5 960
750 5.5 0~60 11 0~3600 350/450 1.5/1.5 960
1000 5.5 0~60 15 0~3600 450/650 2.2/2.2 960
1500 7.5 0~60 18.5 0~3600 650/1000 2.2/2.2 960
2000 7.5 0~60 18.5 0~3600 800/1400 2.2/3 960

General Application
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;
Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;

Mixer Options
Fixed cover with bolts or welding to save budget;
Different slow mixing part designs available;
Frame type slow agitator for oil pre-mixer;
Mettler-Toledo load cells;
Extra openings on the vertical type inline homogenizer for adding hot and cold ingredients and powders;
Flow meter automation for feeding liquid oil and water;
Pressure vessel design for different steam pressure;
SIP is available upon request;
Different power supply acceptable;
Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc;
