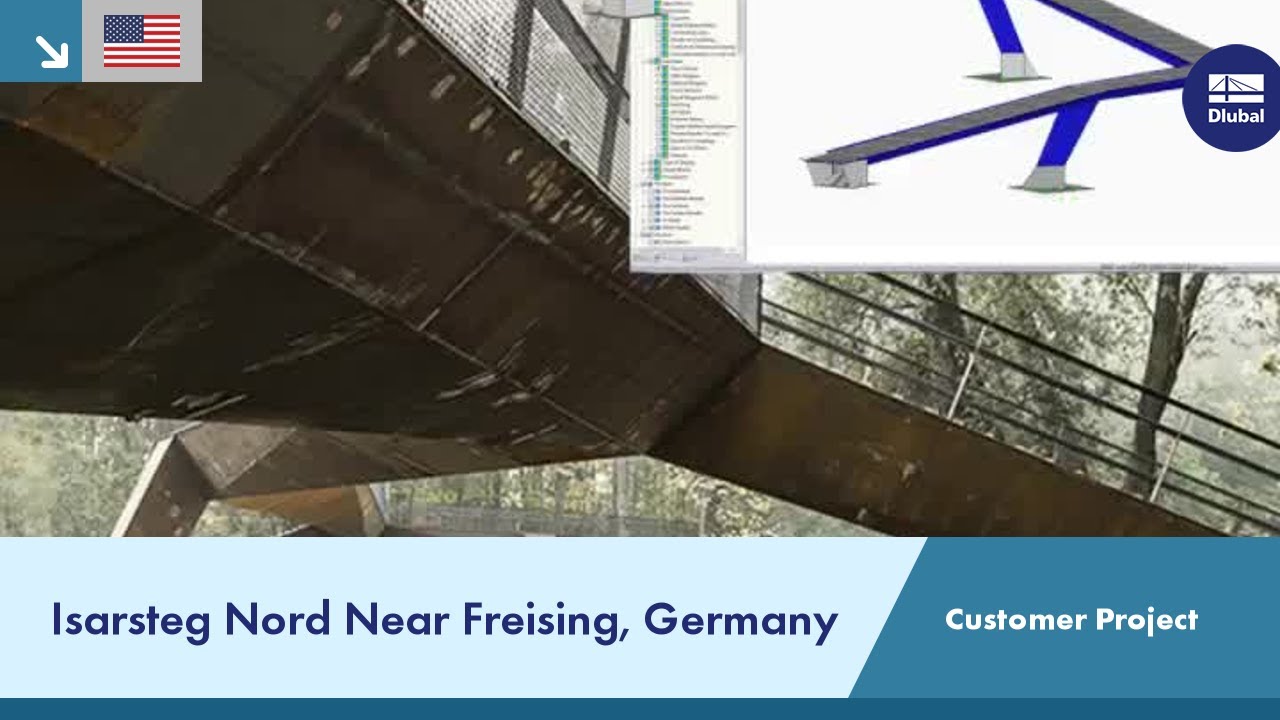

The bridge construction of Isarsteg as integrating artwork fits perfectly into the surrounding landscape. Taking nature as an example, the bridge overspans the Isar river like a branched limb. The ramps, stairs, columns and horizontal beams represent together the spatial framework. The pedestrian and cycle bridge, in total 160 m long, was made of weather-resistant structural steel.

The engineering office Bergmeister Ingenieure used the programs RFEM and SHAPE-THIN for the structural analysis of the 3D structure. The slim bridge is a rigid, statically indeterminated frame structure. All components, including the foundation and the abutment, are rigidly connected to each other.
