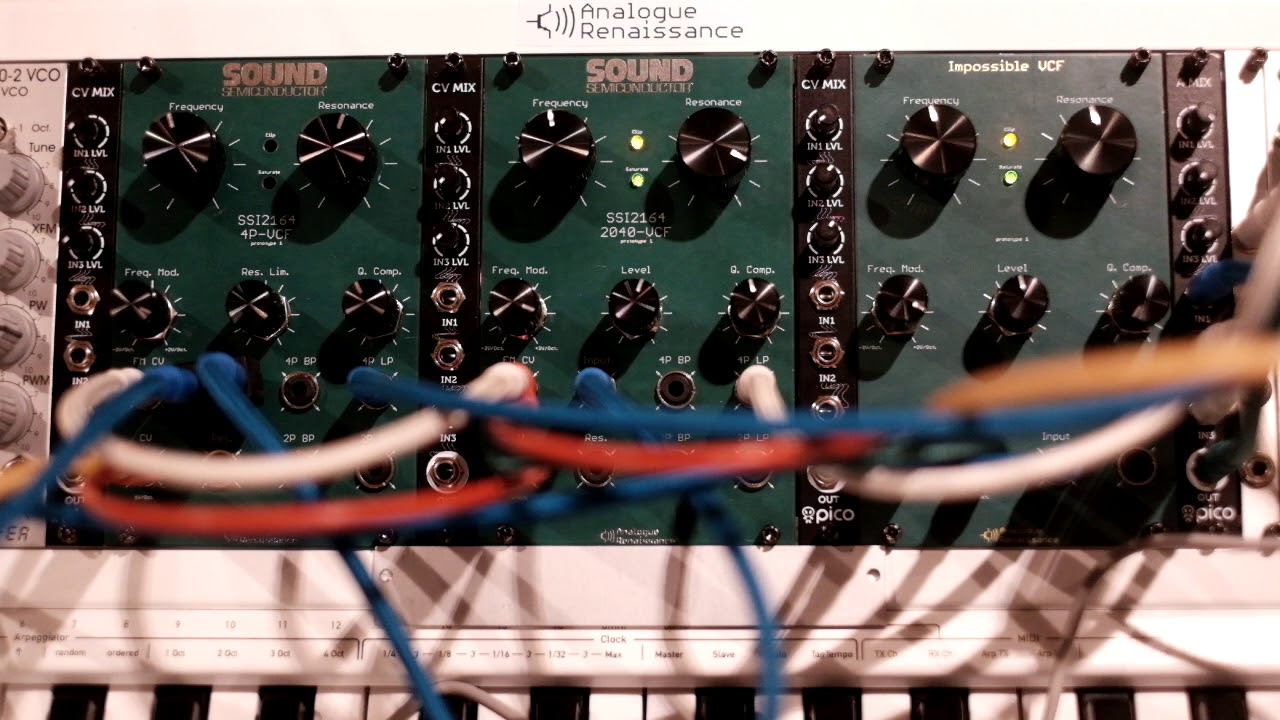

Left VCF module, one of 3 filter modules I built for writing the upcoming Sound Semiconductor Inc. application note AN701: ’Designing Voltage Controlled Filters for Synthesizers with the SSI2164’.

All 3 filters are built around the same SSI2164 quad VCA chip, but distinct in character.

This one is characterized by its lack of character and is virtually noise and distortion free. A-weighted SNR is better than 107dB and THD+N is less than 0.0066% as both these numbers are the limit of my current test equipment.

Note: at the moment these are modules are not intended as products. There sole purpose is research for the application note.

More info: www.soundsemiconductor.com & www.analoguerenaissance.com
