Lesson 4: What's inside the SDR? Designing one from first principles. Zero-IF Direct Conversion

Incoming real RF signal is r(t)

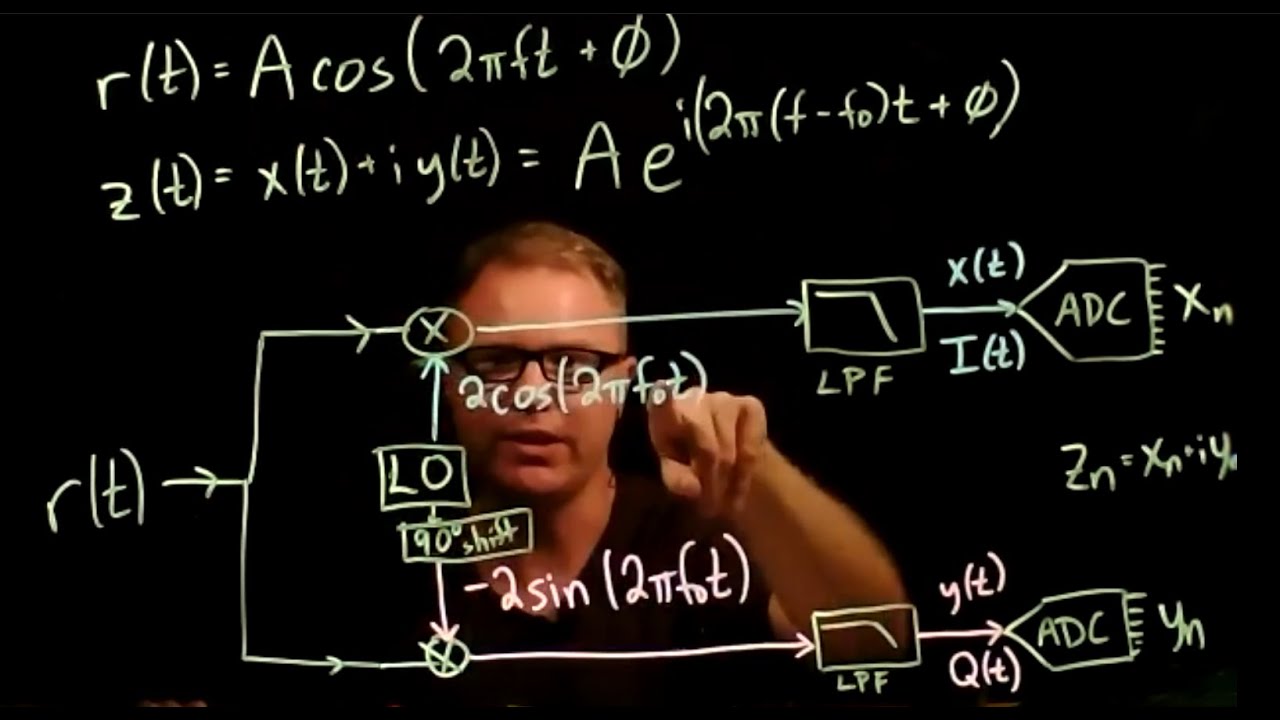

This gets split, multiplied by cos and sin, low-pass filtered, sampled, and returned as a sequence of complex numbers.

r(t) = A cos(2πft+ϕ)  turns into z(t) = A e^iϕ e^(2π(f-f0)t)

If I were to do it again, I'd draw more pictures of the RF waveform.

HW1: Do the trig identities to trace through the direct conversion architecture.

Extra Credit  : Design a transmitter by reversing the process:
Turn z(t) = A e^iϕ e^(2πft) into r(t) = A cos(2π(f+f0)t+ϕ)

https://gallicchio.github.io/learnSDR...

All GNURadio flowgraphs are at:
https://github.com/gallicchio/learnSDR
