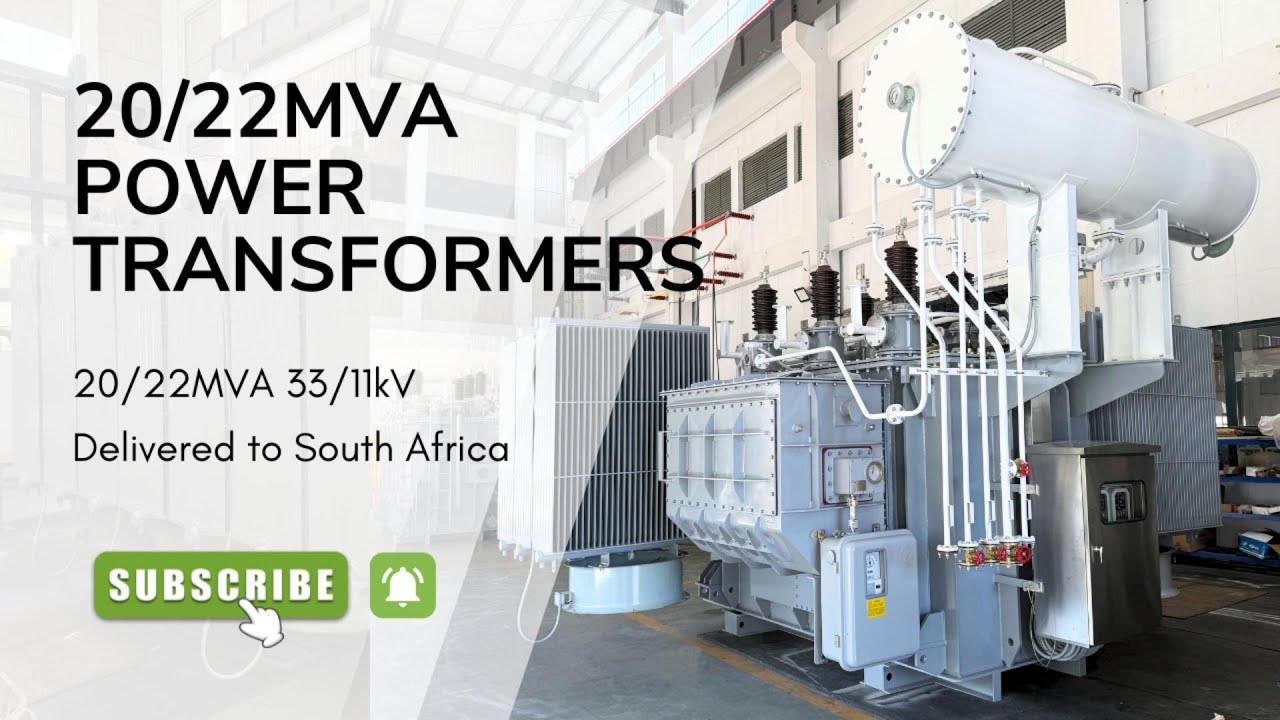

Скачать или смотреть 22 MVA 3 phase power transformer-33/11 kV | South Africa 2025

Delivery Country: South Africa 2025
Capacity: 20/22MVA
Voltage: 33/11kV
Feature： Side-mounted OLTC with AVR
Standard: IEC 60076
Rated Power: 20/22 MVA
Frequency: 50 Hz
Phase: Three
Cooling Type: ONAN/ONAF
Liquid Insulant: 80 kV dielectric strength
Primary Voltage: 33 kV
Secondary Voltage: 11 kV
Vector Group: Dyn11
Winding Material: Copper
Impedance @ 75℃: 14.29%
Tap Changer: OLTC / Vacuum
Tapping Range: ±8 × 1.25%
No Load Loss: 15 kW
On Load Loss: 124 kW
#3phase #powertransformer #electricaltransformer

📌SCOTECH
is committed to delivering creative solutions, fast response, and responsive service in the electrical industry.

🌍 Global Reach
We deliver over 12 million kVA of transformer capacity annually to customers worldwide.

🏆 Certifications
UL-listed | IEC | IEEE | CSA | ANSI | NEMA

🏭 Our Product Range Includes
• Pad-Mounted Transformers (up to 5000 kVA, 34.5 kV)
• Pole-Mounted Transformers (up to 1000 kVA, 34.5 kV)
• Distribution Transformers (up to 5000 kVA, 35 kV)
• Power Transformers (up to 100 MVA, 230 kV)
• Dry-Type Transformers (up to 10 MVA, 35 kV)
• Special Transformers: Rectifier, Traction, Furnace, and Earthing

⚡ Industries We Serve
Power grids | Mining & Metallurgy | Data Centers | Transportation

👉 Connect with SCOTECH
🌐 Website: www.scotech.com
🔗 LinkedIn: linkedin.com/company/jiangshan-scotech-electrical-co-ltd
📘 Facebook: facebook.com/SCOTECH123
📧 Email: [email protected]

📩 Have questions? Drop a comment below — we’d love to hear from you!

SCOTECH — Empowering the World！
