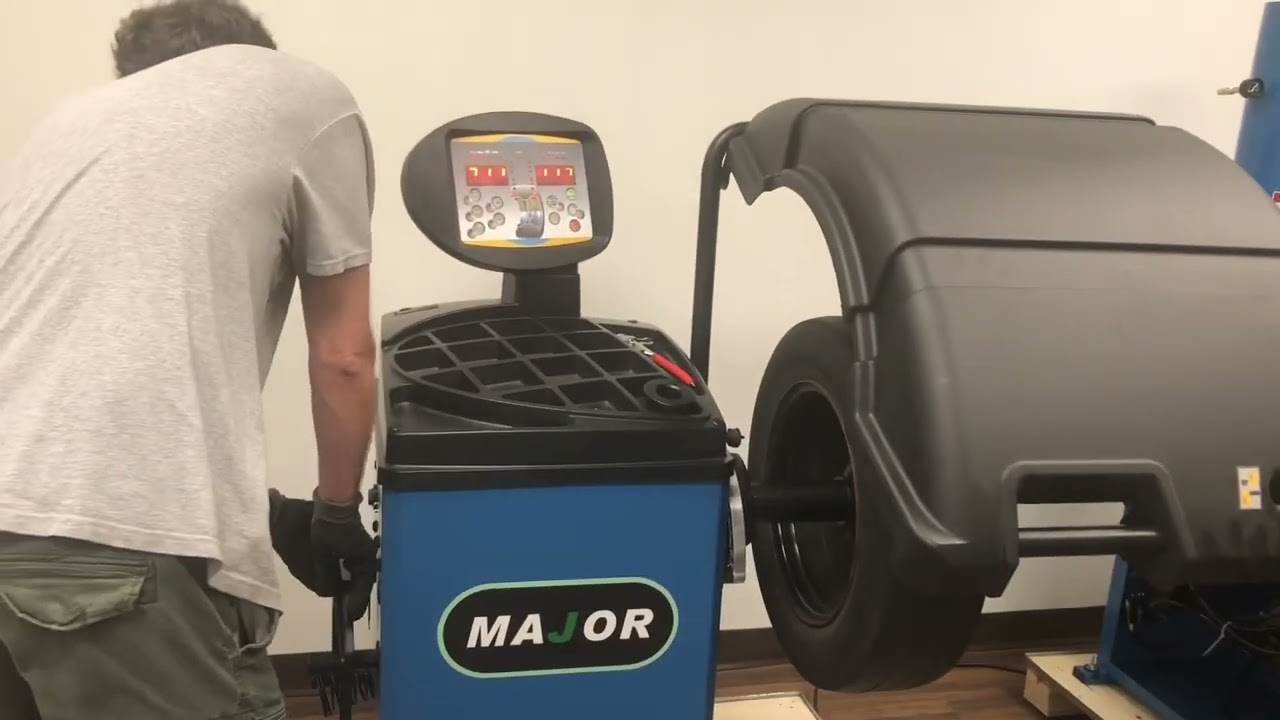

Скачать или смотреть Wheel Balancer CB-5567 | Automatic Data Entry | Steel Wheel Balancing

Prescription:

Wheel Balancer CB-5567 features our auto ruler measurement system. User simply slides ruler up to wheel rim and the CB-5567 wheel balancer will automatically enter the ruler distance to wheel rim as well as rim diameter in one quick step. Then user must simply measure and enter wheel width then close hood or press start button to start measurement cycle. A key feature with our ruler auto measure system is how easily Alum S mode wheel measurements are entered. User simply holds ruler at inner stick/clip weight position and presses enter, a beep is heard then user continues to slide ruler to outer stick weight position, hold for 2 seconds a second beep is heard. Return ruler and close hood or press start to begin measurement cycle. Exact weight positions are measured for ultimate accuracy and quick balance of the wheel assembly. For placement of stick weights, the weight is clipped into the end of the ruler and stuck into position using built in pressing block on the end of the ruler. The wheel balancer display will also count down to user pre-programmed position as ruler is extended into wheel to insure exact placement of stick weights. The wheel balancer CBL-5567 also can split and hide weights behind the spokes of aluminum wheels using the Alum S mode. The wheel balancer CB-5567 also features a laser pointer as well as foot brake for added convenience when placing weights. Balance up to 28” rim diameters as well as light truck including dual rear wheel assemblies with included light truck main shaft flange expansion ring and light truck cones included. Main shaft wheel weight capacity is 145 pounds. The wheel balancer CB-5567 also shows the static imbalance value in dynamic mode to aid the user in eliminating any vibration from the wheel assembly. If a high static imbalance is found after balancing the wheel in dynamic mode the user can at the press of a button switch to static mode and eliminate the static imbalance which avoids comebacks. Wheel assemblies can be mounted either cone inside with included spring and plastic bowl, or cone from outside wheel rim. Included accessories are: wheel weight pliers, a 4-cone car/light truck set including light truck flange adapter, rim width caliper measurement tool, quick nut for quick easy installation/removal of the wheel assembly and self calibration weight.

Patent Italian Software
LED display
LED Light
Laser indicator
Automatic data input
Static/Dynamic modes
3 standard aluminum modes/ aluminum Special mode
Motorcycle mode (optional adapter required)
Optimize function/split and hide weights behind spokes of wheel
Multi Languages
Grams and ounces, mm and inches convertible
Pedal Brake
Accessories:
4-piece cone set standard
Speed nut standard
Reverse Bowl standard
Weight pliers standard
Protective hood standard
Tower spring
Calibration weight
Specifications

Power supply/ Motor power

110-120V

Max. Wheel weight

145 lbs

Rim diameter

10″-28″

Imbalance Resolution

±1gram/0.035oz

Cycle time

6-9s

Working ambient

5°C-40°C

Noise

70db Max

Shipping weight

366 lbs

Shipping dimensions

39″x 30″x 45″
