With the imaging phased array technology, the quality of the spot weld is made "visible" as a live image (C-image) and result image (D-image, depth accurate). Behind each of these pixels of the inspection images is an A-scan. In the PHAsisNEO inspection system, for example, 729 A-scans are recorded per spot in less than one second. This makes it much easier to assess the spot weld quality, so that even operators without in-depth ultrasonic knowledge can inspect reliably and quickly.

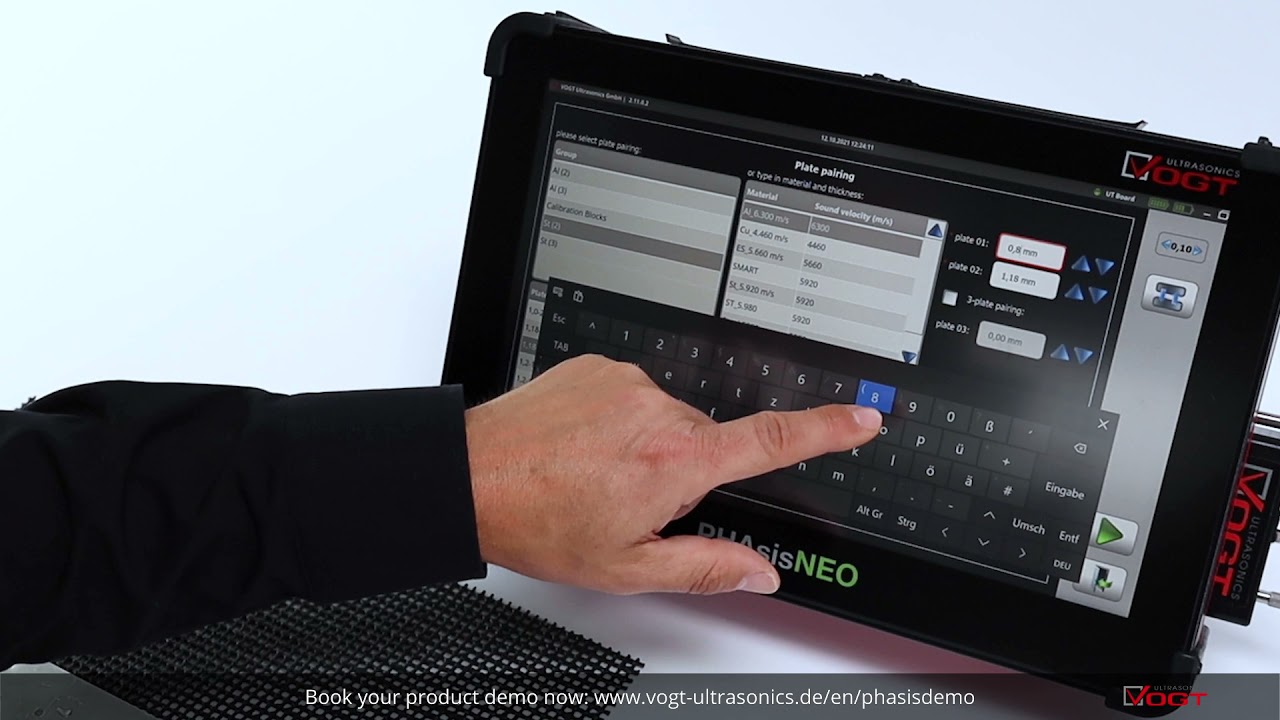

Want to quickly inspect a few spot welds? That's possible! With the "Free inspection" mode.
With just a few clicks, you can inspect spot welds with ultrasound independently of defined inspection plans thanks to stored parameter sets. If desired, the results of the free inspection can be converted into an inspection plan and into a regular inspection.

More info on...
➡️ PHAsisNEO handheld tester: https://vogt-ultrasonics.de/en/phasisneo
➡️ PHAsisBLU for robot-assisted testing: https://vogt-ultrasonics.de/en/phasisblu

www.vogt-ultrasonics.de
