Full 2D & 3D Analysis of a Secant Pile Wall with Struts and Walers in DeepEX

Looking to streamline your excavation design process from start to finish?
In this powerful new tutorial, we show how to generate and analyze a secant pile wall system with struts and walers—all within DeepEX.

Here’s what you’ll see, step by step:

🧱 2D Model Creation with the DeepEX Wizard
➡️ Instantly build your secant pile wall with struts and walers
➡️ Run Limit Equilibrium Analysis and optimize structural sections

🏗️ 3D Frame Model Generation
➡️ Define dimensions and analyze the full 3D system
➡️ View individual structural checks for each strut and waler
➡️ Get steel connection checks and project cost estimates

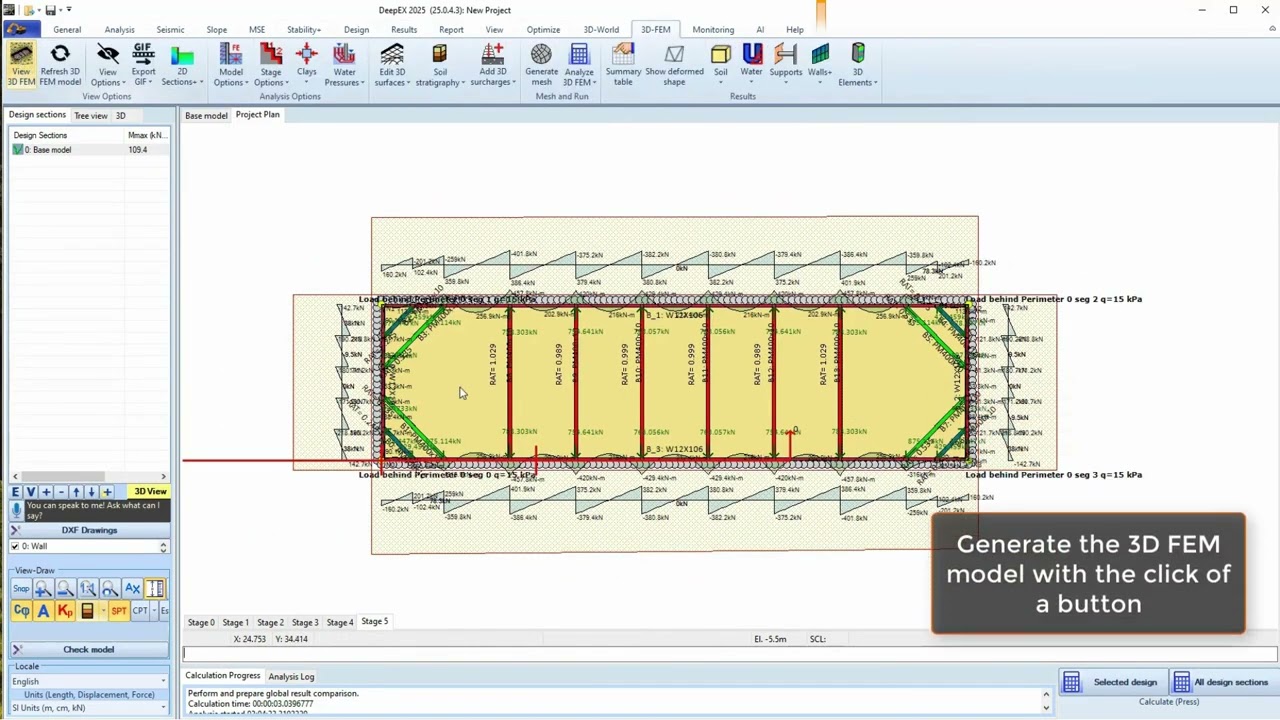

💻 3D Finite Element Model with One Click
➡️ Visualize and analyze:

Soil stresses, displacements, and settlements

Axial reactions and moments on struts and walers

Wall moments, shears, displacements, and more
➡️ All with interactive result shading directly on the model

🔎 Whether you're designing for safety, cost-efficiency, or both—this video shows how DeepEX makes advanced excavation modeling fast, visual, and accurate.

For a presentation or purchase, contact: [email protected]!
www.deepexcavation.com
you can buy directly from here: http://www.deepexcavation.com/en/buy-now

Revolutionary engineering software for geotechnical engineers!
