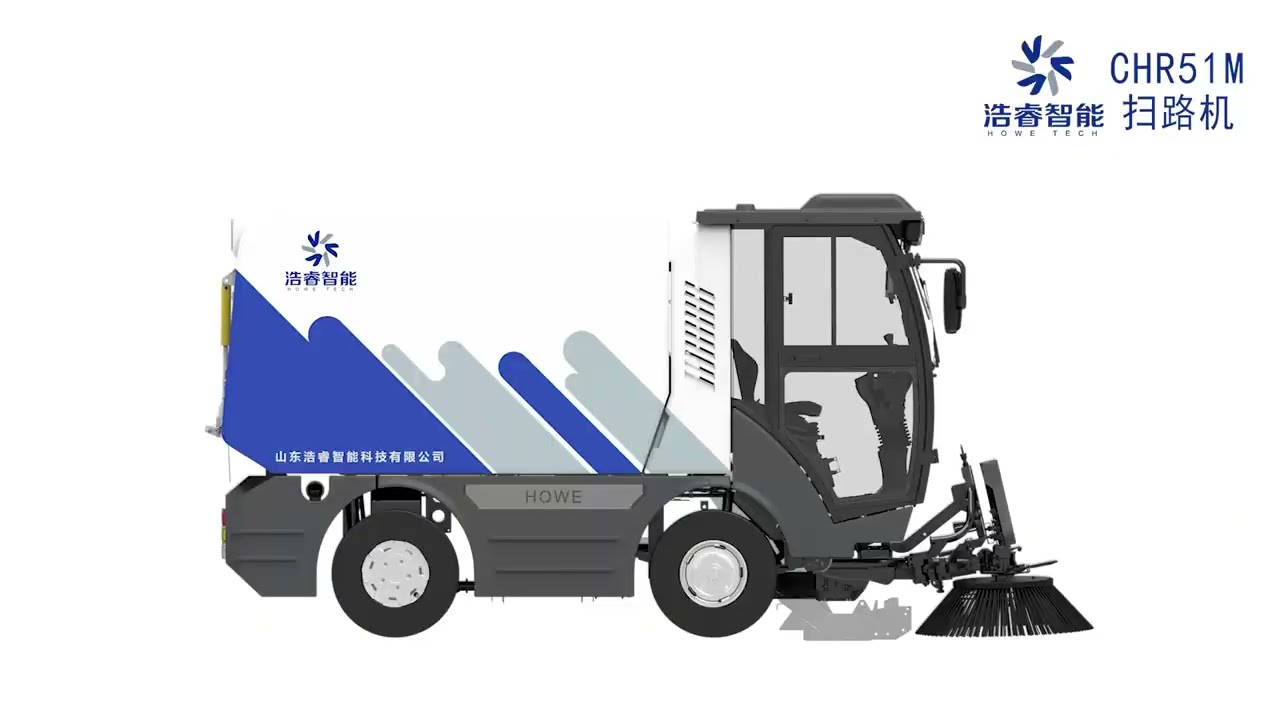

CHR51M is a multi-function road sweeper. It adopts the operation mode of suction and sweeping combined cleaning, circulating water dust suppression and circulating water spraying dust reduction. Driven by a single-engine, it integrates cleaning and walking, and all actions are completed by hydraulic transmission. It is compact in structure, small in turning radius, flexible in mobility, low in fuel consumption, low in noise and low in emission pollution. It takes urban streets, tunnels, squares, airports, docks, factories and parks as the main operation objects, and can also be used on urban outer ring roads, elevated highways and on other occasions.
Main technical parameters：
Item Specifications
Dimension: L*W*H 4330*1500*2250
Engine: ISUZU 4JB1-TCH
Power kW: 67kw / 30000rpm
G.V.W: 4050 kg
Kerb mass: 2780 kg
Garbage bin volume: 1.9 m3
Sweeping width: 1.5-2.2 m
Speed: 28 km/h
Working speed: 1 ~ 10 km/h
Min. turning radius: 5 m
Clean water tank volume: 130L
Hydraulic oil tank volume: 45 L
Cleaning efficiency: 95%
Minimum ground clearance: 120mm
Diameter of brush plate: 500mm
Diameter of sweeping brush: 900mm
Width of suction mouth: 800mm
Suction hose diameter: 200mm
